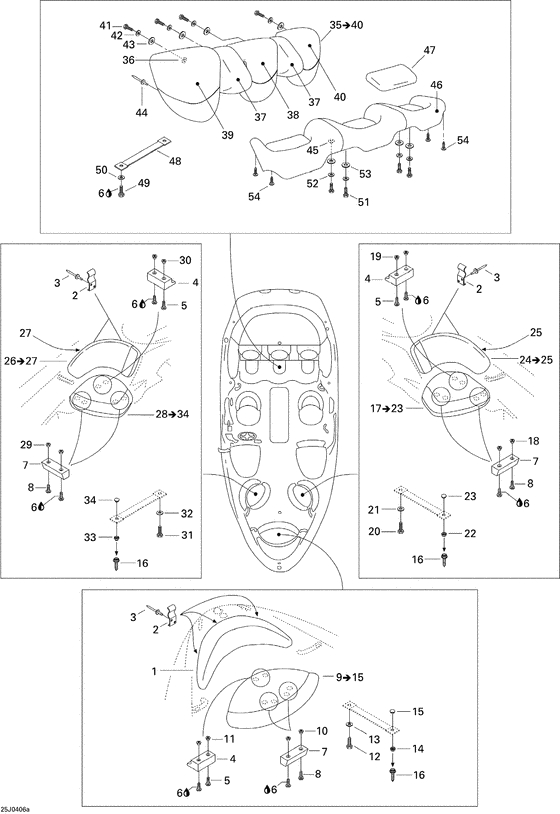

09- seat (Front and Rear) Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204612175
Doss.av.ass.*backrest-front assy.
|
204612175 |
— | ||
|
2
|
2
269000388 Support siege *support-seat |
269000388 |
US $18.33 |
||
|
3
|
3
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
4
|
4
204611940 Loq.base siege*catch-seat base |
204611940 |
US $21.47 |
||
|
5
|
5
204100039 Screw-ctsk.fl.hd.ph. 1/4x20x2 |
204100039 |
US $19.60 |
||
|
6
|
6
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
7
|
7
204611805
Loquet base*catch-seat base
|
204611805 |
— | ||
|
8
|
8
204100075
Screw-rd.hd.ph. 10-32 x 1 1/4
|
204100075 |
— | ||
|
9
|
9
204612177
Siege av.ass.*seat-front assy.
Includes 9 to 15; |
204612177 |
— | ||
|
10
|
10
204100044 Tee-nut 3-prong 10-32/ss |
204100044 |
US $16.40 |
||
|
11
|
11
204100021 Tee-nut 4-prong 1/4x20-ss |
204100021 |
US $7 |
||
|
12
|
12
204100054 Screw-tapp.ctsk.fl.hd.ph.#8 x 3/4 |
204100054 |
US $7.10 |
||
|
13
|
13
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
14
|
14
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
15
|
15
204000085 Att.press.couv.*snap-cover |
204000085 |
US $97.10 |
||
|
16
|
16
204100046
Goujon filete*stud-threaded 5/8
|
204100046 |
— | ||
|
17
|
17
204612187
Siege avant ass*seat-front assy.
Includes 17 to 23; |
204612187 |
— | ||
|
18
|
18
204100044 Tee-nut 3-prong 10-32/ss |
204100044 |
US $16.40 |
||
|
19
|
19
204100021 Tee-nut 4-prong 1/4x20-ss |
204100021 |
US $7 |
||
|
20
|
20
204100054 Screw-tapp.ctsk.fl.hd.ph.#8 x 3/4 |
204100054 |
US $7.10 |
||
|
21
|
21
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
22
|
22
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
23
|
23
204000085 Att.press.couv.*snap-cover |
204000085 |
US $97.10 |
||
|
24
|
24
204612194
Dossier ass.*backrest assy/port
Includes 24 to 25; |
204612194 |
— | ||
|
25
|
25
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
26
|
26
204612197
Dossier ass.*backrest assy/stbd.
Includes 26 to 27; |
204612197 |
— | ||
|
27
|
27
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
28
|
28
204612199
Siege avant ass*seat-front assy.
Includes 28 to 34; |
204612199 |
— | ||
|
29
|
29
204100044 Tee-nut 3-prong 10-32/ss |
204100044 |
US $16.40 |
||
|
30
|
30
204100021 Tee-nut 4-prong 1/4x20-ss |
204100021 |
US $7 |
||
|
31
|
31
204100054 Screw-tapp.ctsk.fl.hd.ph.#8 x 3/4 |
204100054 |
US $7.10 |
||
|
32
|
32
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
33
|
33
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
34
|
34
204000085 Att.press.couv.*snap-cover |
204000085 |
US $97.10 |
||
|
35
|
35
204612692
Dossier arr.*backrest-rear assy.
Includes 35 to 40; |
204612692 |
— | ||
|
36
|
36
204100005
Rondel.ancrage *washer-anchor
|
204100005 |
— | ||
|
37
|
37
204612699
Housse bosse*cover-bump
|
204612699 |
— | ||
|
38
|
38
204612205
Housse doss.*cover-backrest
|
204612205 |
— | ||
|
39
|
39
204612206
Housse doss.*cover-backrest
|
204612206 |
— | ||
|
40
|
40
204612207
Housse doss.*cover-backrest
|
204612207 |
— | ||
|
41
|
41
207364060 A9650022357ap din.933a2 scotch grip |
207364060 |
US $1.96 |
||
|
42
|
42
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
43
|
43
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
44
|
44
293150065 Rivet *rivet(tec-plus) |
293150065 |
US $20.10 |
||
|
45
|
45
204100005
Rondel.ancrage *washer-anchor
|
204100005 |
— | ||
|
46
|
46
204612209
Houss.siege*cover-seat/rear
|
204612209 |
— | ||
|
47
|
47
204612210
Couss.siege*cushion-seat assy.
|
204612210 |
— | ||
|
48
|
48
204612212
Courroie siege*strap-rear seat
|
204612212 |
— | ||
|
49
|
49
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
50
|
50
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
51
|
51
207364060 A9650022357ap din.933a2 scotch grip |
207364060 |
US $1.96 |
||
|
52
|
52
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
53
|
53
204100139 Rondelle *washer-fender/s.s. |
204100139 |
US $1.79 |
||
|
54
|
54
293730021 Dard *dart |
293730021 |
US $97.90 |
