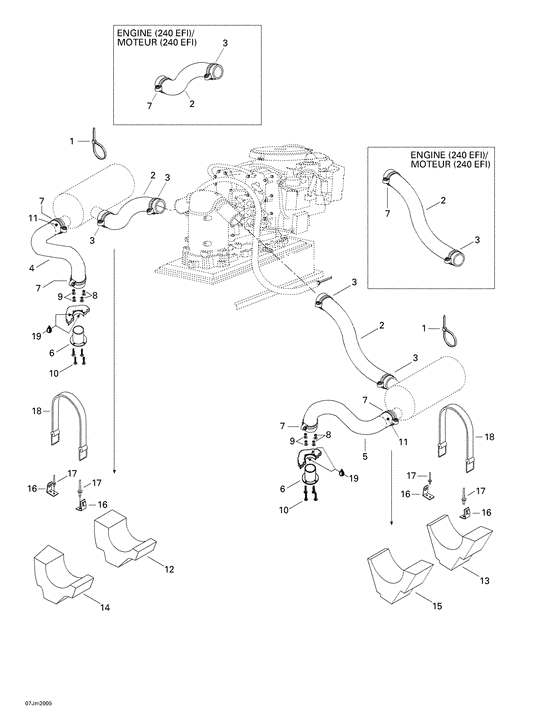

01- exhaust system Diagram Bombardier Challenger
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204340216
Echapp.flexib. *exhaust-flexible
CHALLENGER 2000 (5694).; |
204340216 |
— | ||
| replacement | |||||
|
|
204340294 Echapp.flexib. *exhaust-flexibleCHALLENGER 2000 (5694).; |
204340294 |
US $90.73 |
||
|
1
|
1
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
2
|
2
204340185
Echapp.flexib. *exhaust-flexible
CHALLENGER 2000 (5695).; |
204340185 |
— | ||
|
3
|
3
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
4
|
4
204340227
Boyau echapp. *hose-exhaust/port
|
204340227 |
— | ||
|
5
|
5
204340228
Boyau echapp. *hose-exhaust/stbd.
|
204340228 |
— | ||
|
6
|
6
204340252
Sortie echapp. *outlet-exh.assy.
|
204340252 |
— | ||
|
7
|
7
293650112 Bride serrage *clamp-tridon |
293650112 |
US $14.52 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
10
|
10
208663560 Screw-pan hd.ph.din.7985a-a2 |
208663560 |
US $15.80 |
||
|
11
|
11
204340251
Espace.echapp. *spacer-exhaust
CHALLENGER 2000 (5694).; |
204340251 |
— | ||
|
12
|
12
204340218
Support silenc.*support-muffler
|
204340218 |
— | ||
|
13
|
13
204340219
Support silenc.*support-muffler
|
204340219 |
— | ||
|
14
|
14
204340220
Support silenc.*support-muffler
|
204340220 |
— | ||
|
15
|
15
204340221
Support silenc.*support-muffler
|
204340221 |
— | ||
|
16
|
16
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
17
|
17
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
18
|
18
293850022 Sangle res.huil*strap-oil tank |
293850022 |
US $41.23 |
||
|
19
|
19
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
19
|
19
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
