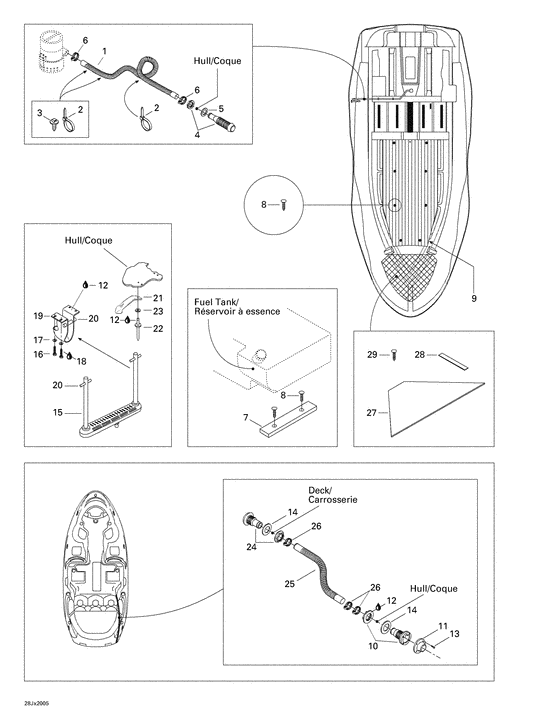

09- body and accessories 2 Diagram Bombardier Challenger
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204050299
Boyau bilgeflex 3/4"
|
204050299 |
— | ||
|
2
|
2
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
3
|
3
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
4
|
4
293710015 Raccord *fitting |
293710015 |
US $13.60 |
||
|
5
|
5
293250006 Joint etanche *gasket |
293250006 |
US $36.55 |
||
|
6
|
6
293650016 Bride serrage *clamp-tridon |
293650016 |
US $61.10 |
||
|
7
|
7
293830021
Tampon caout. *pad-rubber
|
293830021 |
— | ||
|
8
|
8
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
9
|
9
204060482
Tapis-porte ski*carpet-ski door
|
204060482 |
— | ||
|
10
|
10
204060071 Passe-coque *hull-thru fitt |
204060071 |
US $46.89 |
||
|
11
|
11
204060188 Soupape dalot *valve-scupper |
204060188 |
US $87.64 |
||
|
12
|
12
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
12
|
12
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
13
|
13
211000180 Screw-plastite pan hd.ph |
211000180 |
US $19.45 |
||
|
14
|
14
293250039
Joint etanche *gasket
|
293250039 |
— | ||
|
15
|
15
204060187 Echelle *ladder up-1a |
204060187 |
US $159.09 |
||
|
16
|
16
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
17
|
17
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
18
|
18
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
19
|
19
204060141 Attache en "u" *bracket-"u |
204060141 |
US $48.93 |
||
|
20
|
20
211300021 Goupille ressor*pin-roll |
211300021 |
US $14.77 |
||
|
21
|
21
570027100 Loquet de capot*latch-hood |
570027100 |
from US $12.92 |
||
|
22
|
22
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
23
|
23
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
24
|
24
293710060 Raccord *fitting |
293710060 |
US $23.07 |
||
|
25
|
25
204070560 Boyau bilgeflex*hose-bilgeflex |
204070560 |
US $11.66 |
||
|
26
|
26
293650074 Bride serrage *clamp-norma |
293650074 |
US $14.67 |
||
|
27
|
27
204060564
Tapis-rangement*carpet-storage
|
204060564 |
— | ||
|
28
|
28
204050234
Moulure-rangem.*trim-anchor stor.
|
204050234 |
— | ||
|
29
|
29
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
