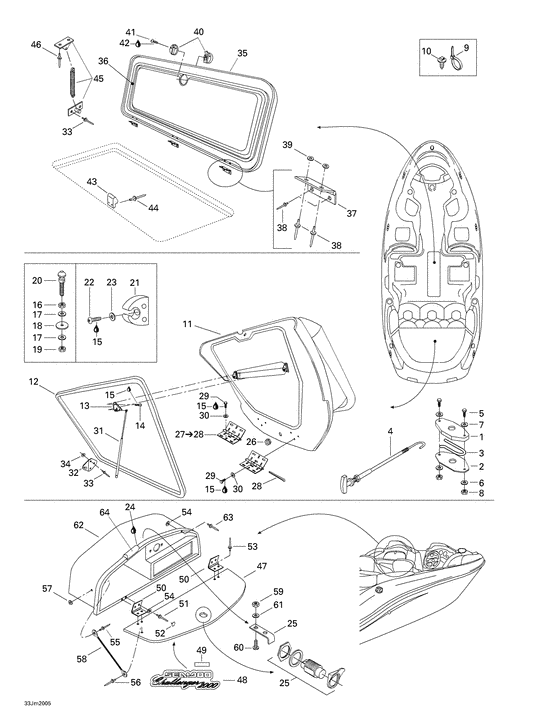

09- body and accessories 3 Diagram Bombardier Challenger
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204070178
Cylindre retenu*cylinder-retainer
|
204070178 |
— | ||
| replacement | |||||
|
|
204072013
Amortisseur*shock-gas
|
204072013 |
— | ||
|
|
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
1
|
1
204070037 Base loquet *base-latch |
204070037 |
US $16.76 |
||
|
2
|
2
204070036 Couv.loquet *cover-latch |
204070036 |
US $20.96 |
||
|
3
|
3
204070038 Ressort *spring |
204070038 |
US $73.35 |
||
|
4
|
4
204070049 Cable.loqu.mot.*cable-latch |
204070049 |
US $137.65 |
||
|
5
|
5
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
6
|
6
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
7
|
7
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
10
|
10
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
11
|
11
204070686
Couv.moteur *cover-engine
|
204070686 |
— | ||
|
12
|
12
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
12
|
12
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
13
|
13
291000654
Supp.cyl.couv. *supp-cyl.cover
|
291000654 |
— | ||
|
14
|
14
207151660 Screw-hex.cap din.933a2 |
207151660 |
US $9.80 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
16
|
16
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
17
|
17
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
18
|
18
291000628 Rondelle caout.*washer-rubber |
291000628 |
US $11.15 |
||
|
19
|
19
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
20
|
20
204700001
Ergot d ancrage*stud-latch
|
204700001 |
— | ||
|
21
|
21
291000642 Support de tige*support-pole |
291000642 |
US $66.06 |
||
|
22
|
22
208642560 Screw-pan hd.ph.din.7985a-a2 |
208642560 |
US $9.80 |
||
|
23
|
23
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
24
|
24
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
25
|
25
204070122 Ens.loquets *kit-latches |
204070122 |
US $323.29 |
||
|
26
|
26
293720017 Passe-fils *grommet |
293720017 |
US $10.47 |
||
|
27
|
27
204070127 Charniere *hingeIncludes 27 - 28.; |
204070127 |
US $68.29 |
||
|
28
|
28
204070205 Goupille fendue*pin-cotter |
204070205 |
US $17.75 |
||
|
29
|
29
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
30
|
30
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
31
|
31
204070218
Cylindre retenu*cylinder-retainer
|
204070218 |
— | ||
|
32
|
32
204070065 Supp.cyl.carr. *supp-cyl.body |
204070065 |
US $28.31 |
||
|
33
|
33
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
34
|
34
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
35
|
35
204070718
Couv.central *cover-center
|
204070718 |
— | ||
|
36
|
36
293200032 Anneau etanche *seal-tray |
293200032 |
US $35.67 |
||
|
37
|
37
291000538
Charniere *hinge
|
291000538 |
— | ||
|
38
|
38
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
39
|
39
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
40
|
40
204070063
Verrou blanc *latch-white
|
204070063 |
— | ||
|
41
|
41
208651660 Screw-pan hd.ph.din.7985a-a2 |
208651660 |
US $10.65 |
||
|
42
|
42
293800040 Loctite 425 *loctite-425 |
293800040 |
US $61.15 |
||
|
43
|
43
204070050 Attache verrou *bracket-latch |
204070050 |
US $11.49 |
||
|
44
|
44
293150029 Rivet-pop 5/32 *rivet-pop 5/32 |
293150029 |
US $19.60 |
||
|
45
|
45
204000071 Ressort siege *spring-seat |
204000071 |
US $77.49 |
||
|
46
|
46
204000081 Rivet-pop 3/16 *rivet-pop 3/16 |
204000081 |
US $19.20 |
||
|
47
|
47
204070594
Porte coff.gant*door-tray
|
204070594 |
— | ||
|
48
|
48
204900583
Embleme-chall. *emblem-chall.2000
|
204900583 |
— | ||
|
49
|
49
204070268
Ruban-doub.face*tape-double sided
|
204070268 |
— | ||
|
50
|
50
269700031
Charniere *hinge
|
269700031 |
— | ||
|
51
|
51
293150023 Rivet-pop 1/8 *rivet-pop 1/8 |
293150023 |
US $19.60 |
||
|
52
|
52
204070077 Capuchon press.*cap-snap |
204070077 |
US $19.45 |
||
|
53
|
53
293150063 Rivet pop 1/8 *rivet-pop 1/8 |
293150063 |
US $19.60 |
||
|
54
|
54
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
55
|
55
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
56
|
56
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
57
|
57
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
58
|
58
204070116
Cable retenue *cable-retainer
|
204070116 |
— | ||
| replacement | |||||
|
58
|
58
204071498 Cable retenue*cable-retainer |
204071498 |
US $44.83 |
||
|
59
|
59
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
60
|
60
208641260 Screw-pan hd.ph.din.7985a-a2 |
208641260 |
US $9.80 |
||
|
61
|
61
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
62
|
62
204070392
Boite a gant *box-glove
|
204070392 |
— | ||
|
63
|
63
293150036 Rivet-pop 1/8 *rivet-pop 1/8 |
293150036 |
US $0.37 |
||
|
64
|
64
204070115
Neoprene *neoprene
|
204070115 |
— | ||
