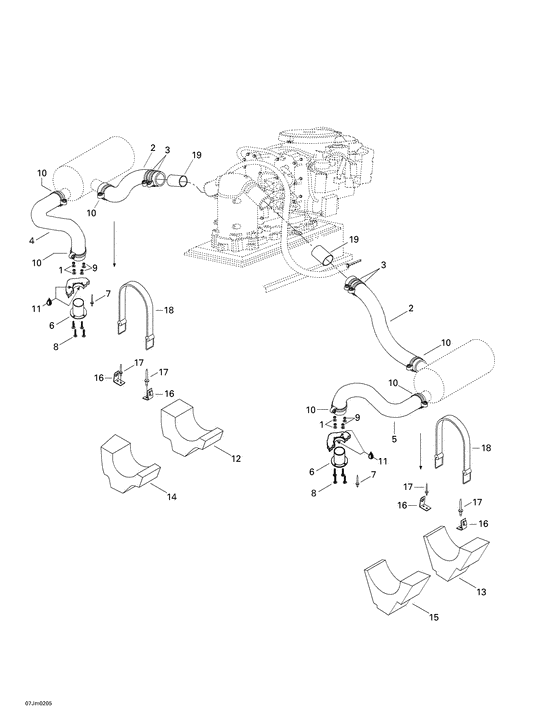

01- exhaust system Diagram Bombardier Challenger
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
2
|
2
204340294 Echapp.flexib. *exhaust-flexible |
204340294 |
US $90.73 |
||
|
3
|
3
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
4
|
4
204340290
Boyau echapp. *hose-exhaust/port
|
204340290 |
— | ||
|
5
|
5
204340291
Boyau echapp. *hose-exhaust/stbd.
|
204340291 |
— | ||
|
6
|
6
204340322
Sortie echapp. *outlet-exhaust assy.
Includes 6 - 8.; |
204340322 |
— | ||
| replacements | |||||
|
6
|
6
204340229
Sortie echapp. *outlet-exhaust/3
Includes 6 - 8.; |
204340229 |
— | ||
|
6
|
6
204340253
Ext.sort.echap.*exten-outlet/3
Includes 6 - 8.; |
204340253 |
— | ||
|
6
|
6
208663560 Screw-pan hd.ph.din.7985a-a2Includes 6 - 8.; |
208663560 |
US $15.80 |
||
|
6
|
6
293150043 Rivet-pop 3/16 *rivet-pop 3/16Includes 6 - 8.; |
293150043 |
US $13.60 |
||
|
7
|
7
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
8
|
8
208663560 Screw-pan hd.ph.din.7985a-a2 |
208663560 |
US $15.80 |
||
|
9
|
9
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
10
|
10
293650112 Bride serrage *clamp-tridon |
293650112 |
US $14.52 |
||
|
11
|
11
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
12
|
12
204340218
Support silenc.*support-muffler
|
204340218 |
— | ||
|
13
|
13
204340219
Support silenc.*support-muffler
|
204340219 |
— | ||
|
14
|
14
204340220
Support silenc.*support-muffler
|
204340220 |
— | ||
|
15
|
15
204340221
Support silenc.*support-muffler
|
204340221 |
— | ||
|
16
|
16
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
17
|
17
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
18
|
18
293850022 Sangle res.huil*strap-oil tank |
293850022 |
US $41.23 |
||
|
19
|
19
204340326
Ajout-boyau *insert-exh.hose
|
204340326 |
— | ||
