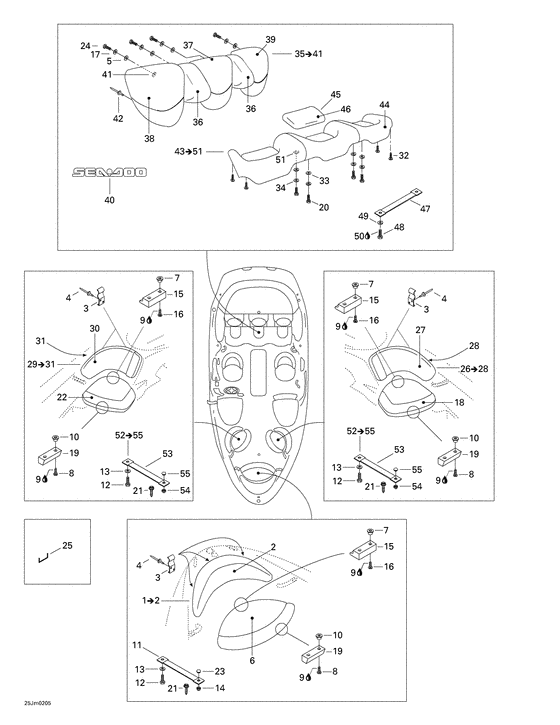

09- seat (front And Rear) Diagram Bombardier Challenger
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204610687
Dossier av.ass.*backrest-front
Includes 1 - 2.; |
204610687 |
— | ||
|
2
|
2
204610688
Housse doss.av.*cover-backrest
|
204610688 |
— | ||
|
3
|
3
269000388 Support siege *support-seat |
269000388 |
US $18.33 |
||
|
4
|
4
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
5
|
5
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
6
|
6
204610989
Front seat ass'y
|
204610989 |
— | ||
|
7
|
7
204100021 Tee-nut 4-prong 1/4x20-ss |
204100021 |
US $7 |
||
|
8
|
8
204100075
Screw-rd.hd.ph. 10-32 x 1 1/4
|
204100075 |
— | ||
|
9
|
9
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
10
|
10
204100044 Tee-nut 3-prong 10-32/ss |
204100044 |
US $16.40 |
||
|
11
|
11
204611520
Courroie *strap-pull
|
204611520 |
— | ||
|
12
|
12
204100054 Screw-tapp.ctsk.fl.hd.ph.#8 x 3/4 |
204100054 |
US $7.10 |
||
|
13
|
13
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
14
|
14
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
15
|
15
204611940 Loq.base siege*catch-seat base |
204611940 |
US $21.47 |
||
|
16
|
16
204100039 Screw-ctsk.fl.hd.ph. 1/4x20x2 |
204100039 |
US $19.60 |
||
|
17
|
17
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
18
|
18
204610964
Lh front seat cover
|
204610964 |
— | ||
|
19
|
19
204611805
Loquet base*catch-seat base
|
204611805 |
— | ||
|
20
|
20
207364560 Screw-hex.cap din.933a2 scotch grip |
207364560 |
US $24.30 |
||
|
21
|
21
204100046
Goujon filete*stud-threaded 5/8
|
204100046 |
— | ||
|
22
|
22
204610971
Rh front seat cover
|
204610971 |
— | ||
|
23
|
23
204000085 Att.press.couv.*snap-cover |
204000085 |
US $97.10 |
||
|
24
|
24
207364060 A9650022357ap din.933a2 scotch grip |
207364060 |
US $1.96 |
||
|
25
|
25
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
|
26
|
26
204610947
Dossier ass. *backrest assy.
Includes 26 - 28.; |
204610947 |
— | ||
|
27
|
27
204610954
Housse dossier *cover-backrest
|
204610954 |
— | ||
|
28
|
28
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
28
|
28
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
29
|
29
204610948
Dossier ass. *backrest assy.
Includes 29 - 31.; |
204610948 |
— | ||
|
30
|
30
204610957
Housse dossier *cover-backrest
|
204610957 |
— | ||
|
31
|
31
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
31
|
31
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
32
|
32
293730021 Dard *dart |
293730021 |
US $97.90 |
||
|
33
|
33
204100006
Rondelle *washer-fender
|
204100006 |
— | ||
| replacement | |||||
|
33
|
33
204100139 Rondelle *washer-fender/s.s. |
204100139 |
US $1.79 |
||
|
34
|
34
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
35
|
35
204611694
Dossier arriere*backrest-rear
Includes 35 - 41.; |
204611694 |
— | ||
|
36
|
36
204610696
Housse bosse *cover-bump
|
204610696 |
— | ||
|
37
|
37
204610697
Hous.doss.cent.*cover-backrest
|
204610697 |
— | ||
|
38
|
38
204610698
Housse doss.arr*cover-backrest
|
204610698 |
— | ||
|
39
|
39
204610699
Housse doss.arr*cover-backrest
|
204610699 |
— | ||
|
40
|
40
204901063
Logo sea-doo
|
204901063 |
— | ||
|
41
|
41
204100005
Rondel.ancrage *washer-anchor
|
204100005 |
— | ||
|
42
|
42
293150065 Rivet *rivet(tec-plus) |
293150065 |
US $20.10 |
||
|
43
|
43
204610700
Siege arr.assy.*seat-rear assy.
Includes 43 - 51.; |
204610700 |
— | ||
|
44
|
44
204610701
Housse sieg.arr*cover-seat/rear
|
204610701 |
— | ||
|
47
|
47
204610703
Courroie siege *strap-rear seat
|
204610703 |
— | ||
|
48
|
48
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
49
|
49
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
50
|
50
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
51
|
51
204100005
Rondel.ancrage *washer-anchor
|
204100005 |
— | ||
|
52
|
52
204611938
Courr.reten*strap-retaining assy.
Includes 52 - 55.; |
204611938 |
— | ||
|
53
|
53
204611520
Courroie *strap-pull
|
204611520 |
— | ||
|
54
|
54
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
55
|
55
204000085 Att.press.couv.*snap-cover |
204000085 |
US $97.10 |
||
