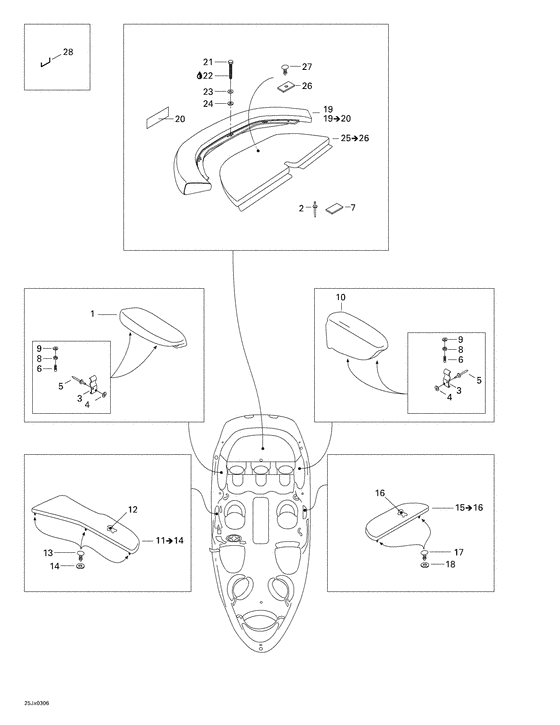

09- seat (platform And Armrest) Diagram Bombardier Challenger
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204611299
Velcro *velcro
|
204611299 |
— | ||
|
|
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
1
|
1
204612213
Appui-bras ass.*armrest-back assy.
|
204612213 |
— | ||
|
2
|
2
204130050 Rivet-pop 3/16 *rivet-pop 3/16 |
204130050 |
US $2.52 |
||
|
3
|
3
269000388 Support siege *support-seat |
269000388 |
US $18.33 |
||
|
4
|
4
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
5
|
5
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
6
|
6
206254069
Screw-set socket din.913a2
|
206254069 |
— | ||
|
7
|
7
204611298
Velcro *velcro
|
204611298 |
— | ||
|
8
|
8
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
9
|
9
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
10
|
10
204612215
Appui-bras ass.*armrest-back assy.
|
204612215 |
— | ||
|
11
|
11
204612217
Accoudoir ass.*elbowrest assy/stbd.
Includes 11 - 14.; |
204612217 |
— | ||
|
12
|
12
204610121
Mousse neoprene*foam-neoprene
|
204610121 |
— | ||
|
13
|
13
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
14
|
14
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
15
|
15
204612219
Accoudoir ass.*elbowrest assy/port
Includes 15 - 16.; |
204612219 |
— | ||
|
16
|
16
204610123
Mousse neoprene*foam-neoprene
|
204610123 |
— | ||
|
17
|
17
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
18
|
18
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
19
|
19
204612238
Aileron ass.*spoiler-assy.
|
204612238 |
— | ||
|
19
|
19
204612233
Aileron ass.*spoiler-assy.
Includes 19 - 20.; |
204612233 |
— | ||
|
20
|
20
204610184
Cache-agrafe *cover-staple
|
204610184 |
— | ||
|
21
|
21
207362560 Screw-hex.cap din.933a2 s.grip |
207362560 |
US $19 |
||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
23
|
23
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
24
|
24
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
25
|
25
204612235
Platef.ass.*platform assy.
Includes 25 - 26.; |
204612235 |
— | ||
|
26
|
26
204610194
Courroie *strap
|
204610194 |
— | ||
|
27
|
27
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
28
|
28
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— |
