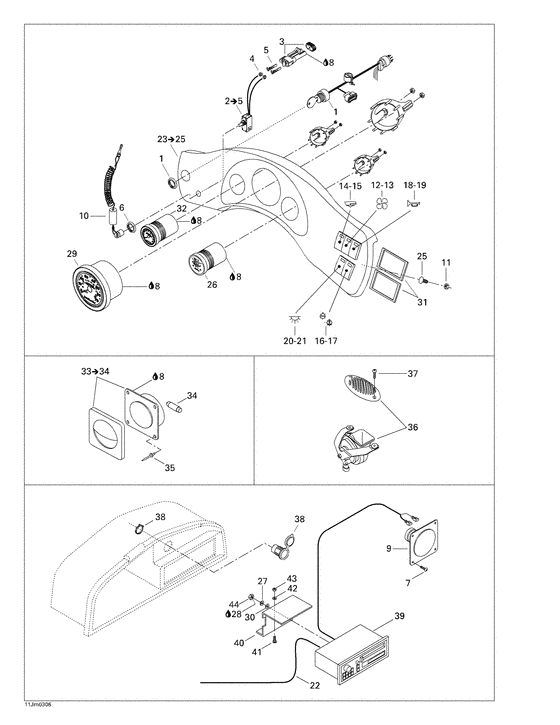

10- electrical accessories 1 Diagram Bombardier Challenger
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
204470463
Inter.urgence *switch-safety
Includes 2 - 5.; |
204470463 |
— | ||
| replacement | |||||
|
2
|
2
204470867
Inter.urgence*switch-safety
Includes 2 - 5.; |
204470867 |
— | ||
|
3
|
3
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
4
|
4
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
5
|
5
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
6
|
6
278000099 Ecrou securite *nut-saf.switch |
278000099 |
US $91.30 |
||
|
7
|
7
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
8
|
8
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
9
|
9
204470378
Haut parleur *speaker
|
204470378 |
— | ||
|
10
|
10
278001431 Cordon securite*lanyard-safety |
278001431 |
US $52.63 |
||
|
11
|
11
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
12
|
12
204470011
Inter.vent. *switch-fan
Includes 12 - 13.; |
204470011 |
— | ||
|
13
|
13
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
14
|
14
204470099
Inter.bilge. *switch-bilge
Includes 14 - 15.; |
204470099 |
— | ||
|
15
|
15
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
16
|
16
204470100
Inter.lumiere *switch-light
Includes 16 - 17.; |
204470100 |
— | ||
|
17
|
17
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
18
|
18
204470101
Inter.klaxon *switch-horn
Includes 18 - 19.; |
204470101 |
— | ||
|
19
|
19
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
20
|
20
204470102
Inter.courtois.*switch-courtesy
Includes 20 - 21.; |
204470102 |
— | ||
|
21
|
21
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
22
|
22
204470380
Antenne *antenna
|
204470380 |
— | ||
|
23
|
23
204470767
Fascia ass. *fascia assy.
Includes 23 - 25.; |
204470767 |
— | ||
|
24
|
24
204070268
Ruban-doub.face*tape-double sided
|
204070268 |
— | ||
|
25
|
25
293730014 Dard noir *dart-black |
293730014 |
US $13.40 |
||
|
26
|
26
204470806
Cadran ess.*gauge-fuel/oil
|
204470806 |
— | ||
|
27
|
27
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
204470805
Cadran vites.*speedometer
|
204470805 |
— | ||
| replacement | |||||
|
29
|
29
204470961 Cadran vites.*speedometer |
204470961 |
US $425.29 |
||
|
30
|
30
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
31
|
31
204470343 Plaque blocage *plate-locking |
204470343 |
US $19.92 |
||
|
32
|
32
204470807
Cadran tachy.*gauge-tachometer
|
204470807 |
— | ||
| replacement | |||||
|
32
|
32
204470962
Cadran tachy.*gauge-tachometer
|
204470962 |
— | ||
|
33
|
33
204470026 Lum.courtoisie *light-courtesyIncludes 33 - 34.; |
204470026 |
US $39.88 |
||
|
34
|
34
204470081 Ampoule *bulb |
204470081 |
US $13.21 |
||
|
35
|
35
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
36
|
36
204470801
Klaxon *horn
|
204470801 |
— | ||
|
37
|
37
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
38
|
38
204470716
Prise 12 volt *jack-12 volt
|
204470716 |
— | ||
| replacement | |||||
|
38
|
38
204470907
R+ceptacle*receptacle-12 volt
|
204470907 |
— | ||
|
39
|
39
204470682
Radio disq.com.*radio-comp.disk
|
204470682 |
— | ||
| replacement | |||||
|
39
|
39
204470869
Radio disq.com.*radio-comp.disk
|
204470869 |
— | ||
|
40
|
40
204470688
Support-radio *support-radio
|
204470688 |
— | ||
|
41
|
41
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
42
|
42
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
43
|
43
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
44
|
44
232051600 Nut-hexagonal din.934a2 |
232051600 |
US $7.40 |
||
