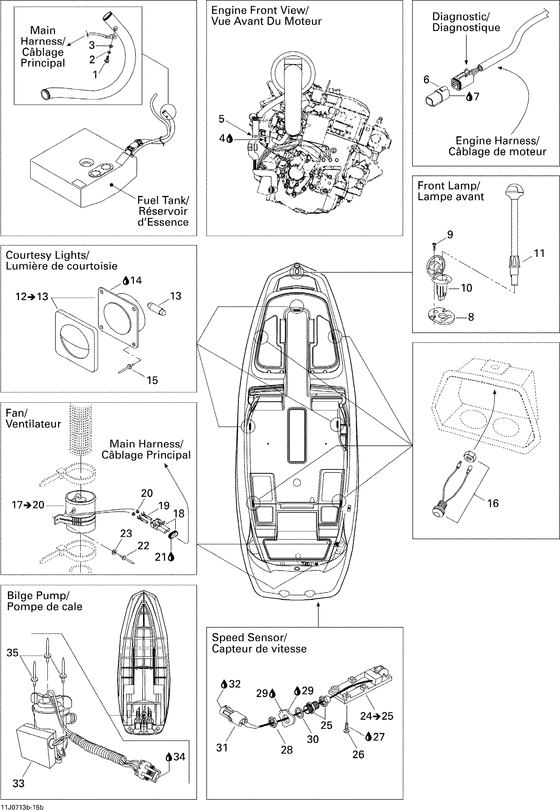

10- electrical accessories 2 Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
208640860 Screw-pan hd.ph.din.7985a-a2 |
208640860 |
US $5.35 |
||
|
2
|
2
234141601 Washer-lock helical din.127b-a2 |
234141601 |
US $7.40 |
||
|
3
|
3
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
4
|
4
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
5
|
5
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
6
|
6
278002148
Capuchon *connect-cap
|
278002148 |
— | ||
|
7
|
7
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
8
|
8
204470072 Supp.phare av. *supp-lamp front |
204470072 |
US $17.82 |
||
|
9
|
9
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
10
|
10
204471217
Base phare*base assy- lamp
|
204471217 |
— | ||
|
11
|
11
204471218 Pole phare*lamp pole/front |
204471218 |
US $113.19 |
||
|
12
|
12
204470026 Lum.courtoisie *light-courtesyIncludes 12 to 13; |
204470026 |
US $39.88 |
||
|
13
|
13
204470081 Ampoule *bulb |
204470081 |
US $13.21 |
||
|
14
|
14
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
15
|
15
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
16
|
16
204471169 Lumi+re ass.*light assy-led |
204471169 |
US $21.39 |
||
|
17
|
17
204470108 Ventilateur ass*fan-assy.Includes 17 to 20; |
204470108 |
US $163.83 |
||
|
18
|
18
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
19
|
19
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
20
|
20
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
21
|
21
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
22
|
22
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
23
|
23
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
24
|
24
204471199
Retrav.capteur*sensor-speed/rework
Includes 24 to 25; |
204471199 |
— | ||
|
25
|
25
293710031 Raccord elect. *connect-elect. |
293710031 |
US $19.92 |
||
|
26
|
26
208551060 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208551060 |
US $9.80 |
||
|
27
|
27
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
28
|
28
293710032 Ecrou d arret *nut-locking |
293710032 |
US $48.55 |
||
|
29
|
29
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
30
|
30
278000416 Rondelle etanc.*washer-seal |
278000416 |
US $41.90 |
||
|
31
|
31
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
32
|
32
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
33
|
33
204471176
Pompe-cale *pump-bilge w/screen
|
204471176 |
— | ||
| replacement | |||||
|
33
|
33
204470562
Pompe cale *pump-bilge
|
204470562 |
— | ||
|
34
|
34
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
35
|
35
293150029 Rivet-pop 5/32 *rivet-pop 5/32 |
293150029 |
US $19.60 |
||
