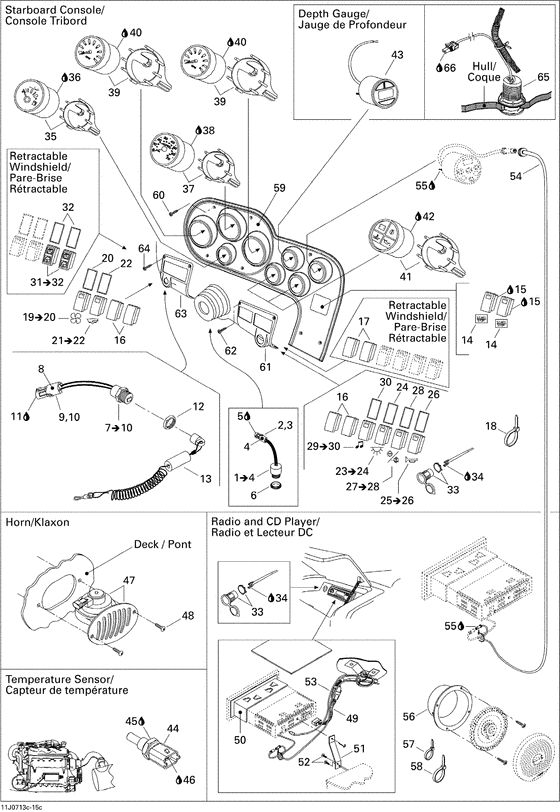

10- electrical accessories 3 Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204470913 Avertisseur ass*buzzer-assy.Includes 1 to 4; |
204470913 |
US $84.61 |
||
|
2
|
2
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
3
|
3
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
4
|
4
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
5
|
5
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
6
|
6
278000707
Ecrou avert. *nut-horn
|
278000707 |
— | ||
|
7
|
7
278001734
Inter.urgence *switch-safety
Includes 7 to 10; |
278001734 |
— | ||
|
8
|
8
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
9
|
9
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
10
|
10
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
11
|
11
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
12
|
12
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
13
|
13
204471099
Cordon securite*safety lanyard
|
204471099 |
— | ||
|
14
|
14
204471178
Interrupteur*switch-start/stop
|
204471178 |
— | ||
|
15
|
15
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
16
|
16
204470596 Bouchon-interr.*plug-switchFixed Windshield; |
204470596 |
US $14.67 |
||
|
17
|
17
204470596 Bouchon-interr.*plug-switchRetractable Windshield; |
204470596 |
US $14.67 |
||
|
18
|
18
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
19
|
19
204470011
Inter.vent. *switch-fan
Includes 19 to 20; |
204470011 |
— | ||
|
20
|
20
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
21
|
21
204470099
Inter.bilge. *switch-bilge
Includes 21 to 22; |
204470099 |
— | ||
|
22
|
22
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
23
|
23
204470100
Inter.lumiere *switch-light
Includes 23 to 24; |
204470100 |
— | ||
|
24
|
24
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
25
|
25
204470101
Inter.klaxon *switch-horn
Includes 25 to 26; |
204470101 |
— | ||
|
26
|
26
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
27
|
27
204470102
Inter.courtois.*switch-courtesy
Includes 27 to 28; |
204470102 |
— | ||
|
28
|
28
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
29
|
29
204471116 Interrupt.st+r+o*switch-stereoIncludes 29 to 30; |
204471116 |
US $38.83 |
||
|
30
|
30
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
31
|
31
204471167 Interr.pare-brise*switch-windshieldIncludes 31 to 32, Retractable Windshield; |
204471167 |
US $46.89 |
||
|
32
|
32
204470132
Joint etanche *gasket
Retractable Windshield; |
204470132 |
— | ||
|
33
|
33
204470907
R+ceptacle*receptacle-12 volt
|
204470907 |
— | ||
|
34
|
34
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
35
|
35
204471152
Cadran essen.*gauge-fuel
|
204471152 |
— | ||
|
36
|
36
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
37
|
37
204471153
Cadran vitesse*gauge-speedo
|
204471153 |
— | ||
|
38
|
38
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
39
|
39
204471155
Cadran tachy.*gauge-tachometer
|
204471155 |
— | ||
|
40
|
40
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
41
|
41
204471156
Cadran avert*gauge-warning/engine
|
204471156 |
— | ||
|
42
|
42
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
43
|
43
204471157
Jauge profond.*gauge-depth
|
204471157 |
— | ||
|
44
|
44
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
44
|
44
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
45
|
45
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
46
|
46
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
47
|
47
204471160
Klaxon-acier*horn-stainless
|
204471160 |
— | ||
|
48
|
48
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
49
|
49
204470930
Adapt.harnais*adaptor-harness/stereo
|
204470930 |
— | ||
|
50
|
50
204471010 Bague assiette*ring-trim/stereo |
204471010 |
US $22.02 |
||
|
51
|
51
204471194 Support radio *support-radio |
204471194 |
US $30.41 |
||
|
52
|
52
204100203 Screw-tapp.pan hd.ph. #12 x 3/4 |
204100203 |
US $2.01 |
||
|
53
|
53
204470931
Antenne *antenna
|
204470931 |
— | ||
|
54
|
54
204470993
Cable telecom.*cable-stereo remote
|
204470993 |
— | ||
|
55
|
55
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
56
|
56
204470982 Couv.haut parl.*cover-speaker assy |
204470982 |
US $33.61 |
||
|
57
|
57
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
58
|
58
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
59
|
59
204471172
Fascia ass y *fascia assy-burl
|
204471172 |
— | ||
| replacement | |||||
|
59
|
59
204471278
Fascia ass y *fascia assy-burl
|
204471278 |
— | ||
|
60
|
60
205342569 Screw-socket hd.ctsk.din.7991-a2 |
205342569 |
US $2.01 |
||
|
61
|
61
204471173 Pann.interr.*panel-switch/right |
204471173 |
US $87.67 |
||
|
62
|
62
250000092 Screw-tapp.ctsk.fl.hd.ph.7982c-a2 |
250000092 |
US $1.79 |
||
|
63
|
63
204471174
Pann.interr.*panel-switch/left
|
204471174 |
— | ||
|
64
|
64
250000092 Screw-tapp.ctsk.fl.hd.ph.7982c-a2 |
250000092 |
US $1.79 |
||
|
65
|
65
204470918
Capteur *transducer-thru hull
|
204470918 |
— | ||
|
66
|
66
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
