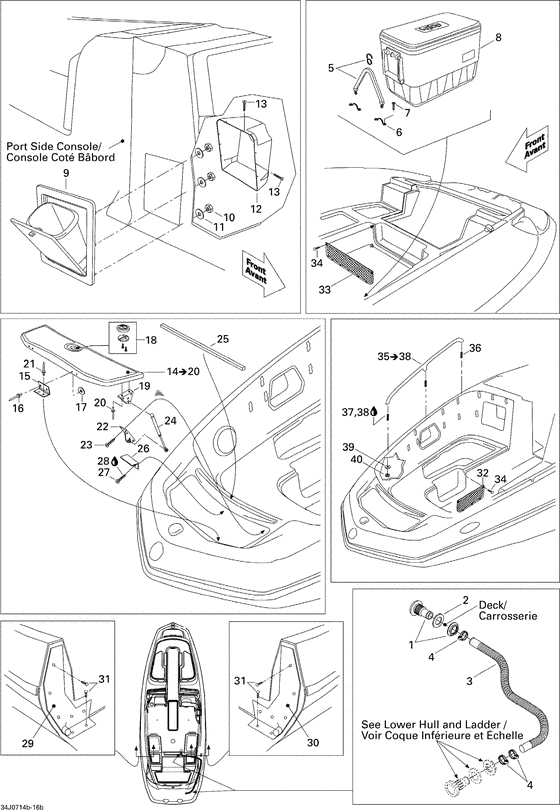

09- body and accessories 2 Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204130163 Raccord-drain*fitting-drain |
204130163 |
US $28.31 |
||
|
2
|
2
293250039
Joint etanche *gasket
|
293250039 |
— | ||
|
3
|
3
204070560 Boyau bilgeflex*hose-bilgeflex |
204070560 |
US $11.66 |
||
|
4
|
4
293650074 Bride serrage *clamp-norma |
293650074 |
US $14.67 |
||
|
5
|
5
204070905 Courr.glaciere *strap-ice chest |
204070905 |
US $38.83 |
||
|
6
|
6
204071845 Oeil courroie*eye-strap |
204071845 |
US $28.31 |
||
|
7
|
7
204100049 Screw-tapp.ctsk.fl.hd.ph.#8 x 1 |
204100049 |
US $19.60 |
||
|
8
|
8
204072662
Glaci+re-23l.*cooler-25 quart
|
204072662 |
— | ||
|
9
|
9
204072969
Rangem.ordure*storage-trash
|
204072969 |
— | ||
|
10
|
10
204100034 Nut-stop elastic 10-24 ss |
204100034 |
US $7.10 |
||
|
11
|
11
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
12
|
12
204072973
Doublure ordure*liner-trash
|
204072973 |
— | ||
|
13
|
13
250000092 Screw-tapp.ctsk.fl.hd.ph.7982c-a2 |
250000092 |
US $1.79 |
||
|
14
|
14
204072664
Anchor lid
Includes 14 To 20; |
204072664 |
— | ||
|
15
|
15
204072601 Charniere porte*hinge-ski door |
204072601 |
US $41.77 |
||
|
16
|
16
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
17
|
17
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
18
|
18
204072838 Loquet d acier*latch-stainless |
204072838 |
US $112.17 |
||
|
19
|
19
204071700
Supp.amort.*bracket-shock/angled
|
204071700 |
— | ||
|
20
|
20
293150088 Rivet-pop 3/16 *rivet-pop 3/16 |
293150088 |
US $1.34 |
||
|
21
|
21
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
22
|
22
204071700
Supp.amort.*bracket-shock/angled
|
204071700 |
— | ||
|
23
|
23
209641360 Screw-tapp.pan hd.ph.din.7981b-a2 |
209641360 |
US $19.60 |
||
|
24
|
24
204073017 Amortisseur*shock-gas |
204073017 |
US $71.35 |
||
|
25
|
25
293200095
New Genuine Part
|
293200095 |
— | ||
|
26
|
26
204070060 Gache *keeper |
204070060 |
US $62.90 |
||
|
27
|
27
208641260 Screw-pan hd.ph.din.7985a-a2 |
208641260 |
US $9.80 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
204072504 Joint mur bruit*seal-soundwall |
204072504 |
US $46.89 |
||
|
30
|
30
204072505
Joint mur bruit*seal-soundwall
|
204072505 |
— | ||
|
31
|
31
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
32
|
32
204072691
Filet rangem.*net-storage/stbd.
|
204072691 |
— | ||
|
32
|
32
204072692
Filet rangem.*net-storage/port
|
204072692 |
— | ||
|
33
|
33
204072693
Filet rangem.*net-storage/rear
|
204072693 |
— | ||
|
34
|
34
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
35
|
35
204072537 Basting.proue*bow rail assy-stbd.Includes 35 to 38; |
204072537 |
US $426.33 |
||
|
35
|
35
204072535 Basting.proue*bow rail assy-portIncludes 35 to 38; |
204072535 |
US $426.33 |
||
|
36
|
36
204100050 Goujon filete *stud-threaded |
204100050 |
US $21.85 |
||
|
37
|
37
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
38
|
38
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
39
|
39
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
40
|
40
204100032 Nut-stop elastic 3/8-16 |
204100032 |
US $10.70 |
