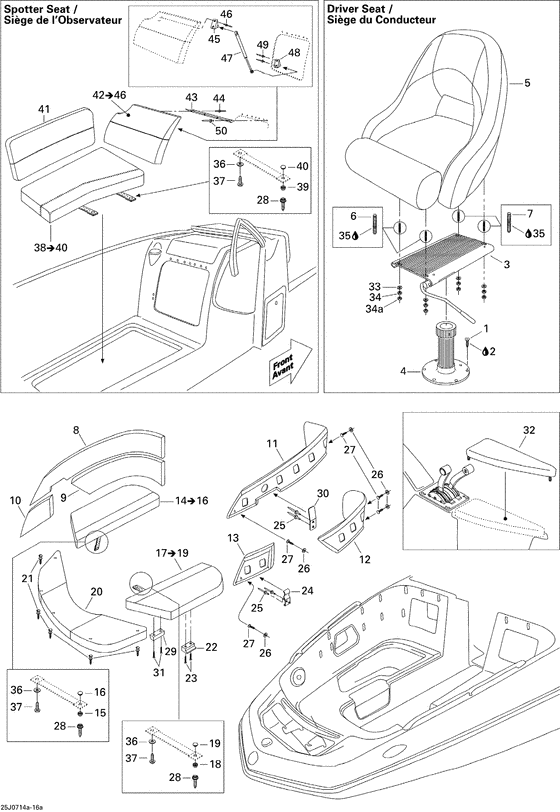

09- seat, front view Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204100201 Screw-ctsk.ov.hd.ph. 1/4-20 x 1-1/4 |
204100201 |
US $2.01 |
||
|
2
|
2
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
3
|
3
204613742 Base pivotant.*base-swivel/slide |
204613742 |
US $380.43 |
||
|
4
|
4
204613743
Pi+destal siege*pedestal-seat
|
204613743 |
— | ||
|
5
|
5
204613769
Si+ge baquet*seat-bucket assy.
|
204613769 |
— | ||
|
6
|
6
204613795 Ergot-siege*stud-seat 1/4-20 x 2-1/2 |
204613795 |
US $15.73 |
||
|
7
|
7
204613795 Ergot-siege*stud-seat 1/4-20 x 2-1/2 |
204613795 |
US $15.73 |
||
|
8
|
8
204613775 Doss.super.*backrest-upper/stbd. |
204613775 |
US $442.65 |
||
|
9
|
9
204613968
Doss.infer.*backrest-lower/stbd.
|
204613968 |
— | ||
|
10
|
10
204613969
Doss.avant.*backrest-front/stbd.
|
204613969 |
— | ||
|
11
|
11
204613777 Doss.super.*backrest-upper/port |
204613777 |
US $442.65 |
||
|
12
|
12
204613970
Doss.infer.*backrest-lower/port
|
204613970 |
— | ||
|
13
|
13
204613971
Doss.avant.*backrest-front/port
|
204613971 |
— | ||
|
14
|
14
204613779
Coussin assem.*cushion assy/bow-stbd.
Includes 14 to 16; |
204613779 |
— | ||
|
15
|
15
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
16
|
16
204611609 Att.press.couv.*snap-cover |
204611609 |
US $8.02 |
||
|
17
|
17
204613781
Coussin assem.*cushion assy/bow-port
Includes 17 to 19; |
204613781 |
— | ||
|
18
|
18
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
19
|
19
204611609 Att.press.couv.*snap-cover |
204611609 |
US $8.02 |
||
|
20
|
20
204613783
Coussin assem.*cushion assy/front
|
204613783 |
— | ||
|
21
|
21
293730021 Dard *dart |
293730021 |
US $97.90 |
||
|
22
|
22
204611940 Loq.base siege*catch-seat base |
204611940 |
US $21.47 |
||
|
23
|
23
204100039 Screw-ctsk.fl.hd.ph. 1/4x20x2 |
204100039 |
US $19.60 |
||
|
24
|
24
204610288
Support siege *support-seat
|
204610288 |
— | ||
|
25
|
25
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
26
|
26
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
27
|
27
293730014 Dard noir *dart-black |
293730014 |
US $13.40 |
||
|
28
|
28
202000159 Screw-stud tapp. 3/8" ss |
202000159 |
US $1.79 |
||
|
29
|
29
204611805
Loquet base*catch-seat base
|
204611805 |
— | ||
|
30
|
30
204611531 Pince-retenue *clip-retaining |
204611531 |
US $14.67 |
||
|
31
|
31
204100081 Screw-pan hd.#8 x 1 1/4" ss |
204100081 |
US $1.79 |
||
|
32
|
32
204613785
Accoud.assem.*elbowrest assy/stbd.
|
204613785 |
— | ||
|
33
|
33
211200025 Rondelle frein *washer-lock 1/4 |
211200025 |
US $8.40 |
||
|
34
|
34
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
34a
|
34a
211100026 Nut-hexagonal 1/4-20 |
211100026 |
US $9.80 |
||
|
35
|
35
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
36
|
36
211200019 Washer-flat 1/4 ss-316 |
211200019 |
US $9.80 |
||
|
37
|
37
294100054
Vis autotaraudeuse #8 x 3/4"
|
294100054 |
— | ||
|
38
|
38
204613770
Coussin assem.*cushion assy/spotter
Includes 38 to 40; |
204613770 |
— | ||
|
39
|
39
204000083 Att.press.base *snap-base |
204000083 |
US $7.04 |
||
|
40
|
40
204611609 Att.press.couv.*snap-cover |
204611609 |
US $8.02 |
||
|
41
|
41
204613771
Dossier-plat.*backrest-gunnel/spotter
|
204613771 |
— | ||
|
42
|
42
204613772
Doss.rangem.*backrest-storage/spotter
Includes 42 to 46; |
204613772 |
— | ||
| replacement | |||||
|
42
|
42
204614418
Doss.rangem.*backrest-storage/spotter
Includes 42 to 46; |
204614418 |
— | ||
|
43
|
43
204613980 Charni+re doss.*hinge-backrest |
204613980 |
US $31.47 |
||
|
44
|
44
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
45
|
45
204071700
Supp.amort.*bracket-shock/angled
|
204071700 |
— | ||
|
46
|
46
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
47
|
47
204072218 Amortisseur*shock-gas |
204072218 |
US $105.01 |
||
|
48
|
48
204071700
Supp.amort.*bracket-shock/angled
|
204071700 |
— | ||
|
49
|
49
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
50
|
50
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
