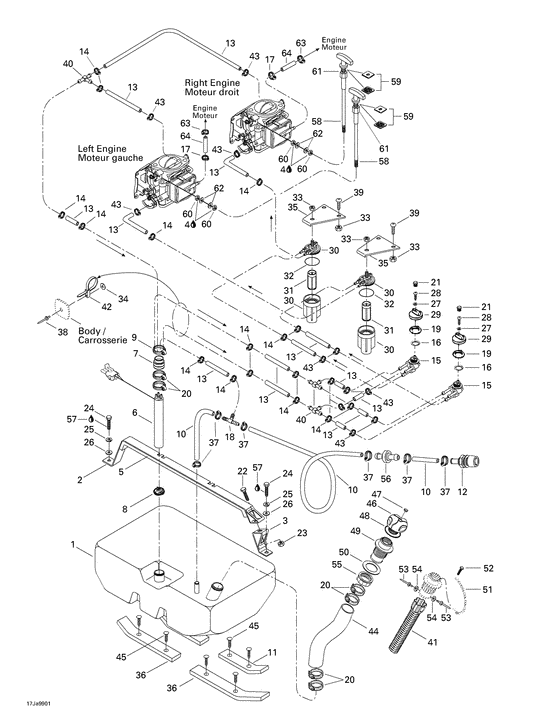

02- fuel system Diagram Bombardier Challenger
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204250071 Cable etrang.dr*cable-choke rh |
204250071 |
US $83.61 |
||
|
1
|
1
204560044
Reserv.ess.plas*tank-fuel plas
|
204560044 |
— | ||
|
2
|
2
275500199
Sangle metal. *strap-metal.
|
275500199 |
— | ||
|
3
|
3
275500202
Attache de sangle
|
275500202 |
— | ||
|
5
|
5
204560029
Tampon protect.*pad-protector
|
204560029 |
— | ||
|
6
|
6
204560071 Chicane triage *baffle-pick upIncludes 6 - 8.; |
204560071 |
US $260.07 |
||
|
7
|
7
204560066
Adap.tube ess. *adap-tube fuel
|
204560066 |
— | ||
|
8
|
8
275500249
Filtre essence *filter-fuel
|
275500249 |
— | ||
| replacement | |||||
|
8
|
8
275500397 Filtre essence *filter-fuel |
275500397 |
US $29.38 |
||
|
9
|
9
293650078
Bride serrage *clamp-norma
|
293650078 |
— | ||
|
10
|
10
275500205
Boyau 16mm. *hose-16mm.
|
275500205 |
— | ||
|
11
|
11
293830020
Tampon de caoutchouc
|
293830020 |
— | ||
|
12
|
12
275500206 Aerateur *vent-boat |
275500206 |
US $34.63 |
||
|
13
|
13
204560099
Boyau ess.6mm *hose-fuel(6mm)
|
204560099 |
— | ||
|
14
|
14
293650088
Bride serrage *clamp-norma
|
293650088 |
— | ||
|
15
|
15
275500098 Soupape essence*valve-fuel |
275500098 |
US $46.78 |
||
|
16
|
16
293250004 Joint etanche *gasket |
293250004 |
US $42.25 |
||
|
17
|
17
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
|
18
|
18
204560038
Raccord en t *fitting-t
|
204560038 |
— | ||
|
19
|
19
212100009 Nut-hex.plastic |
212100009 |
US $25.20 |
||
|
20
|
20
293650081 Bride serrage *clamp-norma |
293650081 |
US $13.46 |
||
|
21
|
21
275500241 Bouchon bouton *plug-cap fuel valve |
275500241 |
US $21.75 |
||
|
22
|
22
207185560 Screw-hex.cap din.933a2 |
207185560 |
US $16 |
||
|
23
|
23
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
24
|
24
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
25
|
25
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
26
|
26
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
27
|
27
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
28
|
28
208640860 Screw-pan hd.ph.din.7985a-a2 |
208640860 |
US $5.35 |
||
|
29
|
29
275500263 Bouton valve es*knob-valv.fuel |
275500263 |
US $9.50 |
||
|
30
|
30
275500088 Filtre ess.ass.*filter-fuel asIncludes 30 - 32.; |
275500088 |
US $31.47 |
||
|
31
|
31
275500089 Filtre essence *filter-fuel |
275500089 |
US $68 |
||
|
32
|
32
275500090 Joint torique *o-ring |
275500090 |
US $49.80 |
||
|
33
|
33
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
34
|
34
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
35
|
35
204560007
Fuel filter support
|
204560007 |
— | ||
|
36
|
36
293830021
Tampon caout. *pad-rubber
|
293830021 |
— | ||
|
37
|
37
293650069 Bride serrage *clamp-norma |
293650069 |
US $13.60 |
||
|
38
|
38
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
39
|
39
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
40
|
40
293710040
Raccord en "t"
|
293710040 |
— | ||
|
41
|
41
275500067
Boyau remp.int.*hose-fil.neck
|
275500067 |
— | ||
|
42
|
42
293750017
Tie rap *tie-rap
|
293750017 |
— | ||
|
43
|
43
293650070 Bride serrage *clamp-norma |
293650070 |
US $13.60 |
||
|
44
|
44
275500259
Boyau remp.ext.*hose-fil.neck
|
275500259 |
— | ||
|
45
|
45
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
46
|
46
275500153
Bouchon ess.sub*cap-fuel sub.
Includes 46 - 47.; |
275500153 |
— | ||
| replacement | |||||
|
46
|
46
275500430 Bouchon ess.sub*cap-fuel sub.Includes 46 - 47.; |
275500430 |
US $30.19 |
||
|
47
|
47
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
48
|
48
293250017
Joint etanche *gasket
|
293250017 |
— | ||
|
49
|
49
275500247
Goulot remplis.*neck-filler
|
275500247 |
— | ||
|
50
|
50
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
51
|
51
275500015
Chaine bouchon *chain-cap oil
|
275500015 |
— | ||
|
52
|
52
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
53
|
53
293150057 Rivet-pop 1/8 *rivet-pop 1/8 |
293150057 |
US $17 |
||
|
54
|
54
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
55
|
55
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
56
|
56
204560101 Aer.anti-devers*vent-fuel surge protect |
204560101 |
US $89.73 |
||
|
57
|
57
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
58
|
58
204250041 Cable etrang.ga*cable-choke lhIncludes 58 - 62.; |
204250041 |
US $98.89 |
||
|
59
|
59
291000457 Plaque etrang. *plate-choke |
291000457 |
US $48.55 |
||
|
60
|
60
212100003
Nut-jam hexagonal din.439b-a2
|
212100003 |
— | ||
| replacement | |||||
|
60
|
60
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
61
|
61
211100007
Nut-hexagonal hi-lex
|
211100007 |
— | ||
|
62
|
62
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
62
|
62
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
63
|
63
293650038
Bride serrage *clamp-tridon
|
293650038 |
— | ||
|
64
|
64
275500139
Boyau 6mm. *hose-6mm.
|
275500139 |
— | ||
