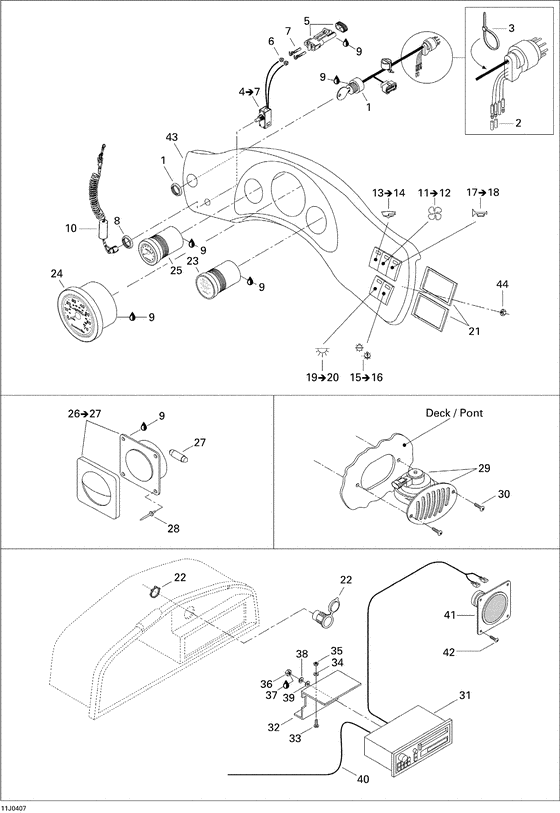

10- electrical accessories 1 Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
204130033 Bouch.caout.*cap-rubber |
204130033 |
US $56.55 |
||
|
3
|
3
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
4
|
4
204470867
Inter.urgence*switch-safety
Includes 4 to 7; |
204470867 |
— | ||
|
5
|
5
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
6
|
6
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
7
|
7
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
8
|
8
278000099 Ecrou securite *nut-saf.switch |
278000099 |
US $91.30 |
||
|
9
|
9
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
10
|
10
278001431 Cordon securite*lanyard-safety |
278001431 |
US $52.63 |
||
|
11
|
11
204470011
Inter.vent. *switch-fan
Includes 11 to 12; |
204470011 |
— | ||
|
12
|
12
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
13
|
13
204470099
Inter.bilge. *switch-bilge
Includes 13 to 14; |
204470099 |
— | ||
|
14
|
14
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
15
|
15
204470100
Inter.lumiere *switch-light
Includes 15 to 16; |
204470100 |
— | ||
|
16
|
16
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
17
|
17
204470101
Inter.klaxon *switch-horn
Includes 17 to 18; |
204470101 |
— | ||
|
18
|
18
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
19
|
19
204470102
Inter.courtois.*switch-courtesy
Includes 19 to 20; |
204470102 |
— | ||
|
20
|
20
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
21
|
21
204470343 Plaque blocage *plate-locking |
204470343 |
US $19.92 |
||
|
22
|
22
204470907
R+ceptacle*receptacle-12 volt
|
204470907 |
— | ||
|
23
|
23
204470806
Cadran ess.*gauge-fuel/oil
|
204470806 |
— | ||
|
24
|
24
204470805
Cadran vites.*speedometer
|
204470805 |
— | ||
| replacement | |||||
|
24
|
24
204470961 Cadran vites.*speedometer |
204470961 |
US $425.29 |
||
|
25
|
25
204470807
Cadran tachy.*gauge-tachometer
|
204470807 |
— | ||
| replacement | |||||
|
25
|
25
204470962
Cadran tachy.*gauge-tachometer
|
204470962 |
— | ||
|
26
|
26
204470026 Lum.courtoisie *light-courtesyIncludes 26 to 27; |
204470026 |
US $39.88 |
||
|
27
|
27
204470081 Ampoule *bulb |
204470081 |
US $13.21 |
||
|
28
|
28
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
29
|
29
204470801
Klaxon *horn
|
204470801 |
— | ||
|
30
|
30
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
31
|
31
204470869
Radio disq.com.*radio-comp.disk
|
204470869 |
— | ||
|
32
|
32
204470688
Support-radio *support-radio
|
204470688 |
— | ||
|
33
|
33
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
34
|
34
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
35
|
35
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
36
|
36
232051600 Nut-hexagonal din.934a2 |
232051600 |
US $7.40 |
||
|
37
|
37
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
38
|
38
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
39
|
39
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
40
|
40
204470380
Antenne *antenna
|
204470380 |
— | ||
|
41
|
41
204470378
Haut parleur *speaker
|
204470378 |
— | ||
|
42
|
42
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
43
|
43
204470736
Fascia *fascia assy.
|
204470736 |
— | ||
|
44
|
44
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
