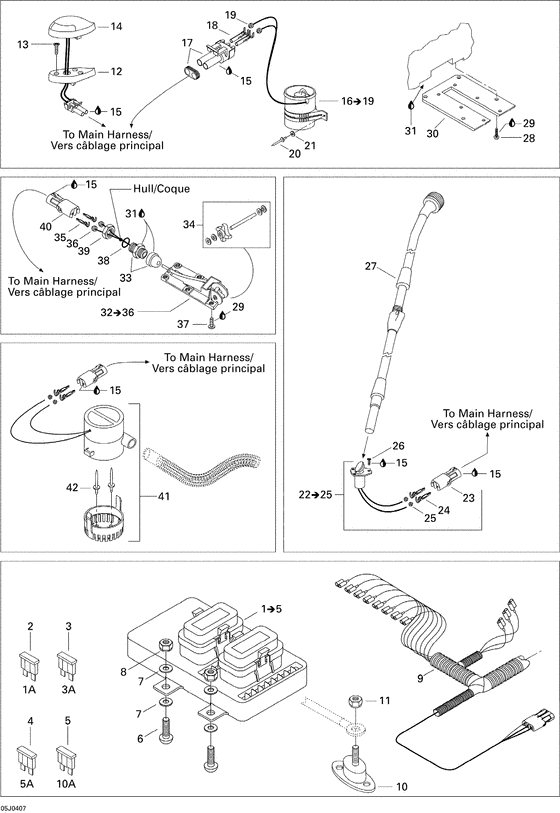

10- electrical accessories 2 Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204470815 Bloc fusible *block-fuseIncludes 1 to 5; |
204470815 |
US $286.59 |
||
|
2
|
2
409012800 Fusible 1a *fuse-1a |
409012800 |
US $16.76 |
||
|
3
|
3
278001196 Fusible 3 amp. *fuse-3 amp. |
278001196 |
US $10.30 |
||
|
4
|
4
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
5
|
5
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $14.20 |
||
|
6
|
6
208662560 Screw-pan hd.ph.din.7985a-a2 |
208662560 |
US $19.45 |
||
|
7
|
7
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
204470835
Cablage *harness
|
204470835 |
— | ||
|
10
|
10
204470715
Poteau masse*post-ground 3/8
|
204470715 |
— | ||
|
11
|
11
204100032 Nut-stop elastic 3/8-16 |
204100032 |
US $10.70 |
||
|
12
|
12
204470072 Supp.phare av. *supp-lamp front |
204470072 |
US $17.82 |
||
|
13
|
13
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
14
|
14
204470311
Phare avant *lamp-front (3120b1)
|
204470311 |
— | ||
|
15
|
15
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
16
|
16
204470108 Ventilateur ass*fan-assy.Includes 16 to 19; |
204470108 |
US $163.83 |
||
|
17
|
17
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
18
|
18
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
19
|
19
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
20
|
20
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
21
|
21
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
22
|
22
278000674
Base phare arr.*base-rear lamp
Includes 22 to 25; |
278000674 |
— | ||
|
23
|
23
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
24
|
24
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
25
|
25
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
26
|
26
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
27
|
27
204470817
Pole phare *pole-lamp/stern 62
|
204470817 |
— | ||
| replacement | |||||
|
27
|
27
204471207 Pole phare *pole-lamp / 62 |
204471207 |
US $201.93 |
||
|
28
|
28
208563560 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208563560 |
US $12.90 |
||
|
29
|
29
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
30
|
30
204470538
Support senseur*support-sensor
|
204470538 |
— | ||
|
31
|
31
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
32
|
32
278000970
Capteur vitesse*sensor-speed
Includes 32 to 36; |
278000970 |
— | ||
| replacements | |||||
|
32
|
32
278000222 Cosse male *terminal-maleIncludes 32 to 36; |
278000222 |
US $21.15 |
||
|
32
|
32
278001998
Capteur vitesse*sensor-speed
Includes 32 to 36; |
278001998 |
— | ||
|
32
|
32
278000218 Joint de fil *seal-wireIncludes 32 to 36; |
278000218 |
US $58.70 |
||
|
32
|
32
293710031 Raccord elect. *connect-elect.Includes 32 to 36; |
293710031 |
US $19.92 |
||
|
32
|
32
293710032 Ecrou d arret *nut-lockingIncludes 32 to 36; |
293710032 |
US $48.55 |
||
|
33
|
33
293710031 Raccord elect. *connect-elect. |
293710031 |
US $19.92 |
||
|
34
|
34
295500108
Paddle wheel kit
|
295500108 |
— | ||
| replacement | |||||
|
34
|
34
296000193 Paddle wheel kit |
296000193 |
US $74.41 |
||
|
35
|
35
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
36
|
36
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
37
|
37
208551060 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208551060 |
US $9.80 |
||
|
38
|
38
278000416 Rondelle etanc.*washer-seal |
278000416 |
US $41.90 |
||
|
39
|
39
293710032 Ecrou d arret *nut-locking |
293710032 |
US $48.55 |
||
|
40
|
40
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
41
|
41
204470562
Pompe cale *pump-bilge
|
204470562 |
— | ||
|
42
|
42
293150029 Rivet-pop 5/32 *rivet-pop 5/32 |
293150029 |
US $19.60 |
||
