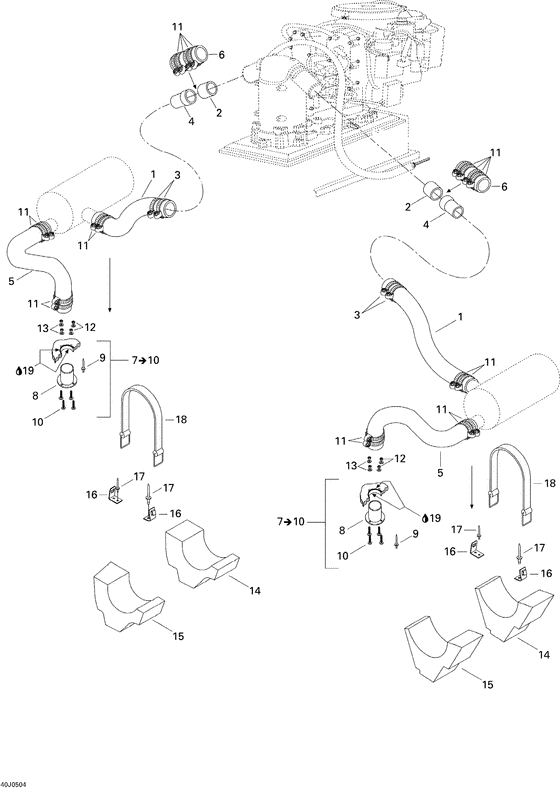

01- exhaust system Diagram Bombardier Challenger
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204340408 Boyau echapp. *hose-exhaust |
204340408 |
US $79.53 |
||
|
2
|
2
204340403 Espace.echapp.*spacer-exhaust |
204340403 |
US $29.53 |
||
|
3
|
3
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
4
|
4
204340402 Adapt.echap.*adapter-exhaust |
204340402 |
US $61.15 |
||
|
5
|
5
204340299
Boyau echapp. *hose-exhaust
|
204340299 |
— | ||
|
6
|
6
204340256
Boyau echapp. *hose-exhaust
|
204340256 |
— | ||
|
7
|
7
204340322
Sortie echapp. *outlet-exhaust assy.
Includes 7 to 10; |
204340322 |
— | ||
| replacements | |||||
|
7
|
7
204340229
Sortie echapp. *outlet-exhaust/3
Includes 7 to 10; |
204340229 |
— | ||
|
7
|
7
204340253
Ext.sort.echap.*exten-outlet/3
Includes 7 to 10; |
204340253 |
— | ||
|
7
|
7
208663560 Screw-pan hd.ph.din.7985a-a2Includes 7 to 10; |
208663560 |
US $15.80 |
||
|
7
|
7
293150043 Rivet-pop 3/16 *rivet-pop 3/16Includes 7 to 10; |
293150043 |
US $13.60 |
||
|
8
|
8
204340229
Sortie echapp. *outlet-exhaust/3
|
204340229 |
— | ||
|
9
|
9
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
10
|
10
208663560 Screw-pan hd.ph.din.7985a-a2 |
208663560 |
US $15.80 |
||
|
11
|
11
293650112 Bride serrage *clamp-tridon |
293650112 |
US $14.52 |
||
|
12
|
12
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
13
|
13
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
14
|
14
204340369
Supp.silenc.*support-muffler
|
204340369 |
— | ||
|
15
|
15
204340383
Supp.silenc.*support-muffler
|
204340383 |
— | ||
|
16
|
16
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
17
|
17
293150088 Rivet-pop 3/16 *rivet-pop 3/16 |
293150088 |
US $1.34 |
||
|
18
|
18
293850022 Sangle res.huil*strap-oil tank |
293850022 |
US $41.23 |
||
|
19
|
19
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
