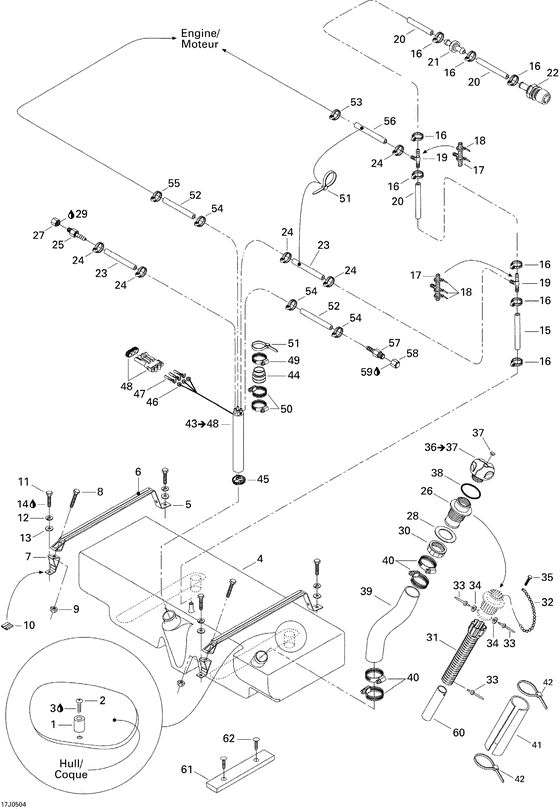

02- fuel system Diagram Bombardier Challenger
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204560039
Butoir caout. *bumper-rubber
|
204560039 |
— | ||
| replacement | |||||
|
1
|
1
204071720 Butoir caout.*bumper-rubber |
204071720 |
US $22.02 |
||
|
2
|
2
208653560 Screw-pan hd.ph.din.7985a-a2 |
208653560 |
US $14.35 |
||
|
3
|
3
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
4
|
4
204560073
Reserv.ess.plas*tank-fuel plas
|
204560073 |
— | ||
|
5
|
5
204560189
Sangle-reserv.*strap-fuel tank
|
204560189 |
— | ||
|
6
|
6
204560037
Tampon protect.*pad-protector
|
204560037 |
— | ||
|
7
|
7
275500252 Attache reserv.*bracket-tank |
275500252 |
US $32.54 |
||
|
8
|
8
207185560 Screw-hex.cap din.933a2 |
207185560 |
US $16 |
||
|
9
|
9
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
10
|
10
204560027
Tampon protect.*pad-protector
|
204560027 |
— | ||
|
11
|
11
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
12
|
12
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
13
|
13
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
14
|
14
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
15
|
15
275500205
Boyau 16mm. *hose-16mm.
|
275500205 |
— | ||
|
16
|
16
293650069 Bride serrage *clamp-norma |
293650069 |
US $13.60 |
||
|
18
|
18
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
19
|
19
204560038
Raccord en t *fitting-t
|
204560038 |
— | ||
|
20
|
20
275500205
Boyau 16mm. *hose-16mm.
|
275500205 |
— | ||
|
21
|
21
204560101 Aer.anti-devers*vent-fuel surge protect |
204560101 |
US $89.73 |
||
|
22
|
22
275500206 Aerateur *vent-boat |
275500206 |
US $34.63 |
||
|
23
|
23
204560178 Boyau *hose-1/4 |
204560178 |
US $50.38 |
||
|
24
|
24
293650121 Bride serrage *clamp-norma |
293650121 |
US $9.40 |
||
|
25
|
25
204560265 Coupleur *coupler-hose/pipe |
204560265 |
US $10.47 |
||
|
26
|
26
275500247
Goulot remplis.*neck-filler
|
275500247 |
— | ||
|
27
|
27
204560263 Capuch.tuyau*cap-pipe |
204560263 |
US $10.47 |
||
|
28
|
28
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
29
|
29
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
30
|
30
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
31
|
31
275500067
Boyau remp.int.*hose-fil.neck
|
275500067 |
— | ||
|
32
|
32
275500015
Chaine bouchon *chain-cap oil
|
275500015 |
— | ||
|
33
|
33
293150057 Rivet-pop 1/8 *rivet-pop 1/8 |
293150057 |
US $17 |
||
|
34
|
34
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
35
|
35
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
36
|
36
275500430 Bouchon ess.sub*cap-fuel sub.Includes 36 to 37; |
275500430 |
US $30.19 |
||
|
37
|
37
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
38
|
38
293250017
Joint etanche *gasket
|
293250017 |
— | ||
|
39
|
39
219700374 Boyau remp.ext.*hose-fill neck/soft |
219700374 |
US $109.09 |
||
|
40
|
40
293650081 Bride serrage *clamp-norma |
293650081 |
US $13.46 |
||
|
41
|
41
204130046
Couver.neopr.*cover-neoprene
|
204130046 |
— | ||
|
42
|
42
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
43
|
43
204560223
Chicane triage*baffle-pick up
Includes 43 to 48; |
204560223 |
— | ||
|
44
|
44
204560066
Adap.tube ess. *adap-tube fuel
|
204560066 |
— | ||
|
45
|
45
275500397 Filtre essence *filter-fuel |
275500397 |
US $29.38 |
||
|
46
|
46
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
47
|
47
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
48
|
48
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
49
|
49
293650174 Bride serrage *clamp-norma |
293650174 |
US $13.60 |
||
|
50
|
50
293650081 Bride serrage *clamp-norma |
293650081 |
US $13.46 |
||
|
51
|
51
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
52
|
52
204560177
Boyau *hose-5/16
|
204560177 |
— | ||
|
53
|
53
293650121 Bride serrage *clamp-norma |
293650121 |
US $9.40 |
||
|
54
|
54
293650070 Bride serrage *clamp-norma |
293650070 |
US $13.60 |
||
|
55
|
55
293650070 Bride serrage *clamp-norma |
293650070 |
US $13.60 |
||
|
56
|
56
204560178 Boyau *hose-1/4 |
204560178 |
US $50.38 |
||
|
57
|
57
204560264
Coupleur *coupler-hose/pipe
|
204560264 |
— | ||
|
58
|
58
204560263 Capuch.tuyau*cap-pipe |
204560263 |
US $10.47 |
||
|
59
|
59
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
61
|
61
204060701
Tampon caout.*pad-rubber
|
204060701 |
— | ||
|
62
|
62
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
