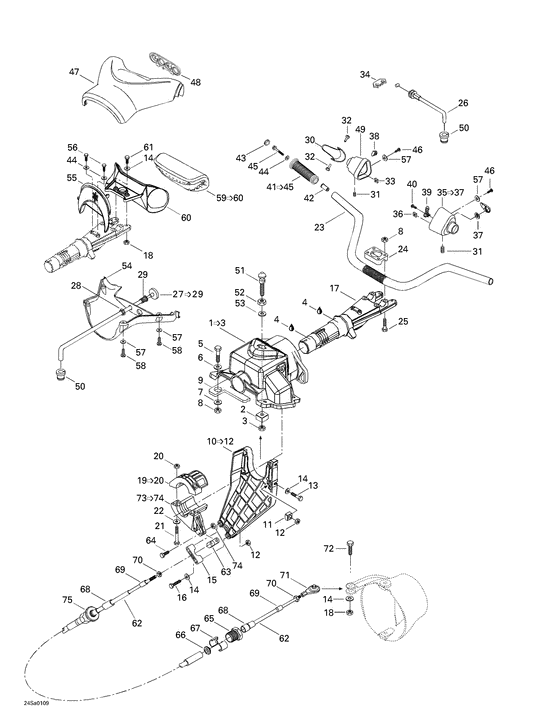

07- steering system Diagram Bombardier GS/GSI
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277000645 Support direct.*support-steer.Includes 1 - 3.; |
277000645 |
US $326.37 |
||
|
2
|
2
271000598 Logement ecrou *housing-nutIncludes 2 - 3.; |
271000598 |
US $14.67 |
||
|
3
|
3
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
4
|
4
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
5
|
5
207083560 Screw-hex.cap din.931a2 |
207083560 |
US $19.60 |
||
|
6
|
6
234081600 Washer-flat din.125a-a2 |
234081600 |
US $5.30 |
||
|
7
|
7
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $23 |
||
|
8
|
8
232581650
Nut-stop elastic din.985a2 wax/lube
|
232581650 |
— | ||
|
9
|
9
293250069 Joint etanche *gasket |
293250069 |
US $48.55 |
||
|
10
|
10
277000516
Support cable *support-cable
Includes 10 - 12.; |
277000516 |
— | ||
|
11
|
11
269500252 Logement ecrou *housing-nut asIncludes 11 - 12.; |
269500252 |
US $12.52 |
||
|
12
|
12
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.50 |
||
|
13
|
13
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.65 |
||
|
14
|
14
234061600 Washer-flat din.125a-a2 |
234061600 |
US $11.50 |
||
|
15
|
15
277000162
Palier support *thrust support
|
277000162 |
— | ||
|
16
|
16
207065060 Screw-hex.cap din.931a2 |
207065060 |
US $10.65 |
||
|
17
|
17
277000562400
Tige direction *stem-steering
|
277000562400 |
— | ||
|
18
|
18
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.50 |
||
|
19
|
19
277000519
Palier bras *thrust-arm
Includes 19 - 20.; |
277000519 |
— | ||
| replacement | |||||
|
19
|
19
277001473
Palier bras *thrust-arm
Includes 19 - 20.; |
277001473 |
— | ||
|
20
|
20
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.50 |
||
|
21
|
21
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.80 |
||
|
22
|
22
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
23
|
23
277000824
Guidon *bar-handle
|
277000824 |
— | ||
| replacement | |||||
|
23
|
23
277001450 Guidon *bar-handle |
277001450 |
US $149.89 |
||
|
24
|
24
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
25
|
25
207085060 Screw-hex.cap din.931a2 |
207085060 |
US $10.65 |
||
|
26
|
26
277000727 Cable accelerat*cable-throttle |
277000727 |
US $76.45 |
||
|
27
|
27
270000728 Cable etrang. *cable-chokeIncludes 27 - 29.; |
270000728 |
US $79.53 |
||
|
28
|
28
211100030
Nut-hexagonal hi-lex
|
211100030 |
— | ||
|
30
|
30
277000214
Manette acc. *handle-throttl
|
277000214 |
— | ||
| replacements | |||||
|
30
|
30
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
30
|
30
277001485 Manette acc. *throttle handle |
277001485 |
US $17.82 |
||
|
31
|
31
250000036 Screw-socket set m6x16 ss304-a2 |
250000036 |
US $16.30 |
||
|
32
|
32
277000381 Goupille *pin |
277000381 |
US $11.15 |
||
|
33
|
33
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
34
|
34
277000279 Patte verrouil.*lock-tab |
277000279 |
US $45.65 |
||
|
35
|
35
277000869 Log.gauche ass.*housing-assy.Includes 35 - 37.; |
277000869 |
US $41.77 |
||
|
36
|
36
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
37
|
37
277000306
Bouton inter. *knob-switch
|
277000306 |
— | ||
|
38
|
38
293450153 Ajout *insert |
293450153 |
US $12.19 |
||
|
39
|
39
277000845
Plaque retenue *plate-retainer
|
277000845 |
— | ||
| replacement | |||||
|
39
|
39
277001213 Plaque *plate |
277001213 |
US $57.45 |
||
|
40
|
40
209631360 Screw-tapp.pan hd.ph.din.7981c-a2 |
209631360 |
US $9.80 |
||
|
41
|
41
295500691 Black handle grip kitIncludes 41 - 45.; |
295500691 |
US $36.72 |
||
|
43
|
43
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $16.76 |
||
|
44
|
44
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
45
|
45
250000002 Screw-hex.cap din.933a2 s.grip |
250000002 |
US $21.75 |
||
|
46
|
46
209630960 Screw-tapp.pan hd.ph.din.7981c-a2 |
209630960 |
US $5.35 |
||
|
47
|
47
277000923
Couvre guidon *cover-stee.sup
Includes 47 - 48.; |
277000923 |
— | ||
|
48
|
48
277000823
Plaque guidon *plate-steering
|
277000823 |
— | ||
| replacement | |||||
|
48
|
48
277001394 Plaque guidon *plate-steering |
277001394 |
US $27.29 |
||
|
49
|
49
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
50
|
50
293720046 Passe-fils *grommet |
293720046 |
US $29.15 |
||
|
51
|
51
291000689 Ergot d ancrage*stud-latch |
291000689 |
US $34.63 |
||
|
52
|
52
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $10.65 |
||
|
53
|
53
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $10.65 |
||
|
54
|
54
277000925
Couvre guidon *cover-stee.int
|
277000925 |
— | ||
|
55
|
55
277000549 Plaque mar.noir*plate-mar.blac |
277000549 |
US $21.39 |
||
|
56
|
56
211000036 Screw-forming hex.hd. |
211000036 |
US $10.65 |
||
|
57
|
57
234051600 Washer-flat din.125a-a2 |
234051600 |
US $7.70 |
||
|
58
|
58
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.80 |
||
|
59
|
59
277000723
Tampon guidon *pad-handle
Includes 59 - 60.; |
277000723 |
— | ||
|
60
|
60
277000687 Support tampon *support-pad |
277000687 |
US $19.33 |
||
|
61
|
61
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $9.80 |
||
|
62
|
62
271000436 Cable direction*cable-steering |
271000436 |
US $152.95 |
||
|
63
|
63
277000646
Rotule *joint
|
277000646 |
— | ||
|
64
|
64
211000081 Screw-hex.cap |
211000081 |
US $19.45 |
||
|
65
|
65
277000052
Barrure cable *lock-cable
|
277000052 |
— | ||
|
66
|
66
211100009 Rondelle caout.*washer-rubber |
211100009 |
US $14.70 |
||
|
67
|
67
277000055 Demi-bague *half-ring |
277000055 |
US $14.18 |
||
|
68
|
68
277000473
Embout grand *boot-large
|
277000473 |
— | ||
|
69
|
69
277000466
Embout petit *boot-small
|
277000466 |
— | ||
|
70
|
70
212100005 Nut-hexagonal |
212100005 |
US $7.40 |
||
|
71
|
71
277000153 Joint rotule *joint-ball |
277000153 |
US $61.83 |
||
|
72
|
72
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $9.80 |
||
|
73
|
73
277000518
Support *support
Includes 73 - 74.; |
277000518 |
— | ||
|
74
|
74
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.50 |
||
|
75
|
75
277000167 Bouton ajust. *knob-ajust. |
277000167 |
US $11.17 |
||
