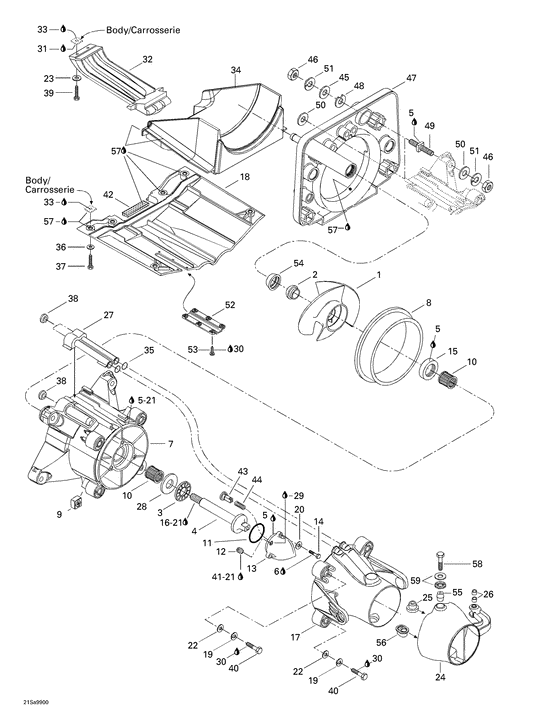

05- propulsion system Diagram Bombardier GS/GSI
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204160072
Helice stlss.as*impeller-assy.
|
204160072 |
— | ||
|
2
|
2
271000516 Prot.helice *boot-impeller |
271000516 |
US $20.80 |
||
|
3
|
3
293350019 Palier a butee *thrust-bearing |
293350019 |
US $29.53 |
||
|
4
|
4
271000291 Arbre helice *shaft-impeller |
271000291 |
US $119.31 |
||
|
5
|
5
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
6
|
6
293800002
Loctite 242 *loctite-242
|
293800002 |
— | ||
| replacement | |||||
|
6
|
6
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
7
|
7
204160055
Carter helice *housing-impel.assy.
Includes 7 - 9.; |
204160055 |
— | ||
|
8
|
8
271000290 Bague d usure *wear ring |
271000290 |
US $64.33 |
||
|
9
|
9
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
10
|
10
293350017 Roulement aigui*needle bearing |
293350017 |
US $31.18 |
||
|
11
|
11
293300011 Joint torique *o-ring |
293300011 |
US $48.95 |
||
|
12
|
12
211500001 Plug-pipe socket hd sae-j-531 |
211500001 |
US $43.50 |
||
|
13
|
13
271000895 Couvercle turb.*cover-impeller |
271000895 |
US $16.29 |
||
|
14
|
14
205052060
Screw-socket hd.din.912a2
|
205052060 |
— | ||
|
15
|
15
293200025
Anneau etanche *double lip seal
|
293200025 |
— | ||
| replacement | |||||
|
15
|
15
267000094 Anneau etanche *oil seal |
267000094 |
from US $24.34 |
||
|
16
|
16
413705200
Loctite 262, 50 ml
|
413705200 |
— | ||
|
17
|
17
271000851
Venturi ass. *venturi-assy.
|
271000851 |
— | ||
|
18
|
18
271000735
Plaque promenad*plate-riding
|
271000735 |
— | ||
| replacement | |||||
|
18
|
18
271000955 Plaque promenad*plate-riding |
271000955 |
US $248.85 |
||
|
19
|
19
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
20
|
20
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
21
|
21
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
22
|
22
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
23
|
23
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
24
|
24
271000889
Buse direction *nozzle-steering
Includes 24 - 26.; |
271000889 |
— | ||
|
25
|
25
293900001 Douille venturi*bushing-ventur |
293900001 |
US $48.35 |
||
|
27
|
27
271000972
Sortie d eau *outlet-water
|
271000972 |
— | ||
|
28
|
28
293350020 Rondelle appuie*thrust washer |
293350020 |
US $56.55 |
||
|
29
|
29
293600011 Huile de pompe *oil-pump |
293600011 |
US $256.68 |
||
|
30
|
30
293800002
Loctite 242 *loctite-242
|
293800002 |
— | ||
| replacement | |||||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
293800053
Scellant *sealant
|
293800053 |
— | ||
| replacement | |||||
|
31
|
31
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
32
|
32
271000732
Grille pompe *grate-pump
|
271000732 |
— | ||
|
33
|
33
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
33
|
33
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
34
|
34
271000592
Sabot noir *shoe-black
|
271000592 |
— | ||
|
35
|
35
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
36
|
36
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
37
|
37
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
38
|
38
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
39
|
39
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
40
|
40
207086060 Screw-hex.cap din.931a2 |
207086060 |
US $24.50 |
||
|
41
|
41
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
42
|
42
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
43
|
43
271000978 Poussoir *pusher |
271000978 |
US $12.19 |
||
|
44
|
44
271000973 Ressort *spring |
271000973 |
from US $15.49 |
||
|
45
|
45
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
46
|
46
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
47
|
47
271000959
0upport pompe *support-pump
|
271000959 |
— | ||
|
48
|
48
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
49
|
49
271000693
Goujon *stud
|
271000693 |
— | ||
| replacement | |||||
|
49
|
49
250300022 Goujon carre *stud-square |
250300022 |
US $21.42 |
||
|
50
|
50
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
51
|
51
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
52
|
52
291000446
Obturateur sabo*cap-shoe ride
|
291000446 |
— | ||
|
53
|
53
208551060 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208551060 |
US $9.80 |
||
|
54
|
54
271000517 Bague *ring |
271000517 |
US $104 |
||
|
55
|
55
271000122
Manchon *sleeve
|
271000122 |
— | ||
| replacement | |||||
|
55
|
55
271001816 SLEEVE |
271001816 |
from US $22.92 |
||
|
56
|
56
293900010 Douille plast. *bushing-plast. |
293900010 |
from US $14.69 |
||
|
57
|
57
293800053
Scellant *sealant
|
293800053 |
— | ||
| replacement | |||||
|
57
|
57
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
58
|
58
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
59
|
59
211200002
Washer-thrust
|
211200002 |
— | ||
