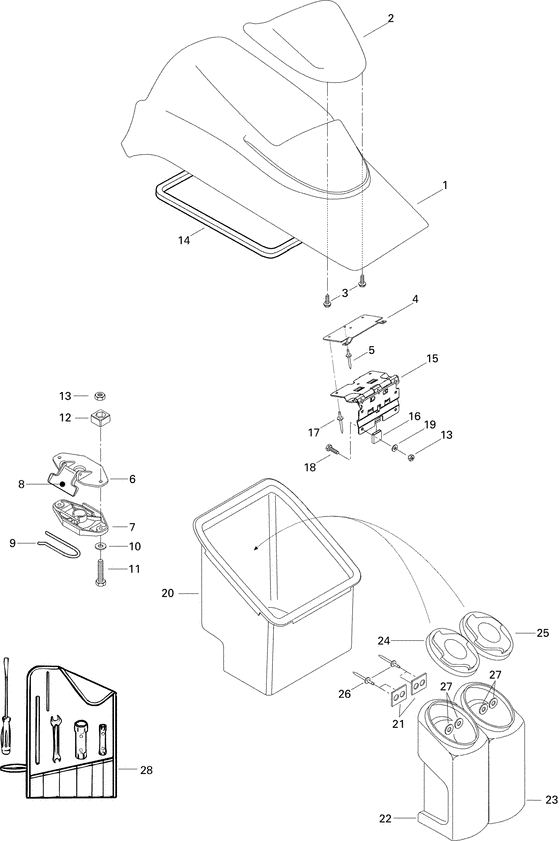

09- front storage compartment Diagram Bombardier GSX
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
295500368
Storage cover kit indigo blue
|
295500368 |
— | ||
| replacements | |||||
|
1
|
1
269500365
Couv.bagage sup*cover-stor.upp
|
269500365 |
— | ||
|
1
|
1
269500655 Couv.bagage inf*cover-stor.low |
269500655 |
US $168.25 |
||
|
1
|
1
269500619
Deflecteur *deflector
|
269500619 |
— | ||
|
1
|
1
241141360 Screw-pt.hex.flange k40 x 13 |
241141360 |
US $21.75 |
||
|
2
|
2
269500285
New Genuine Part
|
269500285 |
— | ||
|
3
|
3
211000073 Screw-special |
211000073 |
US $19.45 |
||
|
4
|
4
269500280
Plaque retenue *plate-retainer
|
269500280 |
— | ||
|
5
|
5
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
6
|
6
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
6
|
6
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
7
|
7
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
7
|
7
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
8
|
8
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
8
|
8
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
9
|
9
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
10
|
10
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
10
|
10
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
11
|
11
210000006
Screw-hex.cap din.931a2
|
210000006 |
— | ||
| replacement | |||||
|
11
|
11
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
12
|
12
269500108
Logement ecrou *housing-nut
|
269500108 |
— | ||
| replacement | |||||
|
12
|
12
269500252 Logement ecrou *housing-nut as |
269500252 |
US $19.22 |
||
|
13
|
13
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
13
|
13
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
14
|
14
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
14
|
14
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
15
|
15
269500276
Charniere stlss*hinge-stlss.
|
269500276 |
— | ||
| replacement | |||||
|
15
|
15
269500613
Charniere stlss*hinge-stlss.
|
269500613 |
— | ||
|
16
|
16
293830046
Capuchon prot. *cap-protector
|
293830046 |
— | ||
|
17
|
17
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
18
|
18
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
18
|
18
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
19
|
19
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
19
|
19
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
20
|
20
269500286
Coffre bagage *tray-storage
|
269500286 |
— | ||
| replacement | |||||
|
20
|
20
269500991 Coffre bag.arr.*tray-rear |
269500991 |
US $69.33 |
||
|
21
|
21
293250037 Joint etanche *gasket |
293250037 |
US $31.30 |
||
|
22
|
22
269500151
Boitier extinct*housing-exting
|
269500151 |
— | ||
| replacement | |||||
|
22
|
22
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
23
|
23
269500180
Boitier rang. *housing-storag
|
269500180 |
— | ||
| replacement | |||||
|
23
|
23
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
24
|
24
269500236
Cap extincteur *cap-extinguish
|
269500236 |
— | ||
| replacement | |||||
|
24
|
24
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
25
|
25
269500237
Capuchon rang. *cap-storage
|
269500237 |
— | ||
| replacement | |||||
|
25
|
25
269500604
Capuchon rang. *cap-storage
|
269500604 |
— | ||
|
26
|
26
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
27
|
27
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
27
|
27
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
28
|
28
295000066
Owner tool kit
|
295000066 |
— | ||
