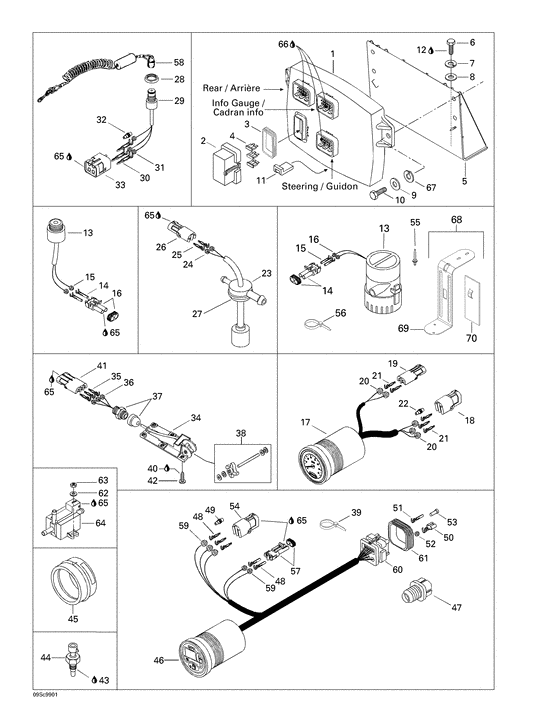

10- electronic module and electrical accessories Diagram Bombardier GSX
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
|
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
1
|
1
278001499
Module electron*module-elect.
Includes 1 - 4.; |
278001499 |
— | ||
| replacement | |||||
|
1
|
1
278001526 Module electron*module-elect.Includes 1 - 4.; |
278001526 |
US $1,657.48 |
||
|
2
|
2
278001069
Couv.fusible *cover-fuse
|
278001069 |
— | ||
| replacement | |||||
|
2
|
2
278001618
Couv.fusible *cover-fuse
|
278001618 |
— | ||
|
3
|
3
278001070 Joint couvercle*seal-cover |
278001070 |
US $16.29 |
||
|
4
|
4
278000343 Fusible 15 amp.*fuse-15 amp. |
278000343 |
US $21.15 |
||
|
5
|
5
278001213
Support module *support-module
|
278001213 |
— | ||
|
6
|
6
211000074
Screw-plastite hex.unsl
|
211000074 |
— | ||
| replacement | |||||
|
6
|
6
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
|
7
|
7
211200043 Washer-lock imperial |
211200043 |
US $10 |
||
|
8
|
8
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
9
|
9
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
10
|
10
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
11
|
11
278001166 Protect.module *protect-module |
278001166 |
US $10.47 |
||
|
12
|
12
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
13
|
13
278000978
Avertisseur ass*buzzer-assy.
Includes 13 - 16.; |
278000978 |
— | ||
| replacement | |||||
|
13
|
13
278001586
Avertisseur *buzzer
Includes 13 - 16.; |
278001586 |
— | ||
|
14
|
14
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
15
|
15
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
16
|
16
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
17
|
17
278001359
Cadran vitesse *speedometer
Includes 17 - 22.; |
278001359 |
— | ||
|
18
|
18
278000890 Bloc 4 circ.fem*housing-tab |
278000890 |
US $13.60 |
||
|
19
|
19
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
20
|
20
278001065 Joint de fil *seal-wire |
278001065 |
US $48.05 |
||
|
21
|
21
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
22
|
22
278000216 Joint de fil *seal-wire |
278000216 |
US $21.15 |
||
|
23
|
23
278001402
Capteur huile *sensor-oil
Includes 23 - 27.; |
278001402 |
— | ||
|
24
|
24
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
25
|
25
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
26
|
26
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
27
|
27
293720008 Passe-fils *grommet |
293720008 |
US $14.89 |
||
|
28
|
28
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
29
|
29
278000977
Inter.urgence *switch-safety
Includes 29 - 33.; |
278000977 |
— | ||
| replacements | |||||
|
29
|
29
278000216 Joint de fil *seal-wireIncludes 29 - 33.; |
278000216 |
US $21.15 |
||
|
29
|
29
278000218 Joint de fil *seal-wireIncludes 29 - 33.; |
278000218 |
US $58.70 |
||
|
29
|
29
278000890 Bloc 4 circ.fem*housing-tabIncludes 29 - 33.; |
278000890 |
US $13.60 |
||
|
29
|
29
278001734
Inter.urgence *switch-safety
Includes 29 - 33.; |
278001734 |
— | ||
|
29
|
29
278000222 Cosse male *terminal-maleIncludes 29 - 33.; |
278000222 |
US $21.15 |
||
|
30
|
30
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
31
|
31
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
32
|
32
278000216 Joint de fil *seal-wire |
278000216 |
US $21.15 |
||
|
33
|
33
278000890 Bloc 4 circ.fem*housing-tab |
278000890 |
US $13.60 |
||
|
34
|
34
278000849
Capteur vitesse*sensor-speed
Includes 34 - 38.; |
278000849 |
— | ||
| replacements | |||||
|
34
|
34
278000218 Joint de fil *seal-wireIncludes 34 - 38.; |
278000218 |
US $58.70 |
||
|
34
|
34
278001998
Capteur vitesse*sensor-speed
Includes 34 - 38.; |
278001998 |
— | ||
|
34
|
34
293710031 Raccord elect. *connect-elect.Includes 34 - 38.; |
293710031 |
US $19.92 |
||
|
34
|
34
293710032 Ecrou d arret *nut-lockingIncludes 34 - 38.; |
293710032 |
US $48.55 |
||
|
34
|
34
278000222 Cosse male *terminal-maleIncludes 34 - 38.; |
278000222 |
US $21.15 |
||
|
35
|
35
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
36
|
36
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
37
|
37
293710031 Raccord elect. *connect-elect. |
293710031 |
US $19.92 |
||
|
38
|
38
295500108
Paddle wheel kit
|
295500108 |
— | ||
| replacement | |||||
|
38
|
38
296000193 Paddle wheel kit |
296000193 |
US $74.41 |
||
|
39
|
39
294000606
Tie rap 180mm *tie-rap 180mm
|
294000606 |
— | ||
| replacement | |||||
|
39
|
39
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
40
|
40
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
40
|
40
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
41
|
41
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
42
|
42
250000020
Screw-ctsk.ov.hd.ph.din.966a-a2
|
250000020 |
— | ||
|
43
|
43
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
44
|
44
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
44
|
44
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
45
|
45
293720047
Support jauge *support-gauge
|
293720047 |
— | ||
|
46
|
46
278001360
Cadran info *gauge-lcd
Includes 46 - 61.; |
278001360 |
— | ||
| replacement | |||||
|
46
|
46
278001471
Cadran info *gauge lcd
Includes 46 - 61.; |
278001471 |
— | ||
|
47
|
47
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
48
|
48
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
49
|
49
278000216 Joint de fil *seal-wire |
278000216 |
US $21.15 |
||
|
50
|
50
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
51
|
51
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
52
|
52
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
53
|
53
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
54
|
54
278000891 Bloc 4 circ.mal*housing-tab |
278000891 |
US $13.21 |
||
|
55
|
55
293150059 Rivet-pop 5/32 *rivet-pop 5/32 |
293150059 |
US $18.75 |
||
|
56
|
56
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
57
|
57
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
58
|
58
295500444
Ens.cordon sec.*safety lanyard kit
|
295500444 |
— | ||
| replacement | |||||
|
58
|
58
278002199 Cordon securite*lanyard-safety |
278002199 |
US $93.60 |
||
|
59
|
59
278001065 Joint de fil *seal-wire |
278001065 |
US $48.05 |
||
|
60
|
60
278000993
Bloc 26circ.mal*housing-tab
Includes 60 - 61.; |
278000993 |
— | ||
|
61
|
61
278001307 Joint de fil *seal-wire |
278001307 |
US $15.27 |
||
|
62
|
62
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
63
|
63
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
64
|
64
270600005 Soupape solenoi*valve-solenoid |
270600005 |
US $128.71 |
||
|
65
|
65
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
66
|
66
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
66
|
66
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
67
|
67
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
68
|
68
271001023
Support pompe *support-bilge
Includes 68 - 70.; |
271001023 |
— | ||
|
69
|
69
271000992
Support pompe *support-bilge
|
271000992 |
— | ||
|
70
|
70
274000752 3.mpon *pad |
274000752 |
US $13.21 |
||
|
71
|
71
278001176 Pompe cale *pump-bilgeIncludes 71 - 74.; |
278001176 |
US $220.29 |
||
|
72
|
72
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
73
|
73
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
74
|
74
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
