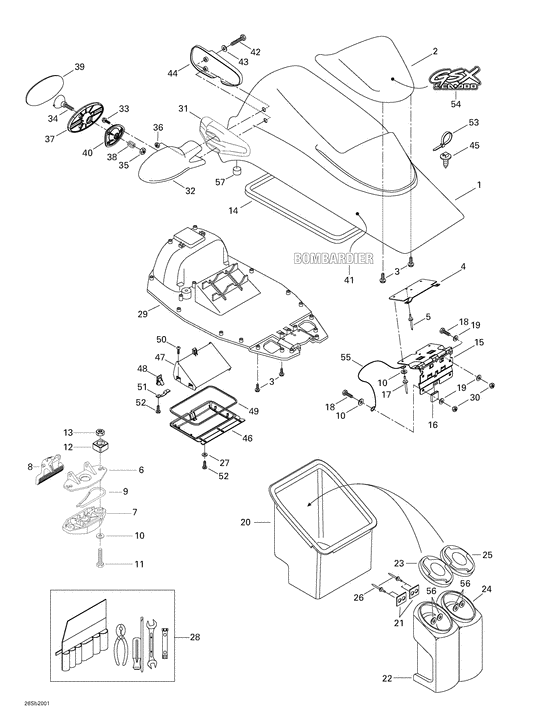

09- front storage compartment Diagram Bombardier GSX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269500401
Supp.miroir ga *supp-mirror lh
|
269500401 |
— | ||
|
|
269500419
Miroir ass.ga. *mirror-assy.lh
|
269500419 |
— | ||
|
|
269500384
Entretoise *spacer
|
269500384 |
— | ||
|
1
|
1
269500629
Couv.bagage sup*cover-stor.upp
|
269500629 |
— | ||
|
2
|
2
269500630
Deflecteur *deflector
|
269500630 |
— | ||
|
3
|
3
241141360 Screw-pt.hex.flange k40 x 13 |
241141360 |
US $21.75 |
||
|
4
|
4
269500280
Plaque retenue *plate-retainer
|
269500280 |
— | ||
|
5
|
5
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
6
|
6
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
6
|
6
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
7
|
7
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
7
|
7
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
8
|
8
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
8
|
8
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
9
|
9
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
10
|
10
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
11
|
11
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
12
|
12
269500252 Logement ecrou *housing-nut asIncludes 12 - 13.; |
269500252 |
US $19.22 |
||
|
13
|
13
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
14
|
14
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
14
|
14
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
15
|
15
269500613
Charniere stlss*hinge-stlss.
|
269500613 |
— | ||
|
16
|
16
293830046
Capuchon prot. *cap-protector
|
293830046 |
— | ||
|
17
|
17
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
18
|
18
205462060
Screw-socket bn.hd.iso.7380a2
|
205462060 |
— | ||
|
19
|
19
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
20
|
20
269500286
Coffre bagage *tray-storage
|
269500286 |
— | ||
| replacement | |||||
|
20
|
20
269500991 Coffre bag.arr.*tray-rear |
269500991 |
US $69.33 |
||
|
21
|
21
293250037 Joint etanche *gasket |
293250037 |
US $31.30 |
||
|
22
|
22
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
23
|
23
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
24
|
24
269500605
Boitier rang. *housing-storag
|
269500605 |
— | ||
| replacement | |||||
|
24
|
24
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
25
|
25
269500604
Capuchon rang. *cap-storage
|
269500604 |
— | ||
|
26
|
26
293150033 Rivet-pop 1/8 *rivet-pop 1/8 |
293150033 |
US $3.90 |
||
|
27
|
27
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
28
|
28
295000066
Owner tool kit
|
295000066 |
— | ||
|
29
|
29
269500655 Couv.bagage inf*cover-stor.low |
269500655 |
US $168.25 |
||
|
30
|
30
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
31
|
31
269500400
Supp.miroir dr.*supp-mirror rh
|
269500400 |
— | ||
|
32
|
32
269500418
Miroir ass.dr. *mirror-assy.rh
Includes 32 - 40.; |
269500418 |
— | ||
|
33
|
33
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
34
|
34
269500079
Rotule miroir *joint-ball
|
269500079 |
— | ||
|
35
|
35
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
36
|
36
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
38
|
38
269500453 Ressort miroir *spring-mirror |
269500453 |
US $10.86 |
||
|
39
|
39
269500454 Miroir *mirror |
269500454 |
US $37.79 |
||
|
41
|
41
219901564
Decal bombar. *decal-bomb.
|
219901564 |
— | ||
|
42
|
42
230084060
Screw-hex.cap din.931a2
|
230084060 |
— | ||
|
43
|
43
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
44
|
44
269500383
Entretoise *spacer
|
269500383 |
— | ||
|
45
|
45
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
46
|
46
269500656
Coffre gant inf*box-gloves
|
269500656 |
— | ||
|
47
|
47
269500519
Coffre gant sup*box-gloves upper
|
269500519 |
— | ||
|
48
|
48
269500657
Loquet *latch
|
269500657 |
— | ||
|
49
|
49
293250083
Joint etanche *gasket
|
293250083 |
— | ||
|
50
|
50
241731260 Screw-pt.ov.hd.ph.ka30 x 12 |
241731260 |
US $13.30 |
||
|
51
|
51
269500658
Plaque retenue *plate-retainer
|
269500658 |
— | ||
|
52
|
52
241141360 Screw-pt.hex.flange k40 x 13 |
241141360 |
US $21.75 |
||
|
53
|
53
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
54
|
54
219901563
Decal.ident.ltd*decal-ident.
|
219901563 |
— | ||
|
55
|
55
269500524 Cable retenue *cable-retainer |
269500524 |
US $31.59 |
||
|
56
|
56
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
57
|
57
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
