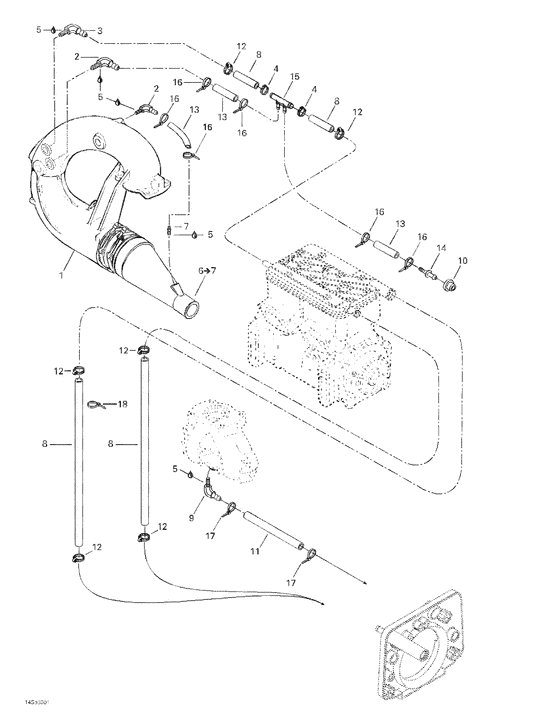

01- cooling system Diagram Bombardier GTI
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
274000980
Tuyau collect. *pipe-head
|
274000980 |
— | ||
| replacement | |||||
|
1
|
1
274001091
Tuy.col.peint *tune pipe p.
|
274001091 |
— | ||
|
2
|
2
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
3
|
3
293700023 Raccord coude90*fitting-elbow |
293700023 |
US $21.42 |
||
|
4
|
4
293650012 Bride serrage *clamp-oetiker |
293650012 |
US $46.65 |
||
|
5
|
5
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
6
|
6
274000488
Cone echapp. *cone-exhaust
Includes 6 - 7.; |
274000488 |
— | ||
| replacement | |||||
|
6
|
6
274001093 Cone echapp p. *cone-exh paintIncludes 6 - 7.; |
274001093 |
US $97.89 |
||
|
7
|
7
293710037 Raccord male *connector-male |
293710037 |
US $10.17 |
||
|
8
|
8
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
8
|
8
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
9
|
9
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
10
|
10
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
11
|
11
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
12
|
12
293650130
Bride serrage*hose clamp
|
293650130 |
— | ||
| replacement | |||||
|
12
|
12
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
13
|
13
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
14
|
14
293710039 Raccord droit *fitting-straig |
293710039 |
US $9.89 |
||
|
15
|
15
293710100 Raccord double *double "t" fitting |
293710100 |
US $14.54 |
||
|
16
|
16
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
17
|
17
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
18
|
18
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
