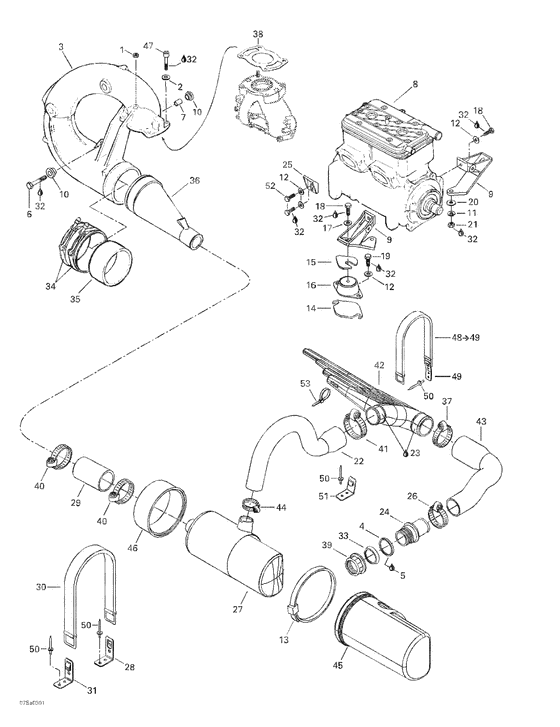

01- engine support and muffler Diagram Bombardier GTI
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
270000181
Supp.moteur ga.*supp-engine lh
|
270000181 |
— | ||
| replacement | |||||
|
|
270000597 Support moteur *support-engine |
270000597 |
US $98.89 |
||
|
|
270000007 Cale epaisseur *shim-1.3mm. |
270000007 |
US $48.55 |
||
|
|
270000025 Cale epaisseur *shim-1.3mm |
270000025 |
US $35.45 |
||
|
1
|
1
233101600 Nut-flange hexagonal din.6923-a2 |
233101600 |
US $34.25 |
||
|
2
|
2
211200051 Rondelle *washer-flat |
211200051 |
US $21.60 |
||
|
3
|
3
274000980
Tuyau collect. *pipe-head
|
274000980 |
— | ||
| replacement | |||||
|
3
|
3
274001091
Tuy.col.peint *tune pipe p.
|
274001091 |
— | ||
|
4
|
4
293250041 Joint etanche *gasket |
293250041 |
US $55.85 |
||
|
5
|
5
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
6
|
6
207084060 Screw-hex.cap din.931a2 |
207084060 |
US $14.35 |
||
|
7
|
7
274000114 Douille *bushing |
274000114 |
US $10.03 |
||
|
8
|
8
270000548
Moteur rotax 717 (argent)
|
270000548 |
— | ||
|
9
|
9
270000180
Supp.moteur dr.*supp-engine rh
|
270000180 |
— | ||
| replacement | |||||
|
9
|
9
270000596 Support moteur *support-engine |
270000596 |
US $100.93 |
||
|
10
|
10
293830031 Douille caout. *bushing-rubber |
293830031 |
US $40.65 |
||
|
11
|
11
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
14
|
14
270000006 Cale epaisseur *shim-0.40mm |
270000006 |
US $72.70 |
||
|
15
|
15
270000024 Cale epaisseur *shim-0.4mm |
270000024 |
US $70.90 |
||
|
16
|
16
270000425 Tampon ancrage *mount-rubber |
270000425 |
US $56.05 |
||
|
17
|
17
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
18
|
18
207182560 Screw-hex.cap din.933a2 |
207182560 |
US $7.65 |
||
|
19
|
19
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
20
|
20
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
21
|
21
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
22
|
22
274000873
Boyau echapp. *hose-exhaust
|
274000873 |
— | ||
|
23
|
23
293800090 Enduit etanche *sealant |
293800090 |
US $31.18 |
||
|
24
|
24
274000843
Sortie echapp. *outlet-exhaust
|
274000843 |
— | ||
|
25
|
25
270000179
Supp.mot.avant *supp-eng.front
|
270000179 |
— | ||
| replacement | |||||
|
25
|
25
270000598
Support moteur *support-engine
|
270000598 |
— | ||
|
26
|
26
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
27
|
27
274000788
Silenc.echapp. *muffler-noir
|
274000788 |
— | ||
|
28
|
28
293850075 Pince courroie*clip-strap 90 |
293850075 |
US $11.17 |
||
|
29
|
29
274000032 Boyau raccord *hose-exhaust |
274000032 |
US $36.69 |
||
|
30
|
30
293850036 Sangle res.ess.*strap-fuel tank |
293850036 |
US $18.22 |
||
|
31
|
31
293850076 Pince courroie *clip-strap 90 |
293850076 |
US $11.17 |
||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
274000225 Rondelle stab. *washer-stabilizing |
274000225 |
US $9.13 |
||
|
34
|
34
293650068 Bride serrage *clamp-norma |
293650068 |
US $20.37 |
||
|
35
|
35
274000074
Bague etanche *sealing ring
|
274000074 |
— | ||
|
36
|
36
274000488
Cone echapp. *cone-exhaust
|
274000488 |
— | ||
| replacement | |||||
|
36
|
36
274001093 Cone echapp p. *cone-exh paint |
274001093 |
US $97.89 |
||
|
37
|
37
204000079 Bride serrage *clamp-tridon |
204000079 |
US $10.52 |
||
|
38
|
38
420950255
Joint etanche *gasket
|
420950255 |
— | ||
|
39
|
39
274000224 Ecrou 72mm *nut-72mm |
274000224 |
US $16.61 |
||
|
40
|
40
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
41
|
41
293650107
Bride serrage *clamp-tridon
|
293650107 |
— | ||
|
42
|
42
274000700 Resonateur ga. *resonator-lh. |
274000700 |
US $145.83 |
||
|
43
|
43
274000874
Boyau echapp. *hose-exhaust
|
274000874 |
— | ||
|
44
|
44
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
45
|
45
274000806
Couvre silenc. *cover muffler
|
274000806 |
— | ||
|
46
|
46
274000803
Couvre silenc. *cover muffler
|
274000803 |
— | ||
|
47
|
47
205503060 Screw-socket din.912a2 s.grip |
205503060 |
US $4.57 |
||
|
48
|
48
293850026
Sangle res.ess.*strap-fuel tank
Includes 48 - 49.; |
293850026 |
— | ||
| replacement | |||||
|
48
|
48
293850082
Sangle ass`e *strap ass`y
Includes 48 - 49.; |
293850082 |
— | ||
|
49
|
49
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
50
|
50
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
51
|
51
293850030 Pince courroie *clip-strap |
293850030 |
US $12.22 |
||
|
52
|
52
207182060 Screw-hex.cap din.933a2 |
207182060 |
US $9.80 |
||
|
53
|
53
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
