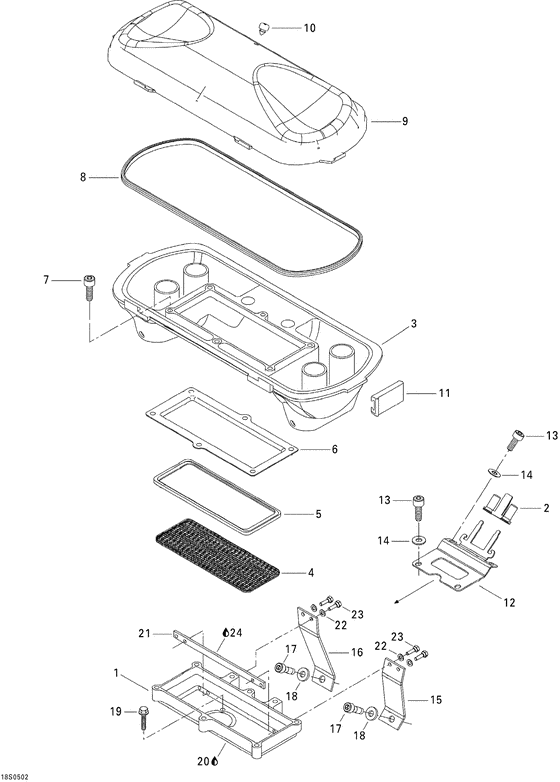

02- air intake Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
273000225
Carter flame *housing-arrest
|
273000225 |
— | ||
|
2
|
2
278000213 Isolateur *insulator |
278000213 |
US $40.66 |
||
|
3
|
3
273000103 Base silenc.adm*base-sil.air |
273000103 |
US $94.81 |
||
|
4
|
4
273000117 Coupe flamme *arrest-flame |
273000117 |
US $67.29 |
||
|
5
|
5
273000020 Solateur *insulator |
273000020 |
US $33.61 |
||
|
6
|
6
273000059
Disp.retenue *holder
|
273000059 |
— | ||
|
7
|
7
205562560 Screw-socket din.912a2 s.grip |
205562560 |
from US $3.67 |
||
|
8
|
8
293250023
Joint etanche *gasket
|
293250023 |
— | ||
|
9
|
9
273000115 Couv.silenc.adm*cover-sil.air |
273000115 |
US $44.83 |
||
|
10
|
10
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
11
|
11
273000006 Pince retenue *clip-retainer |
273000006 |
US $51.75 |
||
|
12
|
12
270000561 Support flamme *arrester support |
270000561 |
US $23.41 |
||
|
13
|
13
205561260 Screw-socket din.912a2 s.grip |
205561260 |
US $20.40 |
||
|
14
|
14
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
15
|
15
270000508 Support flamme *supp-arrester |
270000508 |
US $25.45 |
||
|
16
|
16
270000507
Support flamme *supp-arrester
|
270000507 |
— | ||
|
17
|
17
205582560 Screw-socket din.912a2 s.grip |
205582560 |
US $14.35 |
||
|
18
|
18
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
19
|
19
207562560 Screw-hex.flange din.6921 s.grip |
207562560 |
US $49.50 |
||
|
20
|
20
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
21
|
21
270000637
Plaque filetee *plate-threaded
|
270000637 |
— | ||
|
22
|
22
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
23
|
23
207351660 Screw-hex.cap din.933a2 s.grip |
207351660 |
US $21.75 |
||
|
24
|
24
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
