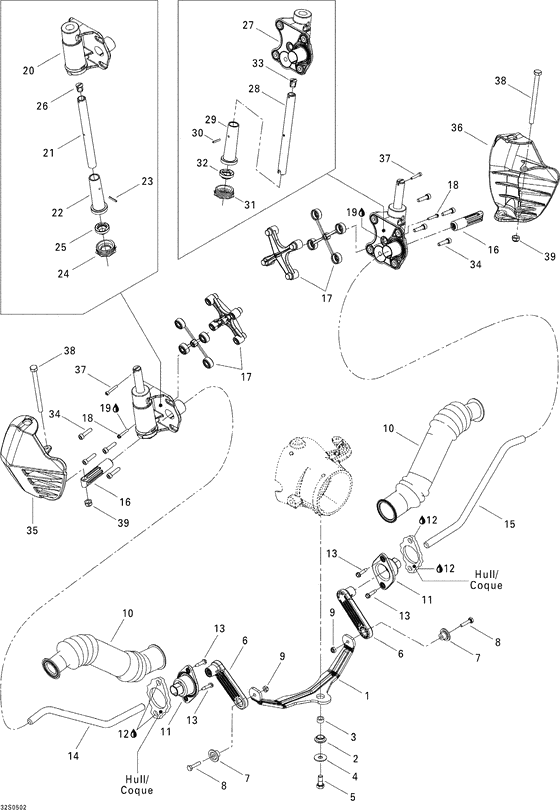

07- off power assisted steering Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277000979 Bras en "u" *lever "u |
277000979 |
US $38.83 |
||
|
2
|
2
271000321 Douil.venturi*bushing-venturi |
271000321 |
US $48.70 |
||
|
3
|
3
277000980 Douille *bushing |
277000980 |
US $16.95 |
||
|
4
|
4
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
5
|
5
207382060 Screw-hex.cap din.933a2 s.grip |
207382060 |
US $27 |
||
|
6
|
6
265000013 Levier *lever |
265000013 |
US $14.67 |
||
|
7
|
7
293900042 Douille epaul. *bushing-flange |
293900042 |
US $20.96 |
||
|
8
|
8
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
9
|
9
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
10
|
10
277001123 Tube etanche*seal tube |
277001123 |
US $48.72 |
||
|
11
|
11
277001164 Passe tige *grommet-rod |
277001164 |
US $19.92 |
||
|
12
|
12
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
13
|
13
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
14
|
14
277001019
Tige gauche *tie-rod lh.
|
277001019 |
— | ||
|
15
|
15
277001062
Tige droite *tie-rod rh.
|
277001062 |
— | ||
|
16
|
16
265000014 Raccord *adaptor |
265000014 |
US $36.29 |
||
|
17
|
17
277001177 Plaque supp.*support plate |
277001177 |
US $28.37 |
||
|
18
|
18
241142560 Screw-pt.hex.flange k40 x 25 |
241142560 |
from US $2.54 |
||
|
19
|
19
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
20
|
20
265000005
Support gauche *lh. support
|
265000005 |
— | ||
| replacement | |||||
|
20
|
20
265000039 Support gauche *lh.support |
265000039 |
US $27.29 |
||
|
21
|
21
277001091 Tige-pivot *pivot-rod |
277001091 |
US $60.44 |
||
|
22
|
22
265000002
Entretoise *spacer
|
265000002 |
— | ||
|
23
|
23
250400014 Spring-pin iso.8752 m3 x 20 |
250400014 |
US $21.15 |
||
|
24
|
24
265000009
Couvercle *cover-threaded
|
265000009 |
— | ||
|
25
|
25
277000985
Bague d usure *wear ring
|
277000985 |
— | ||
|
26
|
26
277001185 Ajout *insert |
277001185 |
from US $7.82 |
||
|
27
|
27
265000003
Support droit *rh. support
|
265000003 |
— | ||
| replacement | |||||
|
27
|
27
265000040 Support droit *rh.support |
265000040 |
US $27.29 |
||
|
28
|
28
277001091 Tige-pivot *pivot-rod |
277001091 |
US $60.44 |
||
|
29
|
29
265000002
Entretoise *spacer
|
265000002 |
— | ||
|
30
|
30
250400014 Spring-pin iso.8752 m3 x 20 |
250400014 |
US $21.15 |
||
|
31
|
31
265000009
Couvercle *cover-threaded
|
265000009 |
— | ||
|
32
|
32
277000985
Bague d usure *wear ring
|
277000985 |
— | ||
|
33
|
33
277001185 Ajout *insert |
277001185 |
from US $7.82 |
||
|
34
|
34
205562560 Screw-socket din.912a2 s.grip |
205562560 |
from US $3.67 |
||
|
35
|
35
277001143
Derive gauche *lh.rudder
|
277001143 |
— | ||
| replacement | |||||
|
35
|
35
277001486
Derive gauche *lh.rudder
|
277001486 |
— | ||
|
36
|
36
277001144
Derive droite *rh.rudder
|
277001144 |
— | ||
| replacement | |||||
|
36
|
36
277001487 Derive droite *rh.rudder |
277001487 |
US $54.59 |
||
|
37
|
37
205042560 Screw-socket hd.din.912a2 |
205042560 |
from US $4.80 |
||
|
38
|
38
250000077 Screw-hex.cap m8 x 110 |
250000077 |
from US $6.49 |
||
|
39
|
39
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
