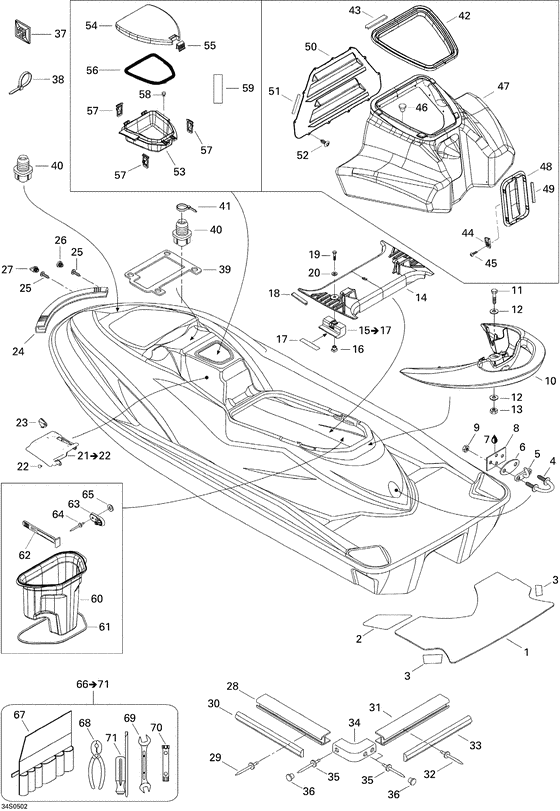

09- body Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
291002152
Tapis arriere *carpet-rear
|
291002152 |
— | ||
| replacement | |||||
|
1
|
1
291002422
Tapis arriere *carpet-rear
|
291002422 |
— | ||
|
2
|
2
291001665
Antiderapant-dr*anti-skid-rh
|
291001665 |
— | ||
|
2
|
2
291001666
Antiderapant-ga*anti-skid-lh
|
291001666 |
— | ||
|
3
|
3
291001919
Antiderapant *anti-skid
|
291001919 |
— | ||
|
4
|
4
292000011 Bride en u *clamp-u |
292000011 |
US $68.29 |
||
|
5
|
5
291001232
Crochet *hook
|
291001232 |
— | ||
| replacement | |||||
|
5
|
5
291002351 Crochet *hook |
291002351 |
US $41.77 |
||
|
6
|
6
291001386 Plaque finition*plate-finition |
291001386 |
US $11.68 |
||
|
7
|
7
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
8
|
8
291001387 Plaque retenue *plate-retainer |
291001387 |
US $14.67 |
||
|
9
|
9
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
10
|
10
269000812 Poignee *grag handle |
269000812 |
US $93.81 |
||
|
11
|
11
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
14
|
14
291001854
Pont superieur *upper brige
|
291001854 |
— | ||
|
15
|
15
291001931 Attache pont *bridge-linkIncludes 15 to 17; |
291001931 |
US $22.02 |
||
|
16
|
16
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
17
|
17
291001932 Tampon *pad |
291001932 |
US $11.68 |
||
|
18
|
18
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
19
|
19
207384060 Screw-hex.cap din.933a2 s.grip |
207384060 |
from US $4.08 |
||
|
20
|
20
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
21
|
21
291001650
Grille gauche *grill-lh.
Includes 21 to 22; |
291001650 |
— | ||
|
21
|
21
291001649
Grille droite *grill-rh
Includes 21 to 22; |
291001649 |
— | ||
|
22
|
22
293730010 Dard noir *dart-black |
293730010 |
US $13.40 |
||
|
23
|
23
291001730
Entretoise *spacer
|
291001730 |
— | ||
|
24
|
24
291001942
Nez pare-chocs *nose-bumper
|
291001942 |
— | ||
|
25
|
25
250000236 Screw-plastite torx button head |
250000236 |
US $31.10 |
||
|
26
|
26
291001519 Bouchon parecho*plug-bumper |
291001519 |
US $40.98 |
||
|
27
|
27
291001040
Bouchon parecho*plug-bumper
|
291001040 |
— | ||
|
28
|
28
291001606
Pare-chocs lat.*bumper-side
|
291001606 |
— | ||
| replacement | |||||
|
28
|
28
204050270 Pare-chocs lat.*bumper-side |
204050270 |
US $149.14 |
||
|
29
|
29
293150005 Rivet-pop 3/16 *rivet-pop 3/16 |
293150005 |
US $6.80 |
||
|
30
|
30
291002001
Moulure *bumper trim
|
291002001 |
— | ||
| replacement | |||||
|
30
|
30
291001840 Moulure *bumper trim |
291001840 |
US $56.05 |
||
|
31
|
31
291001483
Pare-chocs arr.*bumper-rear
|
291001483 |
— | ||
| replacement | |||||
|
31
|
31
291002242 Pare-chocs arr.*bumper-rear |
291002242 |
US $110.13 |
||
|
32
|
32
293150005 Rivet-pop 3/16 *rivet-pop 3/16 |
293150005 |
US $6.80 |
||
|
33
|
33
291001537
Moulure *bumper trim
|
291001537 |
— | ||
| replacement | |||||
|
33
|
33
291001670
Moulure *bumper trim
|
291001670 |
— | ||
|
34
|
34
291001505
Coin pare-chocs*corner-bumper
|
291001505 |
— | ||
| replacement | |||||
|
34
|
34
291002244 Coin pare-chocs*corner-bumper |
291002244 |
from US $35.34 |
||
|
35
|
35
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
36
|
36
291000339 Bouchon parecho*plug-bumper |
291000339 |
from US $4.90 |
||
|
37
|
37
293750025 Ancrage tie rap*mount-tie rap |
293750025 |
US $7.65 |
||
|
38
|
38
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
38
|
38
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
39
|
39
293250068
Joint etanche *gasket
|
293250068 |
— | ||
| replacement | |||||
|
39
|
39
293250171 Joint etanche *gasket |
293250171 |
US $35.64 |
||
|
40
|
40
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
41
|
41
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
42
|
42
269501129
Moulure coffre *trim-cover
|
269501129 |
— | ||
|
43
|
43
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
44
|
44
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
45
|
45
241642060 Screw-pt.flange pan hd.k40 x 20 |
241642060 |
US $14.80 |
||
|
46
|
46
291000279 Bouchon noir *plug-black |
291000279 |
US $25.04 |
||
|
47
|
47
269500877
New Genuine Part
|
269500877 |
— | ||
|
48
|
48
291001744
Portiere avant *door-front
|
291001744 |
— | ||
|
49
|
49
293250087 Joint etanche *gasket |
293250087 |
US $7.31 |
||
|
50
|
50
291001631
Portiere arr. *door-rear
|
291001631 |
— | ||
|
51
|
51
293250087 Joint etanche *gasket |
293250087 |
US $7.31 |
||
|
52
|
52
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
52
|
52
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
53
|
53
269500717
Coffre a gant *box-gloves
|
269500717 |
— | ||
|
54
|
54
269500928 Porte de coffre*door-box |
269500928 |
US $81.57 |
||
|
55
|
55
269500719
Loquet *latch
|
269500719 |
— | ||
|
56
|
56
293250100 Joint etanche *gasket |
293250100 |
US $18.85 |
||
|
57
|
57
269500820 Loquet retenue *latch-retainer |
269500820 |
US $16.76 |
||
|
58
|
58
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
59
|
59
293250099 Joint etanche *gasket |
293250099 |
US $8.76 |
||
|
60
|
60
269500990
Coffre bag.arr.*tray-rear
|
269500990 |
— | ||
|
61
|
61
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
62
|
62
269500408 Sangle *strap |
269500408 |
US $14.67 |
||
|
63
|
63
269500521 Crochet *hook |
269500521 |
US $8.38 |
||
|
64
|
64
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
65
|
65
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
66
|
66
294000680
Trousse outil *kit-tool owner
Includes 66 to 71; |
294000680 |
— | ||
| replacement | |||||
|
66
|
66
294000743
Trousse outil *kit-tool owner
Includes 66 to 71; |
294000743 |
— | ||
|
69
|
69
529017300
Cle ouverte 10 *wrench-fork 10
|
529017300 |
— | ||
|
71
|
71
529019200
Tournevis *screw-driver
|
529019200 |
— | ||
| replacement | |||||
|
71
|
71
529000004 Tournevis *screw-driver |
529000004 |
US $12.19 |
||
