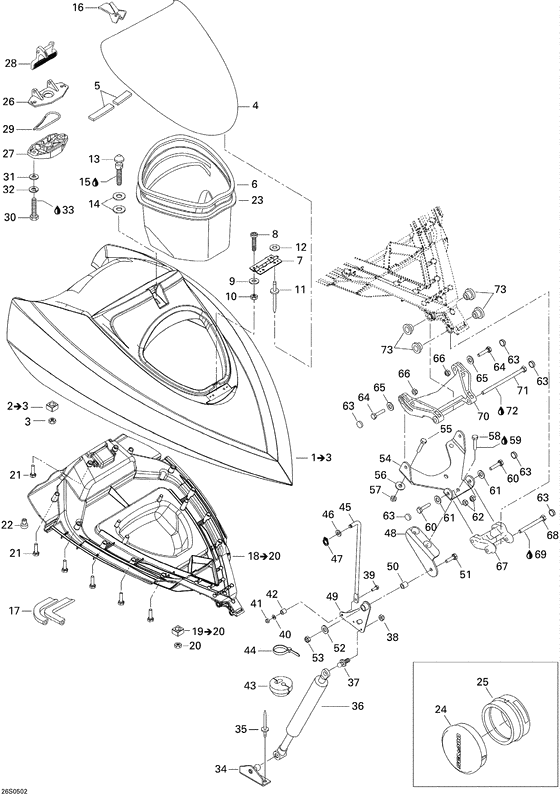

09- front storage compartment Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269501380
Couv.bag.sub.as*storage cover
Includes 1 to 3; |
269501380 |
— | ||
|
2
|
2
269500252 Logement ecrou *housing-nut asIncludes 2 to 3; |
269500252 |
US $19.22 |
||
|
3
|
3
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
4
|
4
269500337
Couv.acces *cover-access
|
269500337 |
— | ||
|
5
|
5
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
6
|
6
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
7
|
7
269500338 Charniere *hinge |
269500338 |
US $13.12 |
||
|
8
|
8
205451660 Screw-socket bn.hd.iso.7380a2 |
205451660 |
US $14.80 |
||
|
9
|
9
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
10
|
10
232551200 Nut-stop elastic din.985 |
232551200 |
US $19 |
||
|
11
|
11
204000081 Rivet-pop 3/16 *rivet-pop 3/16 |
204000081 |
US $19.20 |
||
|
12
|
12
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
13
|
13
291001242 Ergot *lug |
291001242 |
US $23.07 |
||
|
14
|
14
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
16
|
16
269501125
Loquet *latch
|
269501125 |
— | ||
| replacement | |||||
|
16
|
16
269501487 Loquet *latch |
269501487 |
US $36.24 |
||
|
17
|
17
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
18
|
18
269501420
Couvercle sub. *cover sub.
Includes 18 to 20; |
269501420 |
— | ||
|
19
|
19
269500252 Logement ecrou *housing-nut asIncludes 19 to 20; |
269500252 |
US $19.22 |
||
|
20
|
20
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
21
|
21
241141360 Screw-pt.hex.flange k40 x 13 |
241141360 |
US $21.75 |
||
|
22
|
22
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
23
|
23
269501121 Coffre a gant *box-gloves |
269501121 |
US $23.41 |
||
|
24
|
24
293000068
Capuchon jauge *cap-gauge
|
293000068 |
— | ||
|
25
|
25
293720047
Support jauge *support-gauge
|
293720047 |
— | ||
|
26
|
26
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
27
|
27
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
27
|
27
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
28
|
28
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
29
|
29
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
30
|
30
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
31
|
31
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
32
|
32
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
33
|
33
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
34
|
34
291002124 Supp.amortis. *support-shock |
291002124 |
US $27.29 |
||
|
35
|
35
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
36
|
36
269500988 Amortisseur *shock-gaz |
269500988 |
US $72.37 |
||
|
37
|
37
250300016 Goujon a tete *ball-stud |
250300016 |
US $15.95 |
||
|
38
|
38
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
39
|
39
207141660 Screw-hex.cap din.933a2 |
207141660 |
US $9.50 |
||
|
40
|
40
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
41
|
41
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
42
|
42
269500841
Entretoise *spacer
|
269500841 |
— | ||
|
43
|
43
293720070 Passe-fils *grommet-cable |
293720070 |
US $10.47 |
||
|
44
|
44
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
45
|
45
269500842 Tige *rod |
269500842 |
US $41.77 |
||
|
46
|
46
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
47
|
47
293370005 Circlip *circlip |
293370005 |
US $48.55 |
||
|
48
|
48
269500846
Supp.levier *lever-support
|
269500846 |
— | ||
|
49
|
49
269501020
Levier soude *lever-welded
|
269501020 |
— | ||
|
50
|
50
269501022 Entretoise *spacer |
269501022 |
US $13.60 |
||
|
51
|
51
207163060 Screw-hex.cap din.933a2 |
207163060 |
US $19.20 |
||
|
52
|
52
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
53
|
53
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
54
|
54
269500703 Support pivot *support-pivot |
269500703 |
US $41.77 |
||
|
55
|
55
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
56
|
56
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
57
|
57
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
58
|
58
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
59
|
59
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
60
|
60
211000022 Screw-hex.cap special |
211000022 |
US $27.86 |
||
|
61
|
61
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
62
|
62
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
63
|
63
414436900 Cap.press.noir *cap-snap black |
414436900 |
US $4.98 |
||
|
64
|
64
211000022 Screw-hex.cap special |
211000022 |
US $27.86 |
||
|
65
|
65
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
66
|
66
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
67
|
67
269500704 Bras avant *arm-front |
269500704 |
from US $43.98 |
||
|
68
|
68
207066060 Screw-hex.cap din.931a2 |
207066060 |
US $28.34 |
||
|
69
|
69
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
70
|
70
269500705
Bras arriere*arm-rear
|
269500705 |
— | ||
| replacement | |||||
|
70
|
70
269501483 Bras arriere *arm-arriere |
269501483 |
US $22.02 |
||
|
71
|
71
230060060 Screw-hex.cap din.931a2 |
230060060 |
US $9.40 |
||
|
72
|
72
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
73
|
73
269500706 Manchon *sleeve |
269500706 |
US $6 |
||
