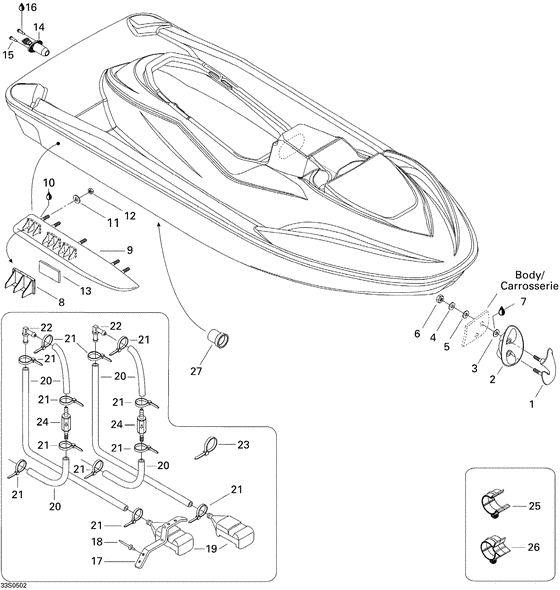

09- hull Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
292000710
Amarre blanche *bow-eye white
|
292000710 |
— | ||
|
2
|
2
292000511
Coquille blanch*shell-white
|
292000511 |
— | ||
|
3
|
3
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
4
|
4
250200011 Washer-flat stlss. m8 |
250200011 |
US $4.85 |
||
|
5
|
5
293830037 Rondelle caout.*washer-rubber |
293830037 |
US $20.65 |
||
|
6
|
6
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
7
|
7
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
8
|
8
293450149
Ajout stab. *insert-stab.
|
293450149 |
— | ||
|
9
|
9
292000595 Stabilisat.ga. *sponson-lh. |
292000595 |
US $110.13 |
||
|
9
|
9
292000594 Stabilisat.dr. *sponson-rh. |
292000594 |
US $110.13 |
||
|
10
|
10
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
11
|
11
250200046 Flat washer m6 * |
250200046 |
US $58.30 |
||
|
12
|
12
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
13
|
13
292000414 Coussinet *cushion |
292000414 |
US $24.39 |
||
|
14
|
14
292000897
Bouch.purge*drain plug ass y
|
292000897 |
— | ||
| replacement | |||||
|
14
|
14
292001075
Bouch.purge*drain plug ass y
|
292001075 |
— | ||
|
15
|
15
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
16
|
16
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
17
|
17
292000398 Pince ress.ga. *clip-spring lh |
292000398 |
US $13.21 |
||
|
18
|
18
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
19
|
19
292000688
Tamis declenche*screen-bailer
|
292000688 |
— | ||
|
20
|
20
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
21
|
21
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
22
|
22
293710057 Raccord coude90*fitting-elbow |
293710057 |
US $7.09 |
||
|
23
|
23
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
24
|
24
276000093
Soupape securit*valve-check
|
276000093 |
— | ||
|
25
|
25
275500527 Attache *retainer |
275500527 |
US $4.13 |
||
|
26
|
26
275500590 Attache *retainer |
275500590 |
US $9.79 |
||
|
27
|
27
292000075 Passe-coque *hull-thru fitt |
292000075 |
US $84.61 |
||
