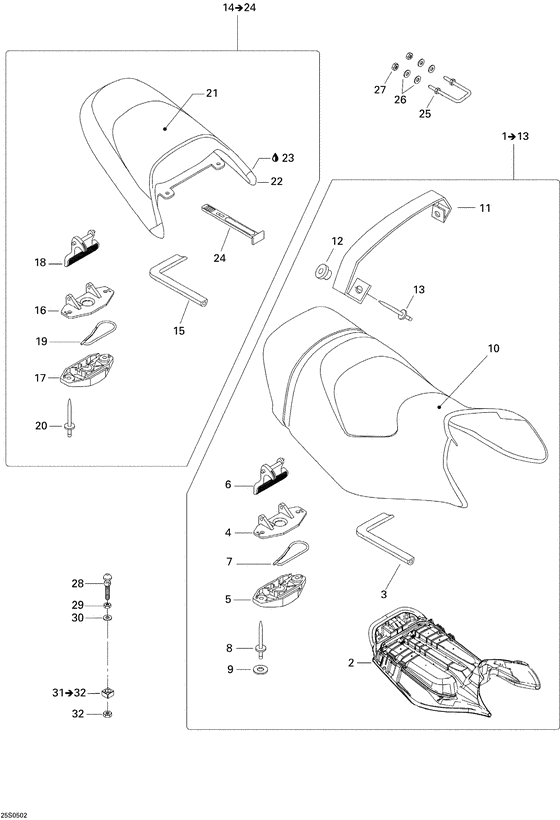

09- seat Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269001168 Siege assemble *seat ass yIncludes 1 to 13; |
269001168 |
US $733.35 |
||
|
2
|
2
269000829
Base de siege *base-seat
|
269000829 |
— | ||
|
3
|
3
293200062
Joint etanche *seal
|
293200062 |
— | ||
| replacement | |||||
|
3
|
3
293200107
Joint etanche *seal
|
293200107 |
— | ||
|
4
|
4
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
5
|
5
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
5
|
5
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
6
|
6
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
7
|
7
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
8
|
8
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
9
|
9
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
11
|
11
269001170
Sangle de siege*strap-seat
|
269001170 |
— | ||
|
12
|
12
293720067 Passe-fils *grommet |
293720067 |
US $12.55 |
||
|
13
|
13
293150078 Rivet-pop 1/4 *rivet-pop |
293150078 |
US $8 |
||
|
14
|
14
269001171
Siege assemble *seat ass y
Includes 14 to 24; |
269001171 |
— | ||
|
15
|
15
293200062
Joint etanche *seal
|
293200062 |
— | ||
| replacement | |||||
|
15
|
15
293200107
Joint etanche *seal
|
293200107 |
— | ||
|
16
|
16
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
17
|
17
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
17
|
17
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
18
|
18
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
19
|
19
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
20
|
20
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
22
|
22
269001173
Coin siege dr. *corner-seat rh.
|
269001173 |
— | ||
|
22
|
22
269001174
Coin siege ga. *corner-seat lh.
|
269001174 |
— | ||
|
23
|
23
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
24
|
24
269500408 Sangle *strap |
269500408 |
US $14.67 |
||
|
25
|
25
291001527
Amarre de siege*bow-eye seat
|
291001527 |
— | ||
|
26
|
26
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
27
|
27
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
28
|
28
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
29
|
29
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
30
|
30
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
31
|
31
271000598 Logement ecrou *housing-nutIncludes 31 to 32; |
271000598 |
US $14.67 |
||
|
32
|
32
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
