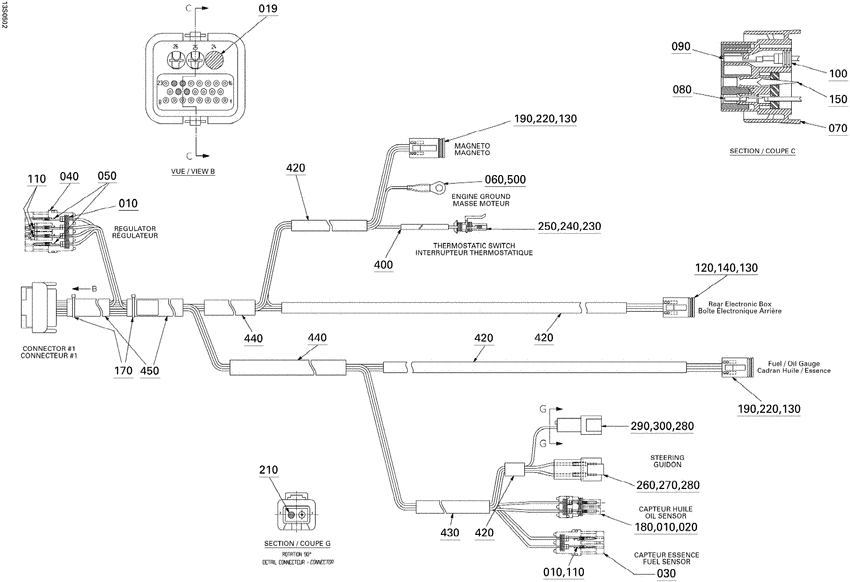

10- electrical harness Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278002084
Cablage princ. *wiring harnness
Includes 1 to 500; |
278002084 |
— | ||
|
10
|
10
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
19
|
19
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
20
|
20
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
30
|
30
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
40
|
40
278000394
Bloc 4 circ.fem*housing-tab
|
278000394 |
— | ||
|
50
|
50
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
60
|
60
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
70
|
70
278000993
Bloc 26circ.mal*housing-tab
|
278000993 |
— | ||
|
80
|
80
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
90
|
90
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
100
|
100
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
110
|
110
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
120
|
120
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
130
|
130
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
140
|
140
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
150
|
150
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
170
|
170
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
180
|
180
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
190
|
190
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
210
|
210
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
220
|
220
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $41 |
||
|
230
|
230
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
240
|
240
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
250
|
250
278001012 Bloc 1 circ.mal*housing-tab |
278001012 |
US $84.60 |
||
|
260
|
260
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
270
|
270
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
280
|
280
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
290
|
290
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
300
|
300
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
