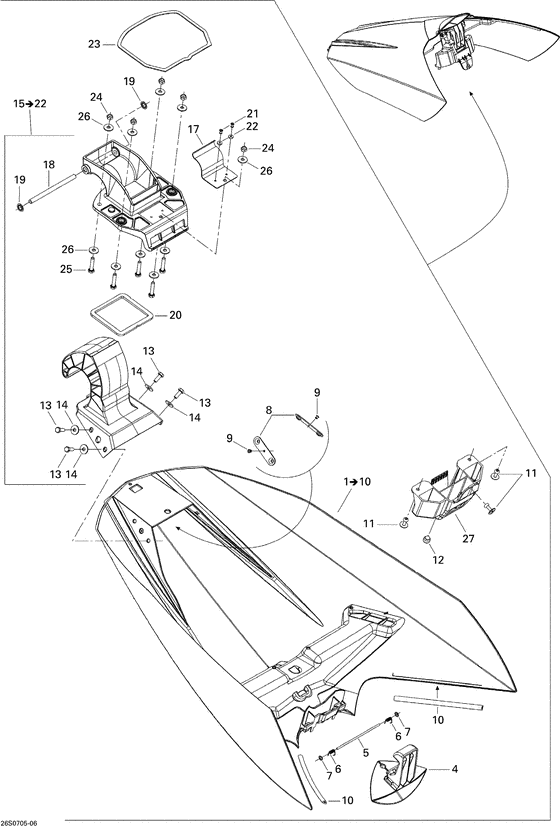

09- front cover Diagram Bombardier GTI
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269501626 Couv.bag.sub.as*storage coverIncludes 1 to 10; |
269501626 |
US $563.01 |
||
|
4
|
4
269700098 Levier loquet *lever-latch |
269700098 |
US $28.31 |
||
|
5
|
5
269501479 Goupille *pin |
269501479 |
US $12.58 |
||
|
6
|
6
291000922 Ressort loquet *latch spring |
291000922 |
US $42.95 |
||
|
7
|
7
250100061 Push nut |
250100061 |
US $2.01 |
||
|
8
|
8
277001479 Plaque retenu *plate |
277001479 |
US $14.67 |
||
|
9
|
9
293150006 Rivet-pop 1/8 *rivet-pop 1/8 |
293150006 |
US $4.10 |
||
|
10
|
10
293250176 Joint etanche *gasket |
293250176 |
US $12.58 |
||
|
11
|
11
293150123 Rivet-pop 3/16 *rivet-pop 3/16 |
293150123 |
US $28.75 |
||
|
12
|
12
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
13
|
13
207361660 Screw-hex.cap din.933a2 s.grip |
207361660 |
US $14.80 |
||
|
14
|
14
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
15
|
15
269501446 Penture ass *hinge assyIncludes 15 to 22; |
269501446 |
US $89.73 |
||
|
17
|
17
269700099 Ressort penture*hinge spring |
269700099 |
US $20.96 |
||
|
18
|
18
269700024 Axe rotation *axle |
269700024 |
US $10.47 |
||
|
19
|
19
250100046 Ecrou pression *push-nut |
250100046 |
US $27.40 |
||
|
20
|
20
293250155 Joint etanche *gasket |
293250155 |
US $8.38 |
||
|
21
|
21
293150143 Rivet-pop 1/8 *rivet-pop 1/8 |
293150143 |
US $16.25 |
||
|
22
|
22
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
23
|
23
293250166 Joint etanche *gasket |
293250166 |
US $12.58 |
||
|
24
|
24
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
25
|
25
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
26
|
26
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
27
|
27
269501480
Base loquet. *latch base
|
269501480 |
— |
