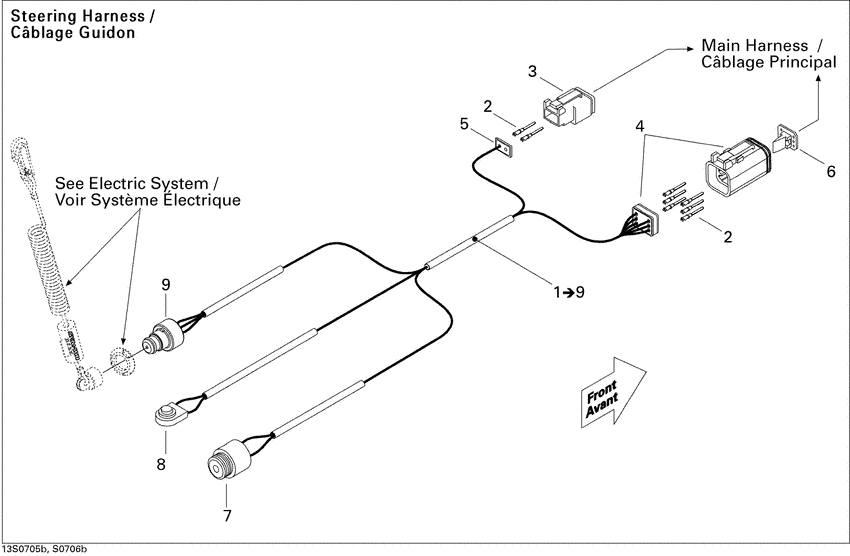

10- electrical harness 2 Diagram Bombardier GTI
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278002170
Cablage guidon *steerring harness
Includes 1 to 9; |
278002170 |
— | ||
|
2
|
2
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
3
|
3
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
4
|
4
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
5
|
5
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
6
|
6
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
7
|
7
278001586
Avertisseur *buzzer
|
278001586 |
— | ||
|
8
|
8
278001733 Interrupteur *switch-ass y |
278001733 |
US $49.93 |
||
|
9
|
9
278002055
Inter.urgence *safety switch
|
278002055 |
— |
