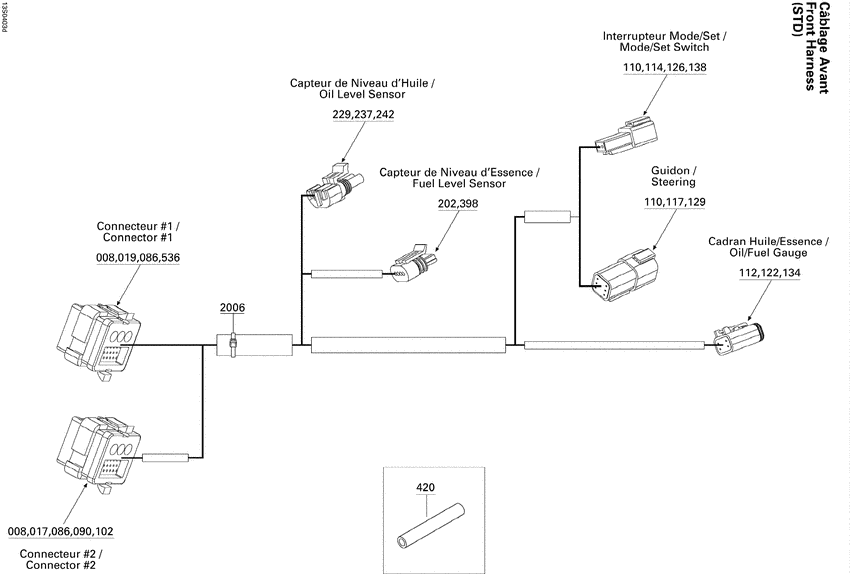

10- front harness (STD) Diagram Bombardier GTI
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
278001941
Cablage avant *front harness
|
278001941 |
— | ||
|
8
|
8
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
17
|
17
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
19
|
19
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
86
|
86
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
90
|
90
278001062
Bloc 26circ.mal*housing-tab
|
278001062 |
— | ||
|
102
|
102
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
110
|
110
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
112
|
112
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
114
|
114
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
117
|
117
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
122
|
122
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
126
|
126
409207900 Logement male *housing-male |
409207900 |
US $10.17 |
||
|
129
|
129
278000635 Bloc 4 circ.fem*housing-tab |
278000635 |
US $16.92 |
||
|
134
|
134
515175276 Verrou male *lock-male |
515175276 |
US $5.20 |
||
|
138
|
138
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
202
|
202
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
229
|
229
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
237
|
237
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
242
|
242
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
398
|
398
278001308 Bloc 4 circ.mal*housing-tab |
278001308 |
US $13.60 |
||
|
420
|
420
293100012
Gaine *protector tube
|
293100012 |
— | ||
|
420
|
420
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
420
|
420
293100011
Gaine vinyle *tubing-pvc
|
293100011 |
— | ||
|
420
|
420
512059668
Gaine thermo. *shrink tubing
|
512059668 |
— | ||
|
536
|
536
278000993
Bloc 26circ.mal*housing-tab
|
278000993 |
— | ||
|
2006
|
2006
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
