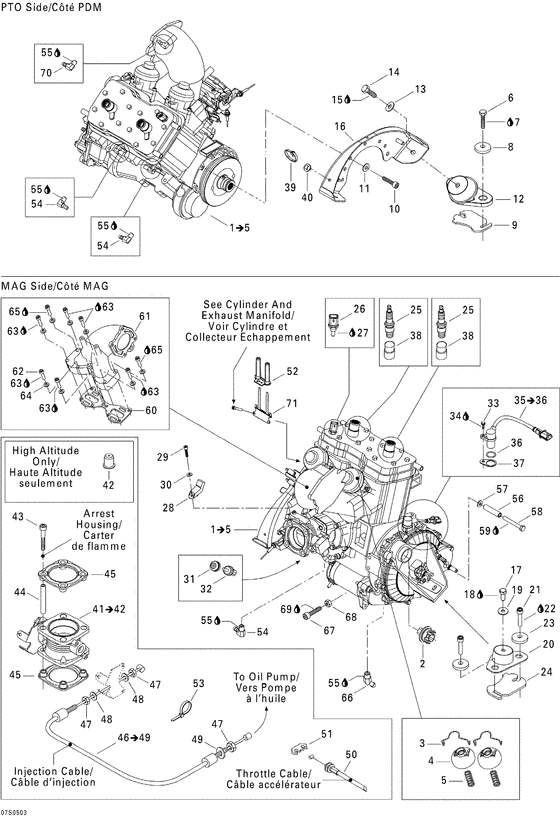

01- engine Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
270000647
Moteur 787 sdi *engine-787 sdi
Includes 1 to 5; |
270000647 |
— | ||
|
2
|
2
420966525 Adaptateur ass.*adaptor-assy. |
420966525 |
US $48.93 |
||
|
3
|
3
420838083 Pince a ressort*clip-spring |
420838083 |
US $17.74 |
||
|
4
|
4
420939137 Ressort rave *rave spring |
420939137 |
from US $21.46 |
||
|
5
|
5
420911558 Couvercle soup.*cover-valve |
420911558 |
US $26.49 |
||
|
6
|
6
205084060 Screw-socket hd.din.912a2 |
205084060 |
US $14.20 |
||
|
7
|
7
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
8
|
8
250200018 Rondelle coniq.*washer-cone |
250200018 |
US $14.52 |
||
|
9
|
9
270000446
Cale epaisseur *shim-1.3mm.
|
270000446 |
— | ||
|
10
|
10
205582560 Screw-socket din.912a2 s.grip |
205582560 |
US $14.35 |
||
|
11
|
11
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
12
|
12
270000633
Tampon ancrage*mount-rubber
|
270000633 |
— | ||
| replacements | |||||
|
12
|
12
270000688
Tampon ancrage *mount-rubber
|
270000688 |
— | ||
|
12
|
12
270001099 Engine Support Assy |
270001099 |
US $85.80 |
||
|
13
|
13
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
14
|
14
207181660 Screw-hex.cap din.933a2 |
207181660 |
US $10.65 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
16
|
16
270000584
Support-moteur *support-engine
|
270000584 |
— | ||
|
17
|
17
207182060 Screw-hex.cap din.933a2 |
207182060 |
US $9.80 |
||
|
18
|
18
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
19
|
19
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
20
|
20
270000588 Tampon ancrage *mount-rubber |
270000588 |
US $76.45 |
||
|
21
|
21
205084060 Screw-socket hd.din.912a2 |
205084060 |
US $14.20 |
||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
23
|
23
250200018 Rondelle coniq.*washer-cone |
250200018 |
US $14.52 |
||
|
24
|
24
270000446
Cale epaisseur *shim-1.3mm.
|
270000446 |
— | ||
|
25
|
25
278000609
Bougie br8es *plug-spark br8es
|
278000609 |
— | ||
| replacement | |||||
|
25
|
25
219703119 SPARK PLUG, NGK BR8-ES |
219703119 |
from US $10.34 |
||
|
26
|
26
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
26
|
26
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
27
|
27
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
28
|
28
270600040 Capteur press. *sensor-press. |
270600040 |
US $210.65 |
||
|
29
|
29
205561260 Screw-socket din.912a2 s.grip |
205561260 |
US $20.40 |
||
|
30
|
30
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
31
|
31
278001054 Isolateur *insulator |
278001054 |
US $11.17 |
||
|
32
|
32
270600000 Capteur temp. *sensor-air |
270600000 |
US $88.69 |
||
|
33
|
33
210361660 Screw-forming hex.din.7500-a2 |
210361660 |
US $98 |
||
|
34
|
34
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
35
|
35
278001874
Capteur *sensor
Includes 35 to 36; |
278001874 |
— | ||
|
37
|
37
270000661
Cale *shim
|
270000661 |
— | ||
|
38
|
38
278001380 Capuchon prot. *cap-protector |
278001380 |
US $17.29 |
||
|
39
|
39
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
40
|
40
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
41
|
41
270600092 Carter accelera*body-throttleIncludes 41 to 42; |
270600092 |
US $506.89 |
||
|
42
|
42
270600097
Capuchon *cap
|
270600097 |
— | ||
|
43
|
43
205569060 Screw-socket din.912a2 s.grip |
205569060 |
US $21.10 |
||
|
44
|
44
275500352 Tube *tube |
275500352 |
US $14.25 |
||
|
45
|
45
293250071 Joint etanche *gasket |
293250071 |
US $12.19 |
||
|
46
|
46
270000437 Cable injection*cable-inject.Includes 46 to 49; |
270000437 |
US $71.35 |
||
|
47
|
47
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
48
|
48
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
49
|
49
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
50
|
50
277000847 Cable accelerat*cable-throttle |
277000847 |
US $96.87 |
||
|
51
|
51
277000279 Patte verrouil.*lock-tab |
277000279 |
US $45.65 |
||
|
52
|
52
278001512 Isolateur *insulator |
278001512 |
US $10.47 |
||
|
53
|
53
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
54
|
54
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
55
|
55
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
56
|
56
275500640
Tube *tube
|
275500640 |
— | ||
|
57
|
57
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
58
|
58
207066060 Screw-hex.cap din.931a2 |
207066060 |
US $28.34 |
||
|
59
|
59
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
60
|
60
420931481 Exhaust manifold gasket |
420931481 |
US $18.33 |
||
|
61
|
61
420979483 Collec. d echap*exhaust manifold black |
420979483 |
US $378.39 |
||
|
62
|
62
205006060 Screw-socket hd.din.912a2 |
205006060 |
US $29.15 |
||
|
63
|
63
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
64
|
64
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
65
|
65
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
66
|
66
293700036
Raccord coude *fitting-elbow
|
293700036 |
— | ||
|
67
|
67
205003060
Screw-socket hd.din.912a2
|
205003060 |
— | ||
|
68
|
68
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
69
|
69
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
70
|
70
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
71
|
71
278001662 Plaque masse *plate-ground |
278001662 |
US $24.45 |
||
|
72
|
72
270000251
Capteur acceler*sensor-throttl
|
270000251 |
— | ||
| replacement | |||||
|
72
|
72
420866120 POSITION SENSOR |
420866120 |
US $104.33 |
||
