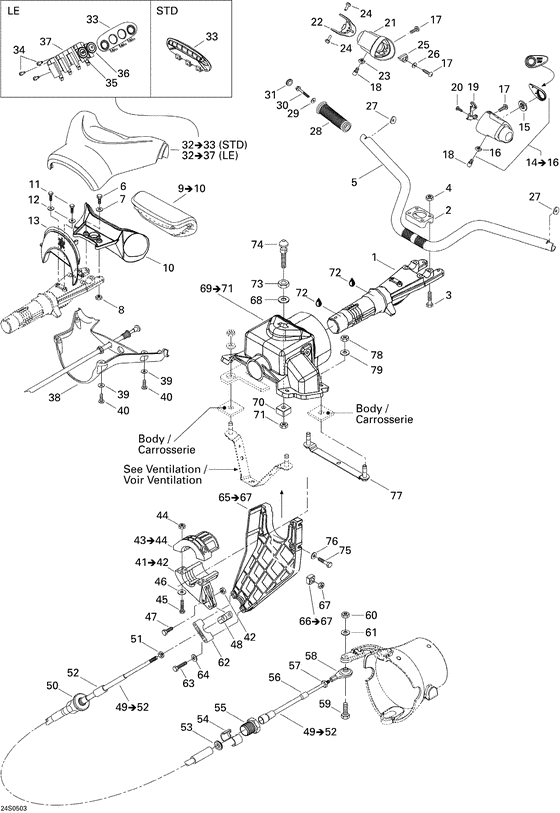

07- steering system std Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
277000562400
Tige direction *stem-steering
|
277000562400 |
— | ||
|
2
|
2
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
3
|
3
207085060 Screw-hex.cap din.931a2 |
207085060 |
US $10.65 |
||
|
4
|
4
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
5
|
5
277001450 Guidon *bar-handle |
277001450 |
US $149.89 |
||
|
6
|
6
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
7
|
7
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
277001366
Tampon guidon *pad-handle
Includes 9 to 10; |
277001366 |
— | ||
|
10
|
10
277000687 Support tampon *support-pad |
277000687 |
US $19.33 |
||
|
11
|
11
211000036 Screw-forming hex.hd. |
211000036 |
US $10.65 |
||
|
12
|
12
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
13
|
13
277000549 Plaque mar.noir*plate-mar.blac |
277000549 |
US $21.39 |
||
|
14
|
14
277000869 Log.gauche ass.*housing-assy.Includes 14 to 16; |
277000869 |
US $41.77 |
||
|
15
|
15
277000306
Bouton inter. *knob-switch
|
277000306 |
— | ||
|
16
|
16
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
17
|
17
209630960 Screw-tapp.pan hd.ph.din.7981c-a2 |
209630960 |
US $5.35 |
||
|
18
|
18
250000036 Screw-socket set m6x16 ss304-a2 |
250000036 |
US $16.30 |
||
|
19
|
19
277000845
Plaque retenue *plate-retainer
|
277000845 |
— | ||
| replacement | |||||
|
19
|
19
277001213 Plaque *plate |
277001213 |
US $57.45 |
||
|
20
|
20
209631360 Screw-tapp.pan hd.ph.din.7981c-a2 |
209631360 |
US $9.80 |
||
|
21
|
21
277000872 Log.man.acc. *housing-thrott |
277000872 |
US $26.49 |
||
|
22
|
22
277001107
Manette acc. *throttle handle
|
277001107 |
— | ||
| replacement | |||||
|
22
|
22
277001485 Manette acc. *throttle handle |
277001485 |
US $17.82 |
||
|
23
|
23
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
24
|
24
277000381 Goupille *pin |
277000381 |
US $11.15 |
||
|
25
|
25
293450153 Ajout *insert |
293450153 |
US $12.19 |
||
|
26
|
26
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
27
|
27
277000554
Ajout gaine *insert-grip
|
277000554 |
— | ||
|
28
|
28
277001336 Gaine guidon *handle grip |
277001336 |
from US $21.42 |
||
|
29
|
29
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
30
|
30
250000002 Screw-hex.cap din.933a2 s.grip |
250000002 |
US $29.75 |
||
|
31
|
31
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
32
|
32
277001393
Couvre guidon *cover-stee.sup
STD, Includes 32 to 33; |
277001393 |
— | ||
|
33
|
33
277001394 Plaque guidon *plate-steeringSTD; |
277001394 |
US $27.29 |
||
|
38
|
38
277000808 Couvre guidon *cover-stee.inf |
277000808 |
US $119.31 |
||
|
39
|
39
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
40
|
40
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
41
|
41
277000518
Support *support
Includes 41 to 42; |
277000518 |
— | ||
|
42
|
42
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
43
|
43
277000519
Palier bras *thrust-arm
Includes 43 to 44; |
277000519 |
— | ||
| replacement | |||||
|
43
|
43
277001473
Palier bras *thrust-arm
Includes 43 to 44; |
277001473 |
— | ||
|
44
|
44
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
45
|
45
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
46
|
46
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
47
|
47
211000081 Screw-hex.cap |
211000081 |
US $23.90 |
||
|
48
|
48
277001180 Joint a rotule *ball joint |
277001180 |
US $40.92 |
||
|
49
|
49
277001322
Cable direction*cable-steering
Includes 49 to 52; |
277001322 |
— | ||
|
50
|
50
277000782 Bouton ajust. *knob-ajust. |
277000782 |
US $22.39 |
||
|
51
|
51
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
52
|
52
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
53
|
53
293830063 Rondelle caout.*rubber washer |
293830063 |
US $24.30 |
||
|
54
|
54
277000783
Demi-bague *half-ring
|
277000783 |
— | ||
|
55
|
55
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
55
|
55
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
56
|
56
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
57
|
57
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
58
|
58
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
59
|
59
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
60
|
60
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
61
|
61
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
62
|
62
277000162
Palier support *thrust support
|
277000162 |
— | ||
|
63
|
63
207065060 Screw-hex.cap din.931a2 |
207065060 |
US $14.35 |
||
|
64
|
64
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
65
|
65
277000516
Support cable *support-cable
Includes 65 to 67; |
277000516 |
— | ||
|
66
|
66
269500252 Logement ecrou *housing-nut asIncludes 66 to 67; |
269500252 |
US $19.22 |
||
|
67
|
67
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
68
|
68
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
69
|
69
277000515
Support direct.*support-steer.
Includes 69 to 71; |
277000515 |
— | ||
| replacement | |||||
|
69
|
69
277001471 Support direct.*support-steer.Includes 69 to 71; |
277001471 |
US $270.27 |
||
|
70
|
70
271000598 Logement ecrou *housing-nut |
271000598 |
US $14.67 |
||
|
71
|
71
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
72
|
72
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
73
|
73
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
74
|
74
291000689 Ergot d ancrage*stud-latch |
291000689 |
US $34.63 |
||
|
75
|
75
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
76
|
76
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
77
|
77
277001000
Support direct.*support-steer.
|
277001000 |
— | ||
|
78
|
78
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
79
|
79
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
