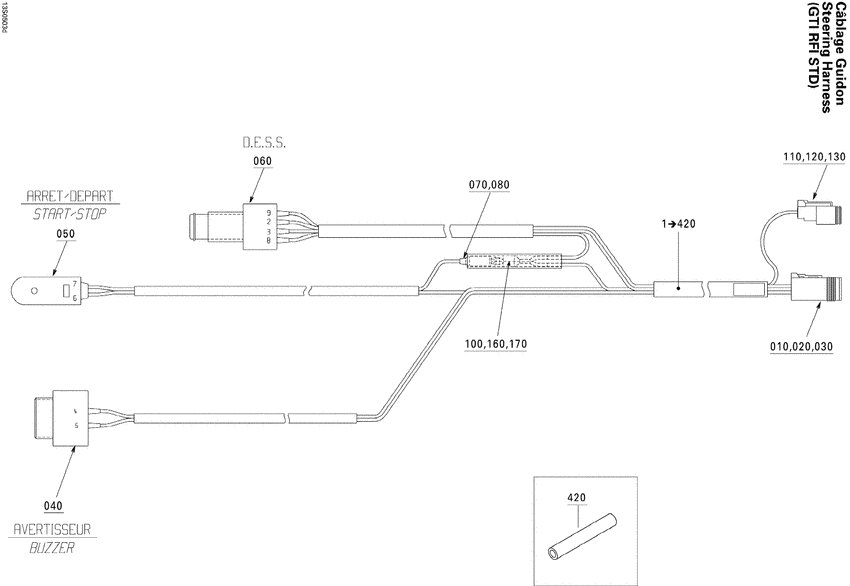

10- electrical harness std Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278002053
Cablage guidon *steerring harness
Includes 1 to 420; |
278002053 |
— | ||
|
10
|
10
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
20
|
20
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
30
|
30
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
40
|
40
278001586
Avertisseur *buzzer
|
278001586 |
— | ||
|
50
|
50
278002054
Interrupteur *switch-ass y
|
278002054 |
— | ||
|
60
|
60
278002055
Inter.urgence *safety switch
|
278002055 |
— | ||
|
70
|
70
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
80
|
80
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
100
|
100
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
110
|
110
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
120
|
120
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
130
|
130
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
160
|
160
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
170
|
170
278000770 Etui thermique *sheath-insulat |
278000770 |
US $9.25 |
||
|
420
|
420
293100012
Gaine *protector tube
|
293100012 |
— | ||
|
420
|
420
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
420
|
420
293100011
Gaine vinyle *tubing-pvc
|
293100011 |
— | ||
|
420
|
420
512059668
Gaine thermo. *shrink tubing
|
512059668 |
— |
