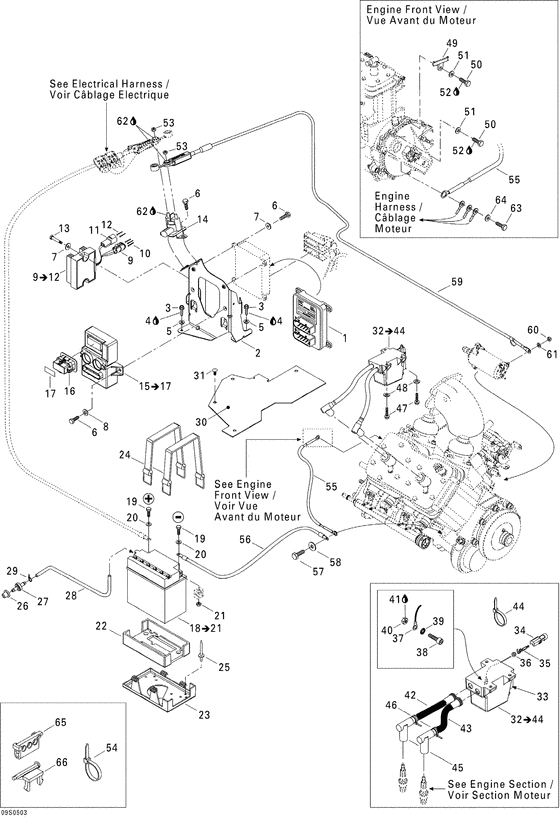

10- electrical system Diagram Bombardier GTI
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420665226 Boite module mcm *ecm module |
420665226 |
US $1,321.90 |
||
|
2
|
2
278002009 Support modules*ecu support |
278002009 |
US $62.17 |
||
|
3
|
3
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
4
|
4
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
5
|
5
211200043 Washer-lock imperial |
211200043 |
US $10 |
||
|
6
|
6
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
7
|
7
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
8
|
8
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
9
|
9
278001969 Regulateur *regulatorIncludes 9 to 12; |
278001969 |
US $257.01 |
||
|
9
|
9
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
10
|
10
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
11
|
11
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
12
|
12
515175567 Cosse femelle *terminal-femal |
515175567 |
US $48.05 |
||
|
13
|
13
207363560 Screw-hex.cap din.933a2 s.grip |
207363560 |
US $24.30 |
||
|
14
|
14
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
15
|
15
278001988
Module mcv *vcm module
Includes 15 to 17; |
278001988 |
— | ||
|
16
|
16
278002102 Couvercle *fuse cover |
278002102 |
US $34.63 |
||
|
17
|
17
278002103 Autocollant *sticker |
278002103 |
US $16.76 |
||
|
18
|
18
278001756 Batterie yb16clb *battery (dry)Includes 18 to 21; |
278001756 |
US $182.53 |
||
|
19
|
19
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
20
|
20
211200018 Washer-flat m6 |
211200018 |
US $5.35 |
||
|
21
|
21
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
22
|
22
278001976 Tampon inf.batt*pad-batt.lower |
278001976 |
US $28.31 |
||
|
23
|
23
278001972 Support batt. *support-batt. |
278001972 |
US $17.82 |
||
|
24
|
24
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
25
|
25
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
26
|
26
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
27
|
27
275500499 Soupape retenue*valve-check |
275500499 |
US $17.82 |
||
|
28
|
28
275500446 Boyau 6mm. *hose-6mm. |
275500446 |
US $21.72 |
||
|
29
|
29
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
30
|
30
278002077
Protecteur *protector
|
278002077 |
— | ||
|
31
|
31
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
32
|
32
278001545
Bobine allumage*coil-ignition
Includes 32 to 44; |
278001545 |
— | ||
|
33
|
33
278001546 Bobine allumage*coil-ignition |
278001546 |
US $172.60 |
||
|
34
|
34
278000161 Bloc 1 circ.fem*housing-tab |
278000161 |
US $9.40 |
||
|
35
|
35
409004300 Cosse male *terminal-male |
409004300 |
US $36.20 |
||
|
36
|
36
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
37
|
37
409003200
Cosse a anneau *barrel-open
|
409003200 |
— | ||
|
38
|
38
205062044 Screw-socket hd.din.912 |
205062044 |
US $16.50 |
||
|
39
|
39
394001900 Washer-lock ext.tooth |
394001900 |
US $10 |
||
|
40
|
40
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
41
|
41
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
42
|
42
278001464
Cablage bougies*harness-s.plug
|
278001464 |
— | ||
|
43
|
43
278001465
Cablage bougies*harness-s.plug
|
278001465 |
— | ||
|
44
|
44
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
45
|
45
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
46
|
46
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
47
|
47
209663260
Screw-tapp.pan hd.ph.din.7981c-a2
|
209663260 |
— | ||
|
48
|
48
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
49
|
49
278001873
Attache *clip
|
278001873 |
— | ||
|
50
|
50
420841543 Screw-taptite |
420841543 |
US $81.30 |
||
|
51
|
51
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
52
|
52
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
53
|
53
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
54
|
54
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
54
|
54
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
54
|
54
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
54
|
54
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
55
|
55
278002092
Fil masse *gnd wire
|
278002092 |
— | ||
|
56
|
56
278001973
Cable masse ass*ground cable
|
278001973 |
— | ||
|
57
|
57
207382060 Screw-hex.cap din.933a2 s.grip |
207382060 |
US $27 |
||
|
58
|
58
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
59
|
59
278002060
Cable demarreur*cable-starter
|
278002060 |
— | ||
|
60
|
60
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
61
|
61
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
62
|
62
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
63
|
63
207361660 Screw-hex.cap din.933a2 s.grip |
207361660 |
US $14.80 |
||
|
64
|
64
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
65
|
65
278000245 Support fils 3 *support-wire |
278000245 |
US $7.31 |
||
|
66
|
66
278001096
Support collier*support-collar
|
278001096 |
— |
