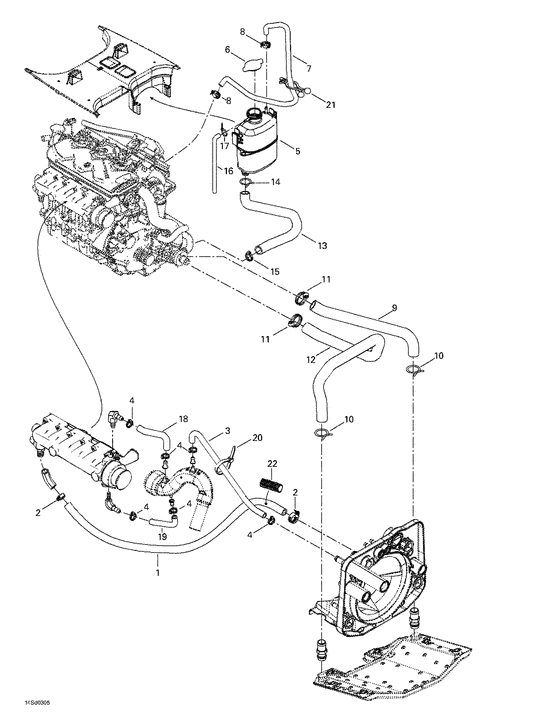

01- cooling system Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
2
|
2
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
3
|
3
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
3
|
3
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
4
|
4
293650130
Bride serrage*hose clamp
|
293650130 |
— | ||
| replacement | |||||
|
4
|
4
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
5
|
5
276000086 Res.antigel *tank-coolant |
276000086 |
US $131.63 |
||
|
6
|
6
276000100 Bouchon rad. *pressure cap ass y |
276000100 |
US $28.25 |
||
|
7
|
7
276000102
Boyau forme *hose-formed
|
276000102 |
— | ||
|
8
|
8
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
8
|
8
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
9
|
9
276000091
Boyau droit *hose-right
|
276000091 |
— | ||
| replacement | |||||
|
9
|
9
276000248 RH RADIATOR HOSE |
276000248 |
US $62.39 |
||
|
10
|
10
293650114 Bride a ressort*clamp-spring |
293650114 |
US $10.35 |
||
|
11
|
11
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
12
|
12
276000092
Boyau gauche *lh.side hose
|
276000092 |
— | ||
| replacement | |||||
|
12
|
12
276000154
Boyau gauche *lh.side hose
|
276000154 |
— | ||
|
13
|
13
276000095
Boyau de retour*hose-return
|
276000095 |
— | ||
|
14
|
14
293650115 Bride a ressort*clamp-spring |
293650115 |
US $4.10 |
||
|
15
|
15
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
16
|
16
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
17
|
17
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
18
|
18
276000103 Boyau forme *hose-formed |
276000103 |
US $22.85 |
||
|
19
|
19
276000104
Boyau forme *hose-formed
|
276000104 |
— | ||
|
20
|
20
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
21
|
21
291000714 Attache *bracket |
291000714 |
US $2.62 |
||
|
22
|
22
415116600
Gaine *protector tube
|
415116600 |
— | ||
| replacement | |||||
|
22
|
22
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
