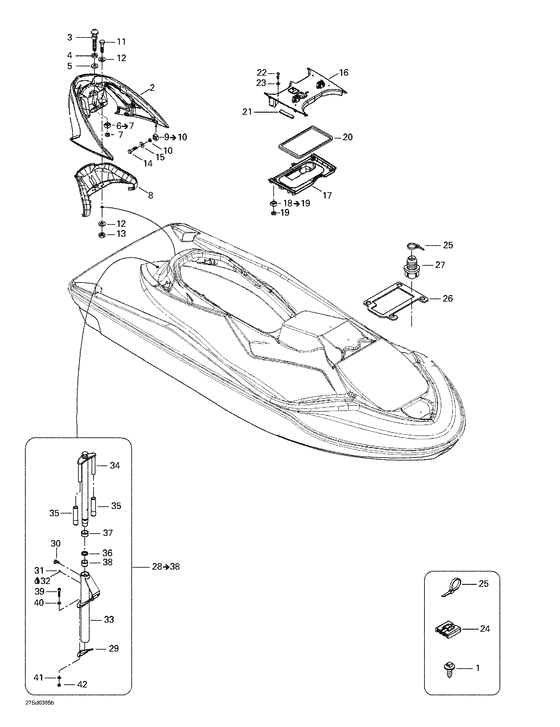

09- body, front view Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
2
|
2
269000722 Poignee arriere*handle-grab |
269000722 |
US $148.89 |
||
|
3
|
3
291000945 Ergot de siege *stud-seat |
291000945 |
US $20.38 |
||
|
4
|
4
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
5
|
5
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
6
|
6
271000598 Logement ecrou *housing-nutIncludes 6 - 7.; |
271000598 |
US $14.67 |
||
|
7
|
7
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
8
|
8
269000749 Couvercle *cover-handle |
269000749 |
US $17.29 |
||
|
9
|
9
269500725 Logement ecrou *housing-nut asIncludes 9 - 10.; |
269500725 |
US $5.87 |
||
|
10
|
10
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
11
|
11
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
14
|
14
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
15
|
15
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
16
|
16
291001602
Pont superieur *bridge-upper
|
291001602 |
— | ||
|
17
|
17
291001599
Pont inferieur *bridge-lower
|
291001599 |
— | ||
| replacement | |||||
|
17
|
17
291002138
Pont inferieur *bridge-lower
|
291002138 |
— | ||
|
18
|
18
269501166 Logement ecrou *housing-nutIncludes 18 - 19.; |
269501166 |
US $6.26 |
||
|
19
|
19
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
20
|
20
293200090 Joint etanche *gasket |
293200090 |
US $12.58 |
||
|
21
|
21
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
22
|
22
207167560 Screw-hex.cap din.933a2 |
207167560 |
US $11.15 |
||
|
23
|
23
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
24
|
24
293750025 Ancrage tie rap*mount-tie rap |
293750025 |
US $7.65 |
||
|
25
|
25
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
26
|
26
293250068
Joint etanche *gasket
|
293250068 |
— | ||
| replacement | |||||
|
26
|
26
293250171 Joint etanche *gasket |
293250171 |
US $35.64 |
||
|
27
|
27
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
28
|
28
291001920
New Genuine Part
Includes 28 - 38. BLUE (B-544) GTX 4-TEC 6125/6126.; |
291001920 |
— | ||
|
29
|
29
293250145
Joint etanche *seal
GTX 4-TEC 6125/6126.; |
293250145 |
— | ||
| replacement | |||||
|
29
|
29
293250151 Joint etanche *sealGTX 4-TEC 6125/6126.; |
293250151 |
US $11.46 |
||
|
30
|
30
204070412
Spring plunger-pull hand
GTX 4-TEC 6125/6126.; |
204070412 |
— | ||
|
31
|
31
206560860 Screw-set socket din.916a2GTX 4-TEC 6125/6126.; |
206560860 |
US $10.65 |
||
|
32
|
32
293800060 Loctite 243 *loctite-243GTX 4-TEC 6125/6126.; |
293800060 |
US $31.18 |
||
|
33
|
33
291001921
Support *support
GTX 4-TEC 6125/6126.; |
291001921 |
— | ||
|
34
|
34
291001903
Poteau *ski pole
GTX 4-TEC 6125/6126.; |
291001903 |
— | ||
| replacement | |||||
|
34
|
34
291002095
Poteau *ski pole
GTX 4-TEC 6125/6126.; |
291002095 |
— | ||
|
35
|
35
M5340464
Gaine poignee *grip-handle
GTX 4-TEC 6125/6126.; |
M5340464 |
— | ||
| replacement | |||||
|
35
|
35
506152483 GRIPGTX 4-TEC 6125/6126.; |
506152483 |
US $13.18 |
||
|
36
|
36
293300106
Joint en "x" *x-ring
GTX 4-TEC 6125/6126.; |
293300106 |
— | ||
|
37
|
37
291001940
Bague sup. *upper sleeve
GTX 4-TEC 6125/6126.; |
291001940 |
— | ||
|
38
|
38
291001941
Bague inf. *lower sleeve
GTX 4-TEC 6125/6126.; |
291001941 |
— | ||
|
39
|
39
205484060 Screw-socket bn.hd.iso.7380a2BLUE (B-544) GTX 4-TEC 6125/6126.; |
205484060 |
US $5.32 |
||
|
40
|
40
234081600 Washer-flat din.125a-a2BLUE (B-544) GTX 4-TEC 6125/6126.; |
234081600 |
US $7.10 |
||
|
41
|
41
234082600 Washer-flat din.9021b-a2BLUE (B-544) GTX 4-TEC 6125/6126.; |
234082600 |
US $31.10 |
||
|
42
|
42
232581600 Nut-stop elastic din.985a2BLUE (B-544) GTX 4-TEC 6125/6126.; |
232581600 |
from US $2.39 |
||
