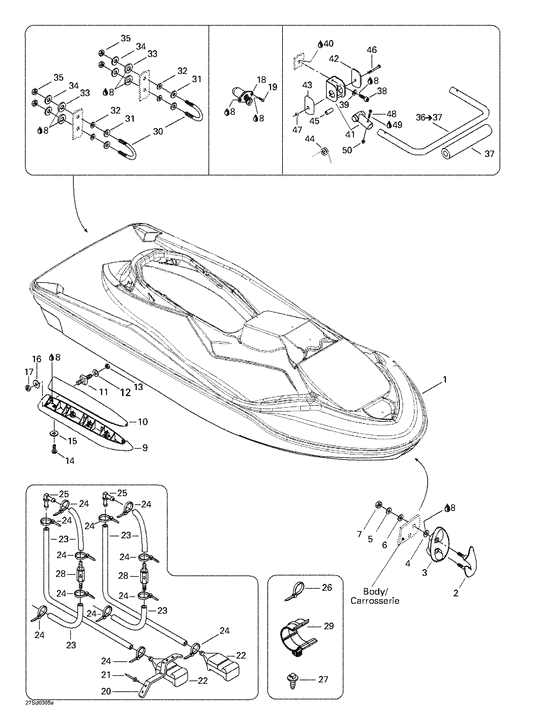

09- hull Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
275500527 Attache *retainer |
275500527 |
US $4.13 |
||
|
|
275500526 Attache *retainer |
275500526 |
US $5.87 |
||
|
2
|
2
292000708
Amarre noire *bow-eye black
|
292000708 |
— | ||
|
3
|
3
292000453
Coquille noire *shell-black
|
292000453 |
— | ||
|
4
|
4
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
5
|
5
250200011 Washer-flat stlss. m8 |
250200011 |
US $4.85 |
||
|
6
|
6
293830037 Rondelle caout.*washer-rubber |
293830037 |
US $20.65 |
||
|
7
|
7
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
8
|
8
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
9
|
9
292000818 Stabilisat.dr. *sponson-rh. |
292000818 |
US $106.05 |
||
|
9
|
9
292000816
Stabilisat.ga. *sponson-lh.
|
292000816 |
— | ||
|
10
|
10
292000815 Couvercle dr. *cover-rh. |
292000815 |
US $30.57 |
||
|
10
|
10
292000817 Couvercle ga. *cover-lh. |
292000817 |
US $30.57 |
||
|
11
|
11
293450227
Ajout filete *insert-thread
|
293450227 |
— | ||
|
12
|
12
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
13
|
13
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
14
|
14
211000037
Screw-plastite pan hd.ph
|
211000037 |
— | ||
|
15
|
15
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
16
|
16
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
17
|
17
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
18
|
18
292000685 Bouch.purge*plug-drain ass y |
292000685 |
US $18.85 |
||
|
19
|
19
211000021 Screw-tri.plask pan.hd.phil. |
211000021 |
US $11.76 |
||
|
20
|
20
292000398 Pince ress.ga. *clip-spring lh |
292000398 |
US $13.21 |
||
|
21
|
21
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
22
|
22
292000688
Tamis declenche*screen-bailer
|
292000688 |
— | ||
|
23
|
23
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
24
|
24
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
25
|
25
293710057 Raccord coude90*fitting-elbow |
293710057 |
US $7.09 |
||
|
26
|
26
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
27
|
27
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
28
|
28
276000093
Soupape securit*valve-check
|
276000093 |
— | ||
|
29
|
29
275500528 Attache boyau*hose-retainer |
275500528 |
US $3.83 |
||
|
30
|
30
292000933 Bride en "u" *"u"clamp |
292000933 |
US $133.59 |
||
|
31
|
31
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
32
|
32
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
33
|
33
293830037 Rondelle caout.*washer-rubber |
293830037 |
US $20.65 |
||
|
34
|
34
250200011 Washer-flat stlss. m8 |
250200011 |
US $4.85 |
||
|
35
|
35
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
36
|
36
292000778
Tube d echelle *tube-stair
Includes 36 - 37.; |
292000778 |
— | ||
|
37
|
37
292000781 Tube protecteur*sleeve protective |
292000781 |
US $89.73 |
||
|
38
|
38
250000076 Screw-socket din.912a2 s.grip |
250000076 |
US $19.60 |
||
|
39
|
39
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
40
|
40
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
41
|
41
292000539
Support ass. *support-assy.
|
292000539 |
— | ||
|
42
|
42
292000540
Capuchon supp. *cap-support r.h.
|
292000540 |
— | ||
|
43
|
43
292000548
Capuchon supp. *cap-support l.h.
|
292000548 |
— | ||
|
44
|
44
292000541 Ressort rappel *rewind spring |
292000541 |
US $25.19 |
||
|
45
|
45
292000542
Tube de plastique
|
292000542 |
— | ||
|
46
|
46
211000186 Screw-pan hd.ph.1/4-20 x 2 1/2GTX 4-TEC 6125/6126. .; |
211000186 |
US $19.60 |
||
|
47
|
47
212000005 Nut-stop elastic ms-17830GTX 4-TEC 6125/6126. .; |
212000005 |
US $9.80 |
||
|
48
|
48
205063560 Screw-socket hd.din.912a2 |
205063560 |
US $14.35 |
||
|
49
|
49
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
50
|
50
232361600 Nut-domed hexagonal din.1587-a2 |
232361600 |
US $28.05 |
