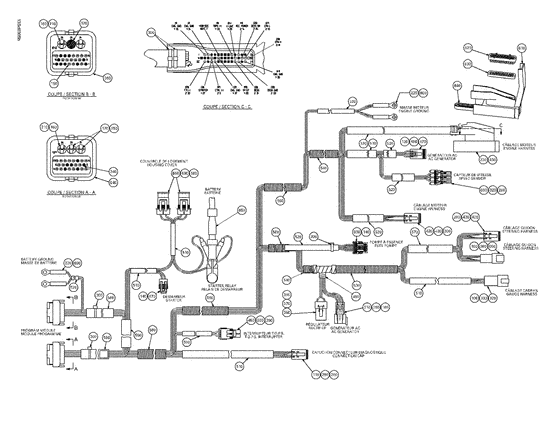

10- electrical harness 2 Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278001788
Cablage princ. *wiring harness
Includes 1 - 690.; |
278001788 |
— | ||
|
20
|
20
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
30
|
30
278001308 Bloc 4 circ.mal*housing-tab |
278001308 |
US $13.60 |
||
|
40
|
40
278000993
Bloc 26circ.mal*housing-tab
|
278000993 |
— | ||
|
50
|
50
278001062
Bloc 26circ.mal*housing-tab
|
278001062 |
— | ||
|
60
|
60
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
80
|
80
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
90
|
90
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
100
|
100
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
110
|
110
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
120
|
120
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
130
|
130
278001661 Cosse femelle *terminal-femal |
278001661 |
US $8.38 |
||
|
140
|
140
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
150
|
150
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
160
|
160
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
170
|
170
409011700 Cosse femelle *terminal-femal. |
409011700 |
US $20.75 |
||
|
180
|
180
515175823 Cosse male *terminal-male |
515175823 |
US $58.70 |
||
|
200
|
200
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
210
|
210
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
220
|
220
278001392 Cosse a anneau *barrel-open |
278001392 |
US $62.10 |
||
|
230
|
230
278001751 Bloc 41circ.mal*housing-tab |
278001751 |
US $24.11 |
||
|
240
|
240
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
250
|
250
278001223 Joint de fil *seal-wire |
278001223 |
US $13.35 |
||
|
260
|
260
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
280
|
280
409207600 Verrou male *lock-male |
409207600 |
US $42.30 |
||
|
290
|
290
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
300
|
300
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
310
|
310
409207000
Logement male *housing-male
|
409207000 |
— | ||
|
320
|
320
278000635 Bloc 4 circ.fem*housing-tab |
278000635 |
US $16.92 |
||
|
330
|
330
278000636 Cale 4 circ.fem*wedge-4 ways f |
278000636 |
US $58.70 |
||
|
360
|
360
278001673 Bloc 2 circ.mal*housing-tab |
278001673 |
US $25.31 |
||
|
370
|
370
278001671 Cale 2 circ.mal*wedge-2 ways m |
278001671 |
US $22.45 |
||
|
380
|
380
515175260 Cosse femelle *terminal-femal |
515175260 |
US $9.40 |
||
|
420
|
420
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
430
|
430
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $41 |
||
|
450
|
450
278001750 Cosse femelle *terminal-femal |
278001750 |
US $15.55 |
||
|
460
|
460
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
470
|
470
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
480
|
480
409207200 Verrou femelle *lock-female |
409207200 |
US $5.87 |
||
|
650
|
650
278001861
Cable *cable
|
278001861 |
— | ||
| replacement | |||||
|
650
|
650
278002058 Cable *cable |
278002058 |
US $53.01 |
||
|
660
|
660
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
670
|
670
278001113 Bloc 2 circ.mal*housing-tab |
278001113 |
US $84.60 |
||
|
680
|
680
278001325 Porte fusible *holder-fuse |
278001325 |
US $19.34 |
||
|
690
|
690
710000357 Cosse femelle *female terminal |
710000357 |
US $9.61 |
||
