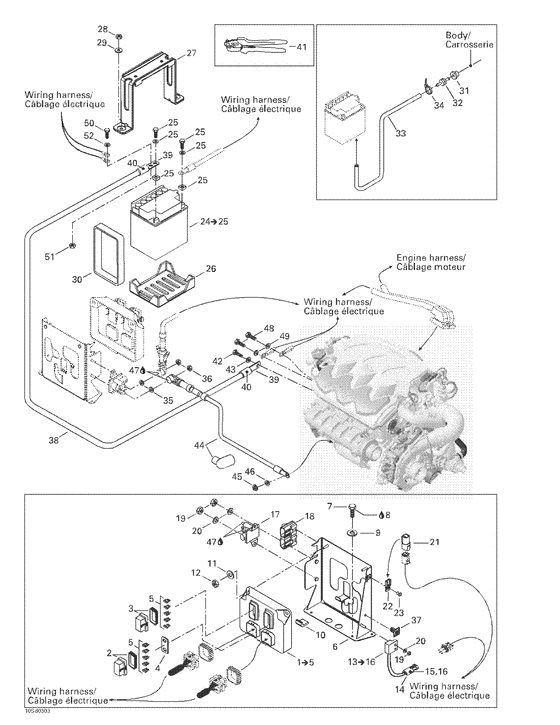

10- electrical system Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
|
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
|
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $14.20 |
||
|
|
278001442 Fusible 2 amp. *fuse-2 amp. |
278001442 |
US $8.38 |
||
|
|
278001196 Fusible 3 amp. *fuse-3 amp. |
278001196 |
US $10.30 |
||
|
1
|
1
278001908
Module electron*module-elect.
Includes 1 - 5.; |
278001908 |
— | ||
| replacement | |||||
|
1
|
1
278002043
Module program.*program. module
Includes 1 - 5.; |
278002043 |
— | ||
|
3
|
3
278001069
Couv.fusible *cover-fuse
|
278001069 |
— | ||
| replacement | |||||
|
3
|
3
278001618
Couv.fusible *cover-fuse
|
278001618 |
— | ||
|
4
|
4
278001719
Cous.fusible *foam-support
|
278001719 |
— | ||
|
5
|
5
409012800 Fusible 1a *fuse-1a |
409012800 |
US $16.76 |
||
|
6
|
6
278001870
Support module *module support
|
278001870 |
— | ||
|
7
|
7
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
8
|
8
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
9
|
9
211200043 Washer-lock imperial |
211200043 |
US $10 |
||
|
10
|
10
278001166 Protect.module *protect-module |
278001166 |
US $10.47 |
||
|
11
|
11
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
12
|
12
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
13
|
13
278001547 Interruteur *interrupterIncludes 13 - 16.; |
278001547 |
US $147.85 |
||
|
14
|
14
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
15
|
15
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
16
|
16
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
17
|
17
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
18
|
18
710000342 Couvercle *cover |
710000342 |
US $14.25 |
||
|
19
|
19
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
21
|
21
278001725
Capuchon *connect-cap
|
278001725 |
— | ||
| replacement | |||||
|
21
|
21
278002148
Capuchon *connect-cap
|
278002148 |
— | ||
|
22
|
22
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
23
|
23
204000081 Rivet-pop 3/16 *rivet-pop 3/16 |
204000081 |
US $19.20 |
||
|
24
|
24
278001882 Batterie yb30clb*battery amp(dry)Includes 24 - 25.; |
278001882 |
US $219.30 |
||
|
25
|
25
295500849
Ens. boulon ba*fastener battery kit
|
295500849 |
— | ||
|
26
|
26
278001582 Tampon inf.batt*pad-batt.lower |
278001582 |
US $19.92 |
||
|
27
|
27
278001677 Support batt. *support-batt. |
278001677 |
US $50.97 |
||
|
28
|
28
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
29
|
29
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
30
|
30
278001764 Sangle 337mm *strap 337mm |
278001764 |
US $13.60 |
||
|
31
|
31
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
32
|
32
275500499 Soupape retenue*valve-check |
275500499 |
US $17.82 |
||
|
33
|
33
275500446 Boyau 6mm. *hose-6mm. |
275500446 |
US $21.72 |
||
|
34
|
34
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
35
|
35
250200038
Rondelle laiton*brass washer
|
250200038 |
— | ||
|
36
|
36
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
37
|
37
278001775
Attache *self-locking clip
|
278001775 |
— | ||
|
38
|
38
278001611 Cable masse ass*cable-groundIncludes 39,40; |
278001611 |
US $64.23 |
||
|
42
|
42
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
43
|
43
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
44
|
44
278001862
Cable demarreur*cable-starter
|
278001862 |
— | ||
|
45
|
45
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
46
|
46
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
47
|
47
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
48
|
48
207361260 Screw-hex.cap din.933a2 s.grip |
207361260 |
US $18.75 |
||
|
49
|
49
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
50
|
50
207161260 Screw-hex.cap din.933a2 |
207161260 |
US $8.15 |
||
|
51
|
51
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
52
|
52
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
