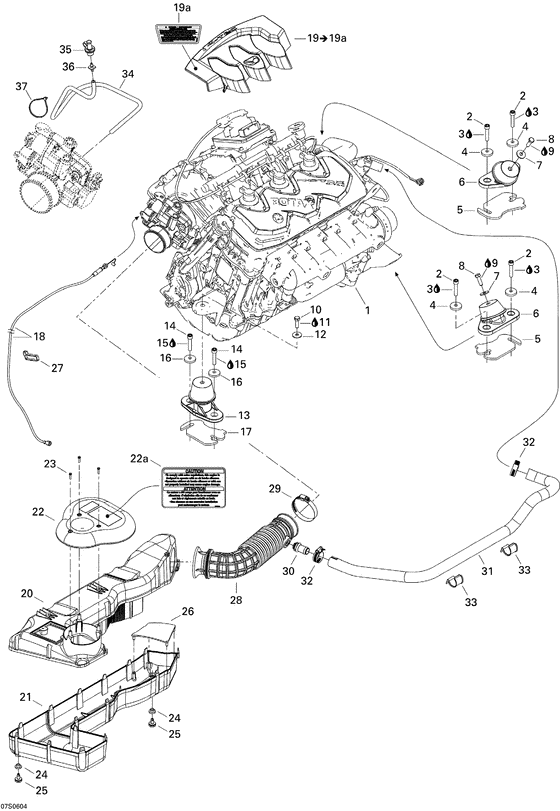

01- engine and air intake silencer Diagram Bombardier GTX
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
270000639
Moteur rotax *engine-1503
|
270000639 |
— | ||
|
2
|
2
205084060 Screw-socket hd.din.912a2 |
205084060 |
US $14.20 |
||
|
3
|
3
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
4
|
4
250200018 Rondelle coniq.*washer-cone |
250200018 |
US $14.52 |
||
|
5
|
5
270000446
Cale epaisseur *shim-1.3mm.
|
270000446 |
— | ||
|
6
|
6
270000688
Tampon ancrage *mount-rubber
|
270000688 |
— | ||
|
7
|
7
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
8
|
8
207182560 Screw-hex.cap din.933a2 |
207182560 |
US $7.65 |
||
|
9
|
9
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
10
|
10
207182560 Screw-hex.cap din.933a2 |
207182560 |
US $7.65 |
||
|
11
|
11
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
12
|
12
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
13
|
13
270000690
Tampon ancrage *mount-rubber
|
270000690 |
— | ||
|
14
|
14
205084060 Screw-socket hd.din.912a2 |
205084060 |
US $14.20 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
16
|
16
250200018 Rondelle coniq.*washer-cone |
250200018 |
US $14.52 |
||
|
17
|
17
270000446
Cale epaisseur *shim-1.3mm.
|
270000446 |
— | ||
|
18
|
18
277001170 Cable accelerat*throttle cable |
277001170 |
US $96.87 |
||
|
19a
|
19a
219902674 Avertissement *warning |
219902674 |
US $0.02 |
||
|
19
|
19
270000677 Couvercle ass`e*cover ass`yIncludes 19 to 19a; |
270000677 |
US $47.91 |
||
|
20
|
20
273000224 Silencieux adm.*silenc-air upp |
273000224 |
US $50.97 |
||
|
21
|
21
273000190 Silencieux adm.*silenc-air low |
273000190 |
US $48.93 |
||
|
22
|
22
273000192
Couvercle *cover
|
273000192 |
— | ||
|
22a
|
22a
219902673 Etiquette inst.*inst-label |
219902673 |
US $11.17 |
||
|
23
|
23
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
24
|
24
293720064 Passe-fils *grommet |
293720064 |
US $62.82 |
||
|
25
|
25
275500454 Soupape retenue*valve-check |
275500454 |
US $17.82 |
||
|
26
|
26
273000206 Deflecteur .*deflector |
273000206 |
US $16.61 |
||
|
27
|
27
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
28
|
28
273000187
Boyau admission*hose-intake
|
273000187 |
— | ||
|
29
|
29
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
30
|
30
273000195
Reniflard *breather
|
273000195 |
— | ||
|
31
|
31
270000681
Boyau forme *hose-formed
|
270000681 |
— | ||
|
32
|
32
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
33
|
33
275500664 Attache *retainer |
275500664 |
US $11.41 |
||
|
34
|
34
270000469 Boyau 3mm *hose-3mm |
270000469 |
US $50.68 |
||
|
35
|
35
293830115
Oeillet cap. *grommet cap
|
293830115 |
— | ||
|
36
|
36
293710107 Raccord *connector |
293710107 |
US $0.97 |
||
|
37
|
37
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
