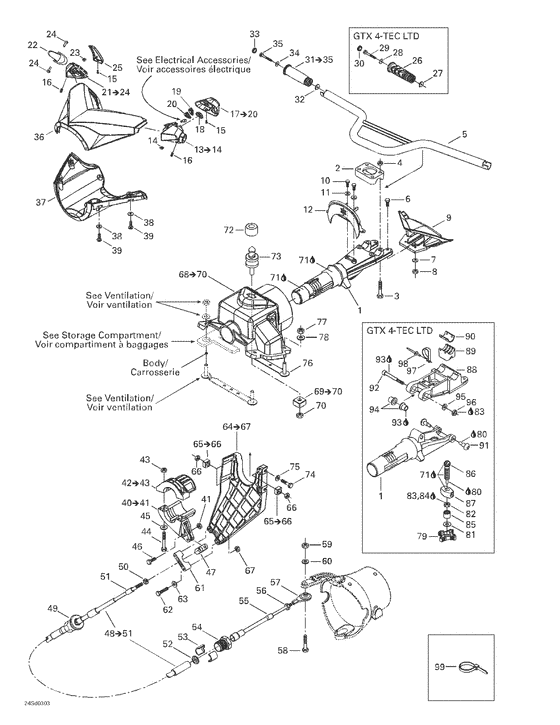

07- steering system Diagram Bombardier GTX
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
277001145 Couvre guidon *cover-stee.inf.GTX 4-TEC LTD.; |
277001145 |
US $121.33 |
||
|
|
207087060 Screw-hex.cap din.931a2GTX 4-TEC LTD.; |
207087060 |
US $14.20 |
||
|
|
277000766
Plaque mar.noir*plate-mar.black
GTX 4-TEC LTD.; |
277000766 |
— | ||
|
|
277001132
Guidon soude *bar-handle
GTX 4-TEC LTD.; |
277001132 |
— | ||
|
|
277001128
Couvercle *housing-cover
GTX 4-TEC LTD.; |
277001128 |
— | ||
|
|
277000758400
Tige direction *stem-steering
GTX 4-TEC LTD.; |
277000758400 |
— | ||
|
|
277001100
Tampon guidon *handle pad
Metalic silver (M-519) GTX 4-TEC SUPERCHARGED.; |
277001100 |
— | ||
| replacement | |||||
|
|
277001361 Tampon guidon *handle padMetalic silver (M-519) GTX 4-TEC SUPERCHARGED.; |
277001361 |
US $109.09 |
||
|
|
277001124
Couvercle *housing-cover
GTX 4-TEC LTD.; |
277001124 |
— | ||
|
|
277001098
Couvre guidon *steering cover
GTX 4-TEC LTD.; |
277001098 |
— | ||
|
1
|
1
277000562400
Tige direction *stem-steering
GTX 4-TEC SUPERCHARGED.; |
277000562400 |
— | ||
|
2
|
2
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
3
|
3
207085060 Screw-hex.cap din.931a2GTX 4-TEC SUPERCHARGED.; |
207085060 |
US $10.65 |
||
|
4
|
4
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
5
|
5
277001012
Guidon soude *bar-handle
GTX 4-TEC SUPERCHARGED.; |
277001012 |
— | ||
| replacement | |||||
|
5
|
5
277001454
Guidon soude *bar-handle
GTX 4-TEC SUPERCHARGED.; |
277001454 |
— | ||
|
6
|
6
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
7
|
7
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
277001096
Tampon guidon *handle pad
Earthen clay (M-532) GTX 4-TEC LTD.; |
277001096 |
— | ||
|
10
|
10
211000036 Screw-forming hex.hd. |
211000036 |
US $10.65 |
||
|
11
|
11
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
12
|
12
277000549 Plaque mar.noir*plate-mar.blacGTX 4-TEC SUPERCHARGED.; |
277000549 |
US $21.39 |
||
|
13
|
13
277000954
Logement ass. *housing-ass y
Includes 13 - 14.; |
277000954 |
— | ||
| replacement | |||||
|
13
|
13
277001481
Logement ass. *housing-ass y
Includes 13 - 14.; |
277001481 |
— | ||
|
14
|
14
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
15
|
15
209630960 Screw-tapp.pan hd.ph.din.7981c-a2 |
209630960 |
US $5.35 |
||
|
16
|
16
250000036 Screw-socket set m6x16 ss304-a2 |
250000036 |
US $16.30 |
||
|
17
|
17
277001103
Couvercle *housing-cover
Includes 17 - 20. GTX 4-TEC SUPERCHARGED.; |
277001103 |
— | ||
|
18
|
18
278001713 Bouton d arret *knob-stop |
278001713 |
US $88.50 |
||
|
19
|
19
278001714
Bouton mode *knob-mode
|
278001714 |
— | ||
|
20
|
20
278001715 Bouton set *knob-set |
278001715 |
US $12.19 |
||
|
21
|
21
277000995
Log.man.acc.ass*housing-thrott
Includes 21 - 24.; |
277000995 |
— | ||
|
22
|
22
277001107
Manette acc. *throttle handle
|
277001107 |
— | ||
| replacement | |||||
|
22
|
22
277001485 Manette acc. *throttle handle |
277001485 |
US $17.82 |
||
|
23
|
23
232860600
Nut-square thin m6 din.562a2
|
232860600 |
— | ||
|
24
|
24
277000381 Goupille *pin |
277000381 |
US $11.15 |
||
|
25
|
25
277001102
Couvercle *housing-cover
GTX 4-TEC SUPERCHARGED.; |
277001102 |
— | ||
|
26
|
26
277001130
Gaine guidon *handle grip
GTX 4-TEC LTD.; |
277001130 |
— | ||
|
28
|
28
234062600 Washer-flat din.9021b-a2GTX 4-TEC LTD.; |
234062600 |
US $10 |
||
|
29
|
29
250000002 Screw-hex.cap din.933a2 s.gripGTX 4-TEC LTD.; |
250000002 |
US $29.75 |
||
|
30
|
30
277000203 Capuchon gaine *cap-grip blackGTX 4-TEC LTD.; |
277000203 |
US $20.02 |
||
|
31
|
31
295500691 Black handle grip kitIncludes 31 - 35. GTX 4-TEC SUPERCHARGED.; |
295500691 |
US $36.72 |
||
|
33
|
33
277000203 Capuchon gaine *cap-grip blackGTX 4-TEC SUPERCHARGED.; |
277000203 |
US $20.02 |
||
|
34
|
34
234062600 Washer-flat din.9021b-a2GTX 4-TEC SUPERCHARGED.; |
234062600 |
US $10 |
||
|
35
|
35
250000002 Screw-hex.cap din.933a2 s.gripGTX 4-TEC SUPERCHARGED.; |
250000002 |
US $29.75 |
||
|
36
|
36
277000952 Couvre guidon *cover-stee.supGTX 4-TEC SUPERCHARGED.; |
277000952 |
US $123.37 |
||
|
37
|
37
277001099
Couvre guidon *steering cover
GTX 4-TEC SUPERCHARGED.; |
277001099 |
— | ||
|
38
|
38
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
39
|
39
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
40
|
40
277000518
Support *support
Includes 40 - 41.; |
277000518 |
— | ||
|
41
|
41
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
42
|
42
277000519
Palier bras *thrust-arm
Includes 42 - 43.; |
277000519 |
— | ||
| replacement | |||||
|
42
|
42
277001473
Palier bras *thrust-arm
Includes 42 - 43.; |
277001473 |
— | ||
|
43
|
43
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
44
|
44
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
45
|
45
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
46
|
46
211000081 Screw-hex.cap |
211000081 |
US $23.90 |
||
|
47
|
47
277001180 Joint a rotule *ball joint |
277001180 |
US $40.92 |
||
|
48
|
48
277000949
Cable direction*cable-steering
Includes 48 - 51.; |
277000949 |
— | ||
| replacements | |||||
|
48
|
48
277000846 Embout grand *boot-largeIncludes 48 - 51.; |
277000846 |
from US $5.07 |
||
|
48
|
48
277000849
Embout petit *boot-small
Includes 48 - 51.; |
277000849 |
— | ||
|
48
|
48
277001438
Cable direction*steering cable
Includes 48 - 51.; |
277001438 |
— | ||
|
49
|
49
277000782 Bouton ajust. *knob-ajust. |
277000782 |
US $22.39 |
||
|
50
|
50
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
51
|
51
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
52
|
52
293830063 Rondelle caout.*rubber washer |
293830063 |
US $24.30 |
||
|
53
|
53
277000783
Demi-bague *half-ring
|
277000783 |
— | ||
|
54
|
54
277000784
Barrure cable *lock-cable
|
277000784 |
— | ||
| replacement | |||||
|
54
|
54
277001729 STEERING CABLE LOCK |
277001729 |
from US $14.20 |
||
|
55
|
55
277000441 Racleur *wiper-terminal |
277000441 |
US $12.58 |
||
|
56
|
56
211100056 Nut-hex. 1/4-28 ss-304 |
211100056 |
US $8.80 |
||
|
57
|
57
277000775 Joint a rotule *joint-ball |
277000775 |
US $58.48 |
||
|
58
|
58
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
59
|
59
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
60
|
60
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
61
|
61
277000162
Palier support *thrust support
|
277000162 |
— | ||
|
62
|
62
207065060 Screw-hex.cap din.931a2 |
207065060 |
US $14.35 |
||
|
63
|
63
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
64
|
64
277000516
Support cable *support-cable
Includes 64 - 67.; |
277000516 |
— | ||
|
65
|
65
269500252 Logement ecrou *housing-nut asIncludes 65 - 66.; |
269500252 |
US $19.22 |
||
|
66
|
66
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
67
|
67
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
68
|
68
277000898
Support direct.*support-steer.
Includes 68 - 70.; |
277000898 |
— | ||
|
69
|
69
271001115
Logement ecrou *housing-nut
Includes 69 - 70.; |
271001115 |
— | ||
|
70
|
70
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
71
|
71
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
72
|
72
293830078 Tampon caout. *pad-rubber |
293830078 |
US $16.76 |
||
|
73
|
73
291001420
Ergot d ancrage*stud-latch
|
291001420 |
— | ||
| replacement | |||||
|
73
|
73
291002147 Ergot d ancrage*stud-latch |
291002147 |
US $80.55 |
||
|
74
|
74
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
75
|
75
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
76
|
76
277001072 Support direct.*support-steer. |
277001072 |
US $60.13 |
||
|
77
|
77
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
78
|
78
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
79
|
79
277000764 Poignee ajust. *handle-adjus.GTX 4-TEC LTD.; |
277000764 |
US $17.82 |
||
|
80
|
80
293800060 Loctite 243 *loctite-243GTX 4-TEC LTD.; |
293800060 |
US $31.18 |
||
|
81
|
81
234082600 Washer-flat din.9021b-a2GTX 4-TEC LTD.; |
234082600 |
US $31.10 |
||
|
82
|
82
232180600 T-jam hexagonal din.439b-a2GTX 4-TEC LTD.; |
232180600 |
US $23.75 |
||
|
83
|
83
293800005 Loctite 271 *loctite-271GTX 4-TEC LTD.; |
293800005 |
US $31.18 |
||
|
84
|
84
293800041 Appret loctite *primer-loctiteGTX 4-TEC LTD.; |
293800041 |
US $47.91 |
||
|
85
|
85
277000786
Douille d arret*bushing-stopper
GTX 4-TEC LTD.; |
277000786 |
— | ||
|
86
|
86
211000145 Screw-adjusterGTX 4-TEC LTD.; |
211000145 |
US $17.20 |
||
|
87
|
87
277000761 Bloc filete *blockGTX 4-TEC LTD.; |
277000761 |
US $6.07 |
||
|
88
|
88
277000901
Support direct.*support steer.
GTX 4-TEC LTD.; |
277000901 |
— | ||
|
89
|
89
277000762 Butee d arret *stopperGTX 4-TEC LTD.; |
277000762 |
US $14.67 |
||
|
91
|
91
277000763 Pivot filete *pivot-threadedGTX 4-TEC LTD.; |
277000763 |
US $28.31 |
||
|
92
|
92
250000004 Screw-socket hd.din.7984-a2 s.gripGTX 4-TEC LTD.; |
250000004 |
US $7.92 |
||
|
93
|
93
293800070 Loct.anti grip.*loct-antiseizeGTX 4-TEC LTD.; |
293800070 |
US $40.78 |
||
|
94
|
94
277000844 Douille d appui*bushing-supportGTX 4-TEC LTD.; |
277000844 |
US $27.29 |
||
|
95
|
95
234001600 Washer-flat din.125a-a2GTX 4-TEC LTD.; |
234001600 |
US $7.40 |
||
|
96
|
96
232100600 Nut-jam hexagonal din.439b-a2GTX 4-TEC LTD.; |
232100600 |
US $14.35 |
||
|
97
|
97
293750021 Attache collier*tie-clampGTX 4-TEC LTD.; |
293750021 |
US $156.50 |
||
|
98
|
98
293150008 Rivet-pop 3/16 *rivet-pop 3/16GTX 4-TEC LTD.; |
293150008 |
US $6.60 |
||
|
99
|
99
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
