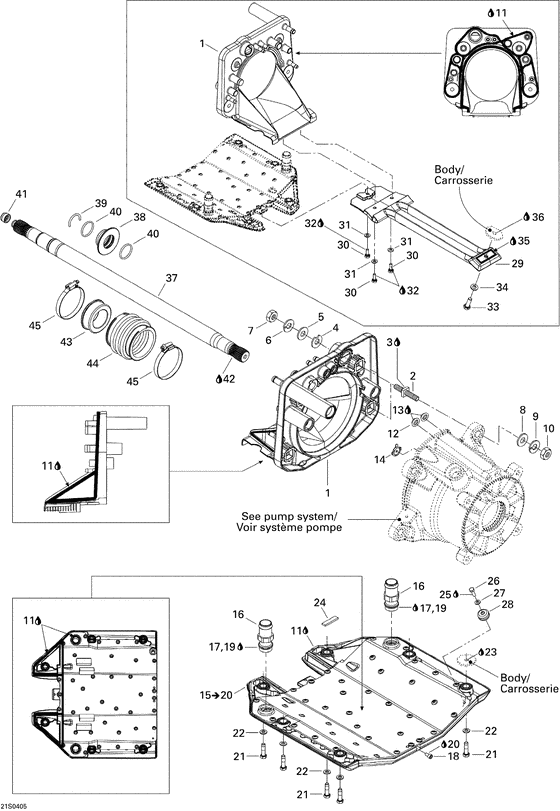

05- propulsion Diagram Bombardier GTX
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271001159
Support pompe *pump support
|
271001159 |
— | ||
|
2
|
2
250300010
Goujon carre *stud-square
|
250300010 |
— | ||
| replacement | |||||
|
2
|
2
250300022 Goujon carre *stud-square |
250300022 |
US $21.42 |
||
|
3
|
3
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
4
|
4
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
5
|
5
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
6
|
6
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
7
|
7
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
8
|
8
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
9
|
9
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
10
|
10
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
11
|
11
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
12
|
12
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
13
|
13
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
14
|
14
291001887 Reducteur *reducer |
291001887 |
US $15.73 |
||
|
15
|
15
271001491
Plaque *riding plate
Includes items 15 to 20; |
271001491 |
— | ||
| replacements | |||||
|
15
|
15
293300121 Joint torique *o-ringIncludes items 15 to 20; |
293300121 |
US $9.74 |
||
|
15
|
15
293710111 Raccord droit *fitting-straitIncludes items 15 to 20; |
293710111 |
US $7.09 |
||
|
15
|
15
271001557
Plaque *riding plate
Includes items 15 to 20; |
271001557 |
— | ||
|
16
|
16
293710087 Raccord droit *fitting-strait |
293710087 |
US $10.35 |
||
|
17
|
17
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
18
|
18
250500005 Plug-drain m6x12 din.912a2 ss-304 |
250500005 |
US $70.44 |
||
|
19
|
19
293800050 Loctite 577 *loctite-577 |
293800050 |
US $122.37 |
||
|
20
|
20
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
21
|
21
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
22
|
22
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
23
|
23
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
24
|
24
293250087 Joint etanche *gasket |
293250087 |
US $7.31 |
||
|
25
|
25
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
26
|
26
207362060 Screw-hex.cap din.933a2 s.grip |
207362060 |
US $19 |
||
|
27
|
27
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
28
|
28
271001487 Anode zinc *anode zinc |
271001487 |
US $13.21 |
||
|
29
|
29
271001459
Grille pompe *grate-pump
|
271001459 |
— | ||
|
30
|
30
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
31
|
31
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
32
|
32
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
33
|
33
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
34
|
34
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
35
|
35
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
36
|
36
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
37
|
37
271001449 Arbre transm. *shaft drive |
271001449 |
US $327.69 |
||
|
38
|
38
272000176
Bague supp.flot*support ring
|
272000176 |
— | ||
| replacement | |||||
|
38
|
38
295501200 CARBON RING KIT |
295501200 |
US $87.74 |
||
|
39
|
39
272000175
Pince en "c" *clip "c
|
272000175 |
— | ||
|
40
|
40
293300044 Joint torique *o-ring |
293300044 |
US $13.60 |
||
|
41
|
41
272000173 Bouchon *plug |
272000173 |
from US $9.57 |
||
|
42
|
42
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
43
|
43
272000177
Bague carbone *carbon ring
|
272000177 |
— | ||
|
44
|
44
272000183 Soufflet *bellow |
272000183 |
US $31.18 |
||
|
45
|
45
293650077 Bride serrage *clamp-norma |
293650077 |
US $9.45 |
||
