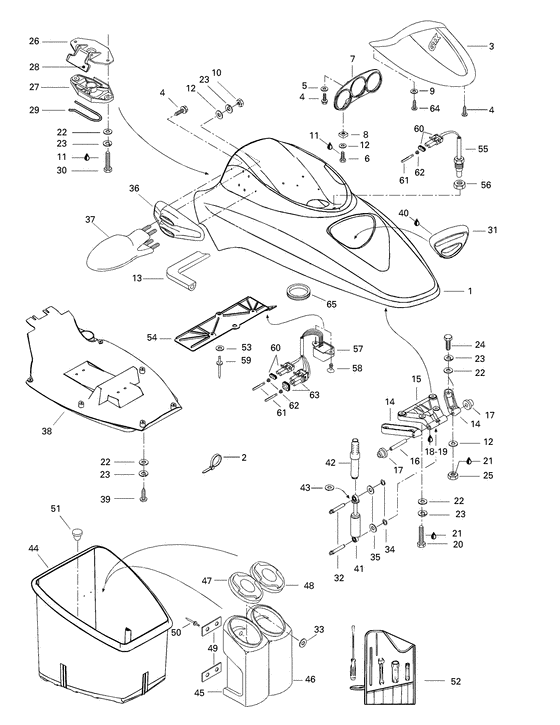

09- front storage compartment Diagram Bombardier GTX
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269700023111 Charniere ga. *hinge-lh. |
269700023111 |
US $41.77 |
||
|
|
269500282
Support (miroir) dr
|
269500282 |
— | ||
|
|
269500266
Mirror rh
|
269500266 |
— | ||
|
1
|
1
269500374
New Genuine Part
|
269500374 |
— | ||
|
2
|
2
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
3
|
3
269500303
Deflecteur vert*deflector-green
|
269500303 |
— | ||
|
4
|
4
211000033
Screw-pt.hex.flange k40 x 16
|
211000033 |
— | ||
| replacement | |||||
|
4
|
4
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
5
|
5
217041600
Washer-flat din.125a-a2
|
217041600 |
— | ||
| replacement | |||||
|
5
|
5
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
6
|
6
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
6
|
6
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
7
|
7
269500355
Tableau de bord*dashboard-assy
Includes 7 - 8.; |
269500355 |
— | ||
|
8
|
8
269500252 Logement ecrou *housing-nut as |
269500252 |
US $19.22 |
||
|
9
|
9
211200007 Washer-flat |
211200007 |
US $9.80 |
||
|
10
|
10
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
10
|
10
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
11
|
11
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
11
|
11
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
12
|
12
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
12
|
12
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
13
|
13
293250047 Anneau neoprene*seal-neoprene |
293250047 |
US $66.06 |
||
|
14
|
14
269700022111 Charniere dr. *hinge-rh. |
269700022111 |
US $41.77 |
||
|
15
|
15
269700038 Charniere couv.*hinge-cover |
269700038 |
US $91.58 |
||
|
16
|
16
269700024 Axe rotation *axle |
269700024 |
US $10.47 |
||
|
17
|
17
293350016 Coussinet *cushion |
293350016 |
US $27.20 |
||
|
18
|
18
293800039
Loctite 642 *loctite-642
|
293800039 |
— | ||
| replacement | |||||
|
18
|
18
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
19
|
19
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
20
|
20
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
20
|
20
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
21
|
21
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
21
|
21
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
22
|
22
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
22
|
22
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
23
|
23
217361500
Washer-lock helical din.127b-a2
|
217361500 |
— | ||
| replacement | |||||
|
23
|
23
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
24
|
24
215663560
Screw-hex.cap din.931a2
|
215663560 |
— | ||
| replacement | |||||
|
24
|
24
207063560 Screw-hex.cap din.931a2 |
207063560 |
US $14.35 |
||
|
25
|
25
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
25
|
25
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
26
|
26
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
26
|
26
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
27
|
27
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
27
|
27
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
28
|
28
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
28
|
28
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
29
|
29
269000017
Ressort *spring
|
269000017 |
— | ||
| replacement | |||||
|
29
|
29
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
30
|
30
210000005
Screw-hex.cap din.933a2
|
210000005 |
— | ||
| replacement | |||||
|
30
|
30
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
31
|
31
269500351
Grille noire *grill-black
|
269500351 |
— | ||
| replacement | |||||
|
31
|
31
269500694 Grille adm. *grill-adm. |
269500694 |
US $23.07 |
||
|
32
|
32
211400006 Pin short |
211400006 |
US $9.95 |
||
|
33
|
33
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
33
|
33
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
34
|
34
293370008 Circlip *circlip |
293370008 |
US $83.80 |
||
|
35
|
35
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
35
|
35
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
36
|
36
269500290
Support (miroir) ga
|
269500290 |
— | ||
|
37
|
37
269500265
Miroir ga
|
269500265 |
— | ||
|
38
|
38
269500390
Couv.bagage inf*cover-stor.low
|
269500390 |
— | ||
| replacement | |||||
|
38
|
38
269500660
Couv.bagage inf*cover-stor.low
|
269500660 |
— | ||
|
39
|
39
215861668
Screw-pan hd.ph.din.7985a-a2
|
215861668 |
— | ||
| replacement | |||||
|
39
|
39
208661660 Screw-pan hd.ph.din.7985a-a2 |
208661660 |
US $9.80 |
||
|
40
|
40
293530011
Scellant *sealant
|
293530011 |
— | ||
|
41
|
41
269500261 Amortisseur ass*shock-gaz assyIncludes 41 - 43.; |
269500261 |
US $135.54 |
||
|
42
|
42
291000919
Soufflet *bellow
|
291000919 |
— | ||
|
43
|
43
211200034
Washer-aluminum
|
211200034 |
— | ||
|
44
|
44
269500269
Coffre bag.av. *tray-front
|
269500269 |
— | ||
|
45
|
45
269500151
Boitier extinct*housing-exting
|
269500151 |
— | ||
| replacement | |||||
|
45
|
45
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
46
|
46
269500180
Boitier rang. *housing-storag
|
269500180 |
— | ||
| replacement | |||||
|
46
|
46
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
47
|
47
269500236
Cap extincteur *cap-extinguish
|
269500236 |
— | ||
| replacement | |||||
|
47
|
47
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
48
|
48
269500237
Capuchon rang. *cap-storage
|
269500237 |
— | ||
| replacement | |||||
|
48
|
48
269500604
Capuchon rang. *cap-storage
|
269500604 |
— | ||
|
49
|
49
293250037 Joint etanche *gasket |
293250037 |
US $31.30 |
||
|
50
|
50
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
51
|
51
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
52
|
52
295000066
Owner tool kit
|
295000066 |
— | ||
|
53
|
53
217051300
Washer-flat din.125a
|
217051300 |
— | ||
| replacement | |||||
|
53
|
53
234051500 Washer-flat din.125a |
234051500 |
US $9.90 |
||
|
54
|
54
278000857
Plaque montage *plate-mounting
|
278000857 |
— | ||
|
55
|
55
278000851
Capteur temp. *sensor-temp.
(Including 60,61,62); |
278000851 |
— | ||
|
56
|
56
211100031
New Genuine Part
|
211100031 |
— | ||
|
57
|
57
278001057
Boussole *compass
|
278001057 |
— | ||
| replacement | |||||
|
57
|
57
278001243
Boussole *compass
|
278001243 |
— | ||
|
58
|
58
293730016 Dard noir *dart-black |
293730016 |
US $51.60 |
||
|
59
|
59
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
60
|
60
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
61
|
61
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
62
|
62
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
63
|
63
278000891 Bloc 4 circ.mal*housing-tab |
278000891 |
US $13.21 |
||
|
64
|
64
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
65
|
65
570276900
Bague caout. *ring-rubber
|
570276900 |
— | ||
