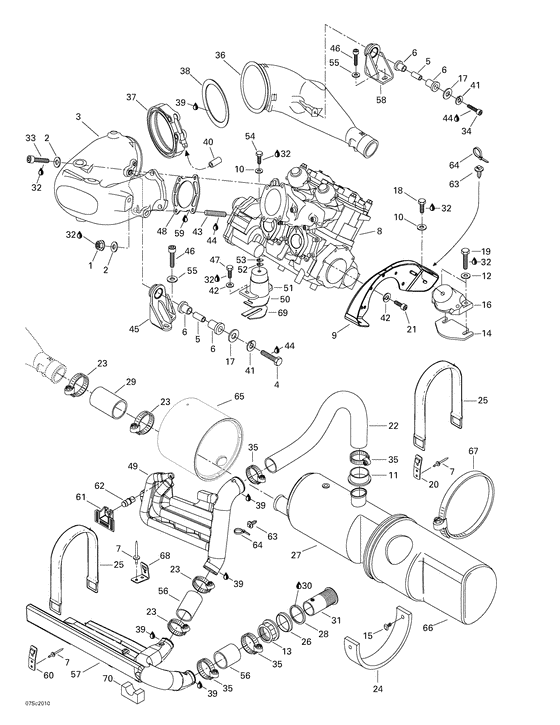

01- engine support and muffler Diagram Bombardier LRV
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204250049 Cale 1.3 mm |
204250049 |
US $4.05 |
||
|
|
270000123 Cale epaisseur *shim-1.3mm. |
270000123 |
US $58.30 |
||
|
1
|
1
233101600 Nut-flange hexagonal din.6923-a2 |
233101600 |
US $34.25 |
||
|
2
|
2
211200051 Rondelle *washer-flat |
211200051 |
US $21.60 |
||
|
3
|
3
274000768
Tuyau collect. *pipe-head
|
274000768 |
— | ||
| replacement | |||||
|
3
|
3
274000928
Tuyau collect. *pipe-head
|
274000928 |
— | ||
|
4
|
4
207004060 Screw-hex.cap din.931a2 |
207004060 |
US $19.45 |
||
|
5
|
5
274000656
Douille *bushing
|
274000656 |
— | ||
| replacement | |||||
|
5
|
5
274000861 Douille *bushing |
274000861 |
US $13.21 |
||
|
6
|
6
293830065
Douille caout. *bushing-rubber
|
293830065 |
— | ||
|
7
|
7
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
8
|
8
270000461
Rotax engine 947 (silver)
|
270000461 |
— | ||
|
9
|
9
270000359
Support moteur *support-engine
|
270000359 |
— | ||
|
10
|
10
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
11
|
11
274000766
Adap.boyau *adap-hose
|
274000766 |
— | ||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
274000224 Ecrou 72mm *nut-72mm |
274000224 |
US $16.61 |
||
|
14
|
14
270000122 Cale epaisseur *shim-0.3mm |
270000122 |
US $55.85 |
||
|
15
|
15
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
16
|
16
270000421
Tampon ancrage *mount-rubber
|
270000421 |
— | ||
|
17
|
17
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
18
|
18
207181660 Screw-hex.cap din.933a2 |
207181660 |
US $10.65 |
||
|
19
|
19
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
20
|
20
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
21
|
21
205582560 Screw-socket din.912a2 s.grip |
205582560 |
US $14.35 |
||
|
22
|
22
274000711 Boyau raccord *hose-exhaust |
274000711 |
US $103.99 |
||
|
23
|
23
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
24
|
24
293830055
Tampon caout. *pad-rubber
|
293830055 |
— | ||
|
25
|
25
293850021
Sangle retenue *strap-rubber
|
293850021 |
— | ||
| replacement | |||||
|
25
|
25
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
26
|
26
274000225 Rondelle stab. *washer-stabilizing |
274000225 |
US $9.13 |
||
|
27
|
27
274000749
Silenc.echapp. *muffler-noir
|
274000749 |
— | ||
|
28
|
28
293250041 Joint etanche *gasket |
293250041 |
US $55.85 |
||
|
29
|
29
274000530 Boyau raccord *hose-exhaust |
274000530 |
US $36.69 |
||
|
30
|
30
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
30
|
30
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
31
|
31
274000222 Sortie echapp. *outlet-exhaust |
274000222 |
US $30.57 |
||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
205003560
Screw-socket hd.din.912a2
|
205003560 |
— | ||
|
34
|
34
205004060 Screw-socket hd.din.912a2 |
205004060 |
US $19.45 |
||
|
35
|
35
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
36
|
36
274000658
Cone echapp. *cone-exhaust
|
274000658 |
— | ||
| replacement | |||||
|
36
|
36
274001108
Cone echapp. *cone-exhaust
|
274001108 |
— | ||
|
37
|
37
274000510 Bride serrage *clamp-exhaust |
274000510 |
US $85.65 |
||
|
38
|
38
274000511 Bague etanche *sealing ring |
274000511 |
US $31.59 |
||
|
39
|
39
413710300
Enduit etanche *sealant
|
413710300 |
— | ||
| replacement | |||||
|
39
|
39
293800090 Enduit etanche *sealant |
293800090 |
US $31.18 |
||
|
40
|
40
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
41
|
41
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
42
|
42
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
43
|
43
211300025
Stud-m10 x 55
|
211300025 |
— | ||
| replacement | |||||
|
43
|
43
250300008
Goujon m10x55 *stud-m10x55
|
250300008 |
— | ||
|
44
|
44
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
45
|
45
274000662
Supp.tuyau *supp-pipe
|
274000662 |
— | ||
| replacements | |||||
|
45
|
45
250200012 Washer-flat m8.4 |
250200012 |
US $7 |
||
|
45
|
45
274001109
Supp.tuyau *supp-pipe
|
274001109 |
— | ||
|
46
|
46
205582560 Screw-socket din.912a2 s.grip |
205582560 |
US $14.35 |
||
|
47
|
47
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
48
|
48
293250080
Joint etanche *gasket
|
293250080 |
— | ||
| replacement | |||||
|
48
|
48
295500815
Exhaust gasket kit
|
295500815 |
— | ||
|
49
|
49
274000655
Resonateur ga. *resonator-lh.
|
274000655 |
— | ||
|
50
|
50
270000122 Cale epaisseur *shim-0.3mm |
270000122 |
US $55.85 |
||
|
51
|
51
270000422
Tampon ancrage *mount-rubber
|
270000422 |
— | ||
|
52
|
52
270000024 Cale epaisseur *shim-0.4mm |
270000024 |
US $70.90 |
||
|
53
|
53
270000025 Cale epaisseur *shim-1.3mm |
270000025 |
US $35.45 |
||
|
54
|
54
207182060 Screw-hex.cap din.933a2 |
207182060 |
US $9.80 |
||
|
55
|
55
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
56
|
56
274000616
Boyau raccord *hose-exhaust
|
274000616 |
— | ||
|
57
|
57
274000484
Silenc.echapp. *muffler
|
274000484 |
— | ||
| replacements | |||||
|
57
|
57
295500682
Ens. resonateu*resonator kit
|
295500682 |
— | ||
|
57
|
57
295500683
Ens. resonateu*resonator kit
|
295500683 |
— | ||
|
58
|
58
274000666
Supp.tuyau *supp-pipe
|
274000666 |
— | ||
| replacements | |||||
|
58
|
58
250200012 Washer-flat m8.4 |
250200012 |
US $7 |
||
|
58
|
58
274000878
Supp.tuyau *supp-pipe
|
274000878 |
— | ||
|
59
|
59
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
60
|
60
293850030 Pince courroie *clip-strap |
293850030 |
US $12.22 |
||
|
61
|
61
291001352
Attache resona.*tie-resonator
|
291001352 |
— | ||
|
62
|
62
293830062 Tampon caout. *pad-rubber |
293830062 |
US $14.25 |
||
|
63
|
63
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
64
|
64
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
65
|
65
274000732
Muffler cover
|
274000732 |
— | ||
|
66
|
66
274000733
Couvre silenc. *cover-muffler
|
274000733 |
— | ||
| replacement | |||||
|
66
|
66
274000799
Couvre silenc. *cover-muffler
|
274000799 |
— | ||
|
67
|
67
293650092
Bride serrage *clamp-norma
|
293650092 |
— | ||
|
68
|
68
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
69
|
69
204250048 Cale epaisseur *shim-0.3mm |
204250048 |
US $55.85 |
||
|
70
|
70
204060190
Mousse supp.inf*foam support-lower
|
204060190 |
— | ||
