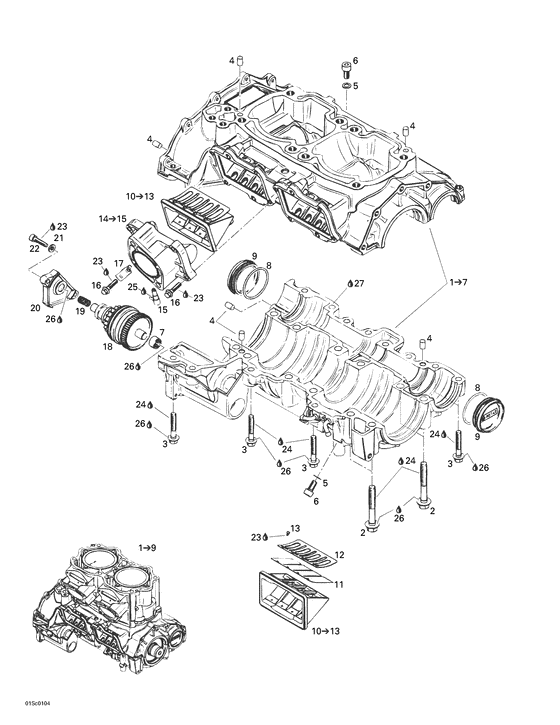

01- crankcase, rotary valve Diagram Bombardier LRV
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
290094703
Moteur 947 semi*block-short947
Includes 1 - 9.; |
290094703 |
— | ||
| replacement | |||||
|
1
|
1
421000562
Ens.carter-cyl.*short block 947
Includes 1 - 9.; |
421000562 |
— | ||
|
1
|
1
290887754
Carter moteur *crankcase-assy
Includes 1 - 7.; |
290887754 |
— | ||
| replacement | |||||
|
1
|
1
420887754 Carter moteur *crankcase-assyIncludes 1 - 7.; |
420887754 |
US $1,926.76 |
||
|
2
|
2
290941333
Vis hex.flasque*screw-hex.flan
|
290941333 |
— | ||
| replacement | |||||
|
2
|
2
420941333 Vis hex.flasque*screw-hex.flan |
420941333 |
US $20.77 |
||
|
3
|
3
290940638
Vis hex.flasque*screw-hex.flan
|
290940638 |
— | ||
| replacement | |||||
|
3
|
3
420940638 Vis hex.flasque*screw-hex.flan |
420940638 |
US $17.63 |
||
|
4
|
4
290632010
Goupille *pin-center
|
290632010 |
— | ||
| replacement | |||||
|
4
|
4
420632010 Goupille *pin-center |
420632010 |
US $5.17 |
||
|
5
|
5
420950141 Bague etanche *ring-sealing |
420950141 |
US $12.90 |
||
|
6
|
6
205081660 Screw-socket hd.din.912a2 |
205081660 |
US $10.65 |
||
|
7
|
7
290232480
Roulement aigui*bushing-needle
|
290232480 |
— | ||
| replacement | |||||
|
7
|
7
420232480
Roulement aigui*bushing-needle
|
420232480 |
— | ||
|
8
|
8
290230300
Joint torique *o-ring
|
290230300 |
— | ||
| replacement | |||||
|
8
|
8
420230300 Joint torique *o-ring |
420230300 |
US $8.13 |
||
|
9
|
9
290811200
Couvercle *cover
|
290811200 |
— | ||
| replacement | |||||
|
9
|
9
420811200 Couvercle *cover |
420811200 |
US $17.29 |
||
|
10
|
10
290924602
Soupape clapets*valve-reed ass
Includes 10 - 13.; |
290924602 |
— | ||
| replacement | |||||
|
10
|
10
420924602
Reed valve assembly
Includes 10 - 13.; |
420924602 |
— | ||
|
11
|
11
290924612
Clapet *reed-pedal
|
290924612 |
— | ||
| replacement | |||||
|
11
|
11
420924612 Clapet *reed-pedal |
420924612 |
US $42.81 |
||
|
12
|
12
290924617
Arret de clapet*stop-reed pedal
|
290924617 |
— | ||
| replacement | |||||
|
12
|
12
420924617 Arret de clapet*stop-reed pedal |
420924617 |
US $13.48 |
||
|
13
|
13
420941215 Screw-oval head m3x5 |
420941215 |
US $21.90 |
||
|
14
|
14
290867833
Adap.carb *adap-carb.
Includes 14 - 15.; |
290867833 |
— | ||
| replacement | |||||
|
14
|
14
420867833 Adap.carb *adap-carb.Includes 14 - 15.; |
420867833 |
US $88.69 |
||
|
15
|
15
420956510 Soupape retenue*valve-check |
420956510 |
from US $32.61 |
||
|
16
|
16
290240033
Screw-hex.flange din.6921
|
290240033 |
— | ||
| replacement | |||||
|
16
|
16
420240033 Flange din.6921 |
420240033 |
US $7.09 |
||
|
17
|
17
290953330
Attache fils *support-wire
|
290953330 |
— | ||
| replacement | |||||
|
17
|
17
420953330
Attache fils *support-wire
|
420953330 |
— | ||
|
18
|
18
290888042
Lanceur demarr.*drive-starter
|
290888042 |
— | ||
| replacement | |||||
|
18
|
18
420888042 Drive-starter |
420888042 |
US $372.27 |
||
|
19
|
19
290938204
Ressort *spring
|
290938204 |
— | ||
| replacement | |||||
|
19
|
19
420938204 Ressort *spring |
420938204 |
US $9.35 |
||
|
20
|
20
290811210
Couvercle lanc.*cover-drive st
|
290811210 |
— | ||
| replacement | |||||
|
20
|
20
420811210 Couvercle lanc.*cover-drive st |
420811210 |
US $31.16 |
||
|
21
|
21
420845020 Rondelle ressor*washer-spring |
420845020 |
US $10.70 |
||
|
22
|
22
420840401 Screw-allen m6x22 din.912 |
420840401 |
US $19.20 |
||
|
23
|
23
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
24
|
24
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
25
|
25
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
26
|
26
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
27
|
27
293800081 Loctite 5910 *loctite-5910 |
293800081 |
US $90.68 |
||
|
28
|
28
290889150
Ens.joint etanc*set-gasket
|
290889150 |
— | ||
| replacement | |||||
|
28
|
28
420889150 Set-gasket |
420889150 |
US $195.81 |
||
|
29
|
29
290889155
Ens.joint cyl. *set-gasket cyl
|
290889155 |
— | ||
| replacement | |||||
|
29
|
29
420889155 Set-gasket cyl |
420889155 |
US $97.89 |
||
