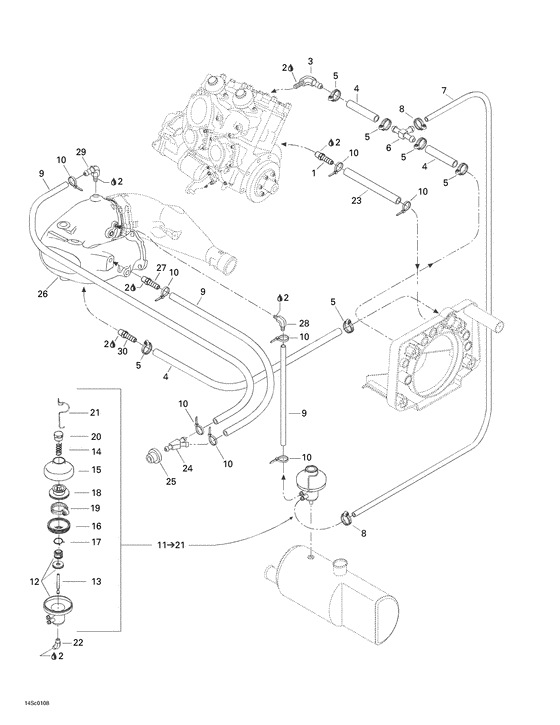

01- cooling system Diagram Bombardier RX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293710066 Raccord male *connector-male |
293710066 |
US $17.29 |
||
|
2
|
2
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
3
|
3
293700023 Raccord coude90*fitting-elbow |
293700023 |
US $21.42 |
||
|
4
|
4
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
4
|
4
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
5
|
5
293650037
Bride serrage *clamp-tridon
|
293650037 |
— | ||
| replacement | |||||
|
5
|
5
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
6
|
6
293710025
Raccord en t *fitting-t
|
293710025 |
— | ||
|
7
|
7
275500345
Boyau 8mm. *hose-8mm.
|
275500345 |
— | ||
| replacement | |||||
|
7
|
7
275500626 Boyau 5/16" *hose-5/16 |
275500626 |
US $48.72 |
||
|
8
|
8
293650027
Bride serrage *clamp-tridon
|
293650027 |
— | ||
| replacement | |||||
|
8
|
8
293650171 Bride serrage *hose clamp |
293650171 |
US $20.50 |
||
|
9
|
9
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
10
|
10
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
11
|
11
274000865
Regulateur pres*reg-pression
Includes 11 - 21.; |
274000865 |
— | ||
|
13
|
13
274000423 Tige de debit *rod-feeding |
274000423 |
US $50.97 |
||
|
14
|
14
274000382
Ressort 44mm *spring-44mm
|
274000382 |
— | ||
|
15
|
15
420911552 Couvercle soup.*cover-valve |
420911552 |
US $42.87 |
||
|
16
|
16
420260721 Manchon *bellows |
420260721 |
US $57.51 |
||
|
17
|
17
420838190 Bride *clamp |
420838190 |
US $29.15 |
||
|
18
|
18
420854440 New Genuine Part |
420854440 |
US $26.49 |
||
|
19
|
19
293650065 Bride serrage *clamp |
293650065 |
US $35.34 |
||
|
20
|
20
420241221 Vis ajustement *screw-adjuster |
420241221 |
US $12.19 |
||
|
21
|
21
290838083
Pince a ressort*clip-spring
|
290838083 |
— | ||
| replacement | |||||
|
21
|
21
420838083 Pince a ressort*clip-spring |
420838083 |
US $17.74 |
||
|
22
|
22
293700033 Raccord male *connector-male |
293700033 |
US $16.29 |
||
|
23
|
23
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
24
|
24
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
25
|
25
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
26
|
26
274000928
Tuyau collect. *pipe-head
|
274000928 |
— | ||
|
27
|
27
293710037 Raccord male *connector-male |
293710037 |
US $10.17 |
||
|
28
|
28
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
29
|
29
293710048
Raccord coude90*fitting-elbow
|
293710048 |
— | ||
|
30
|
30
293710021 Raccord male *connector-male |
293710021 |
US $13.21 |
||
